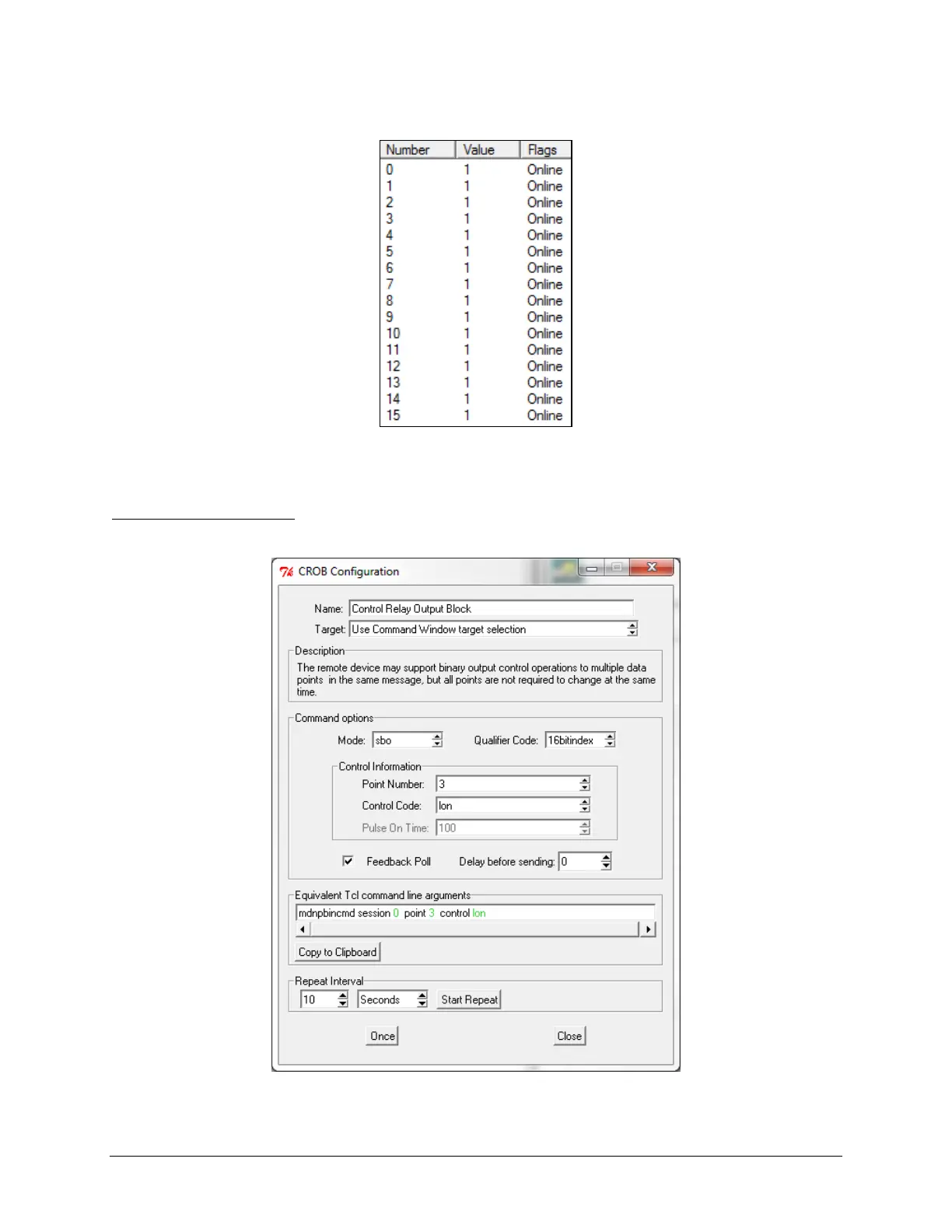

The information in the data window will display the associated values:
Reference the DNP3 mapping at the end of the section. The information includes the enable disable state for each
temperature sensing channel. Here all shown as 1 (Enabled). For systems that do not have 16 channels, the
associated Flag will indicate Offline.
To Enable/Disable a channel:
1. Run the Control Relay Output Block command.
Control Relay Output Block screen
