User Manual Modbus Protocol Testing • 85

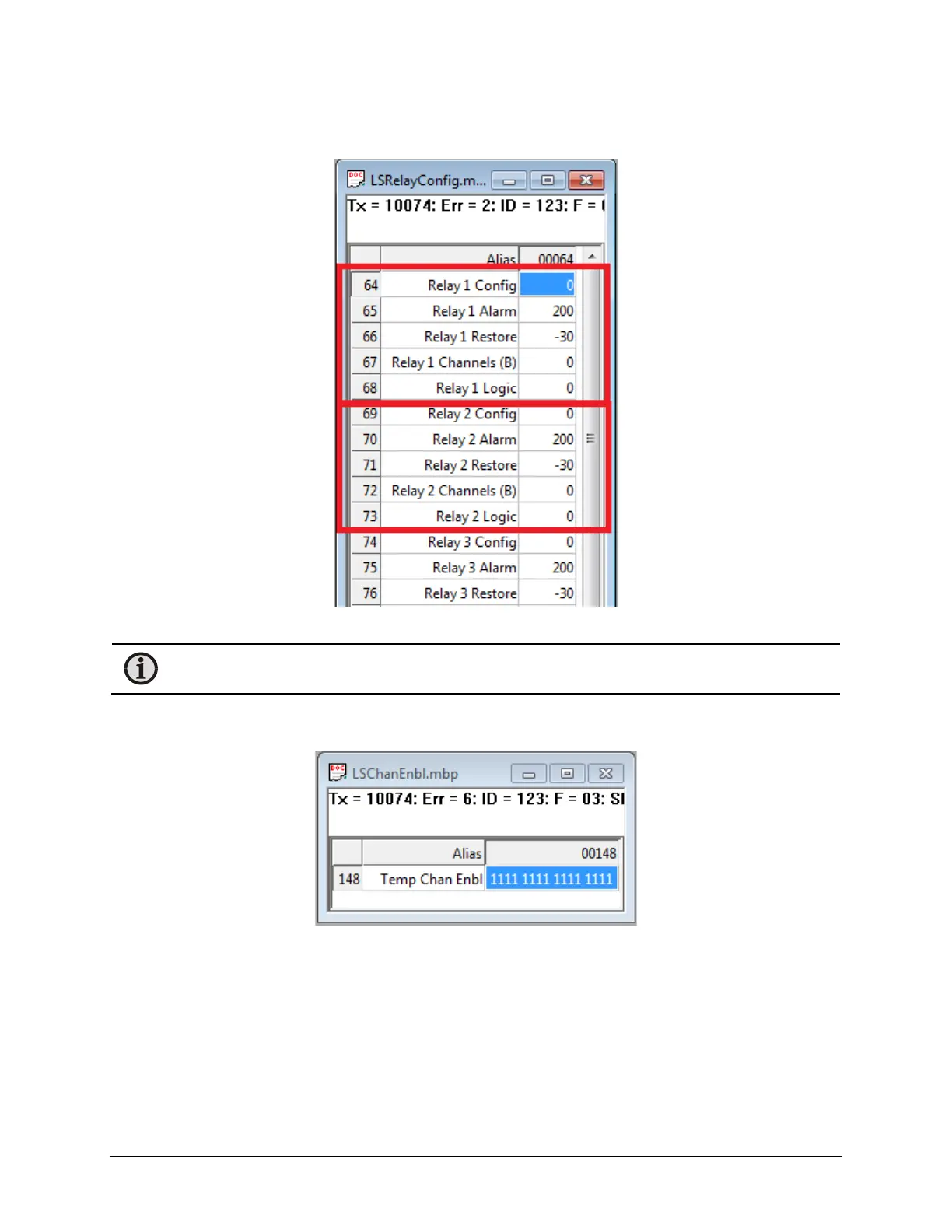

3. Monitoring/Control of the Relay Control/Configuration settings are contained in 80 consecutive registers
starting at register 64, as (partially) show below:
Relay Setup
Note: All fields are 16 bits. All are treated as Signed Int 16, EXCEPT Relay x Channels (B) which is a bit
mapped to the selection of the input temperature channels for the relay.
4. Monitoring/Control of Temperature Probe Enable/Disable. All channels are represented in a single 16 bit
mapped field.
Channel Setup
