Sealing Compound (C206)
(7). Apply sealing compound (C206) to bolts
(Ref. CSP-SPM).
(8). Install fuel vent hose (7) on float/rol
lover valve (8). Secure vent hose with
lockwire (C702).
(9). Install cabin floor panels AR155 and
AL230 (Ref. Section 53-20-00).(Ref.
Section 53-20-00).
(10). Perform fuel cell leak check/pressure
test (Ref. Section 28-00-00).
(11). Install carpet, if applicable (Ref. Section
25-20-00).
(12). Install cabin seats, if applicable (Ref.
Section 25-20-00).
(13). Fuel helicopter (Ref. Section 12-00-00).
1
2
3
4
5
6
7
8
9
9
2
1
3
5
6
8
RIGHT-HAND FWD LEFT-HAND AFT
7
9G28-019
1. BOLT
2. WASHER
3. ELECTRICAL BONDING JUMPER
4. PLUG
5. BOLT
6. WASHER
7. VENT HOSE
8. SINGLE PORT FUEL VENT FLOAT/ROLLOVER VALVE
9. O−RING

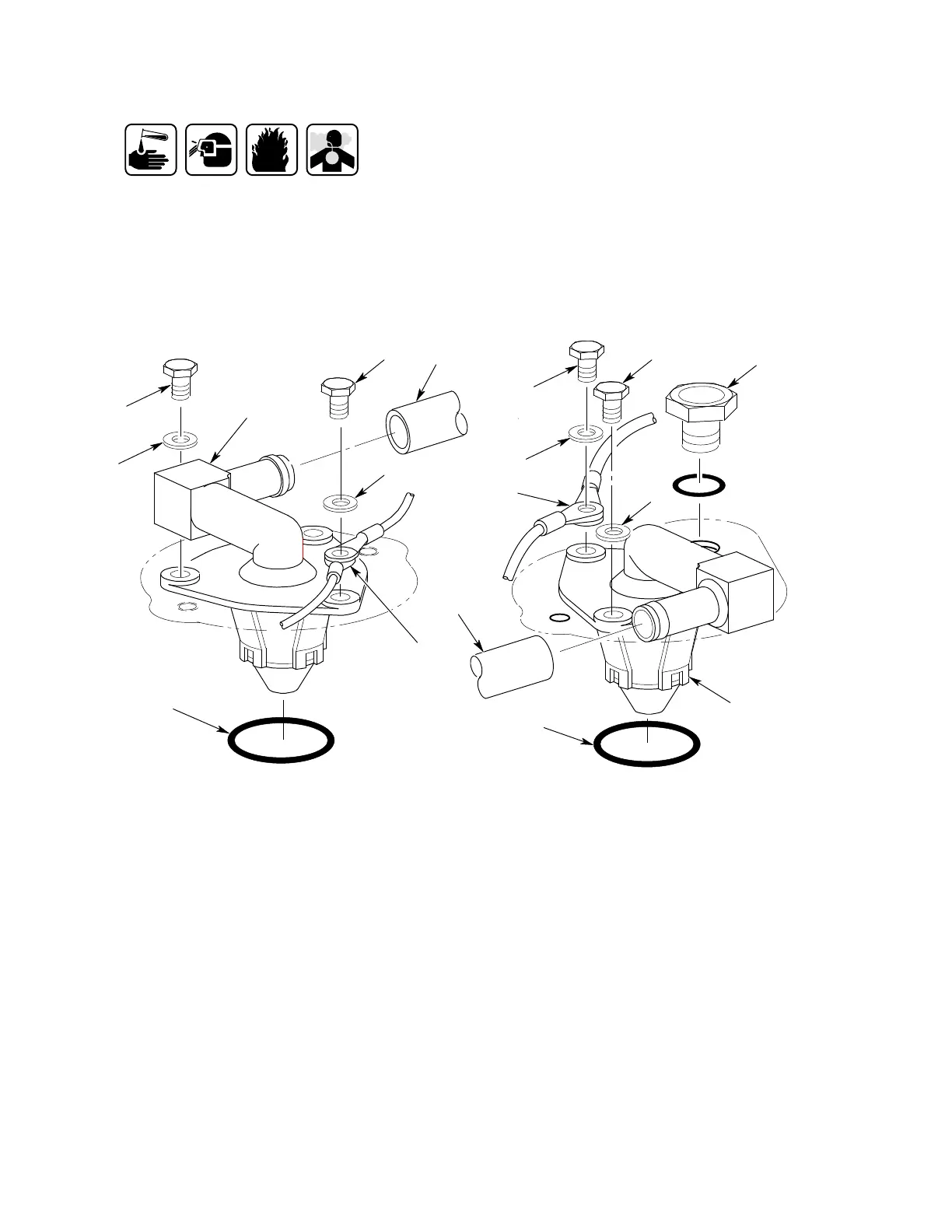

Figure 409. Single Port Fuel Vent Float/Rollover Valves
