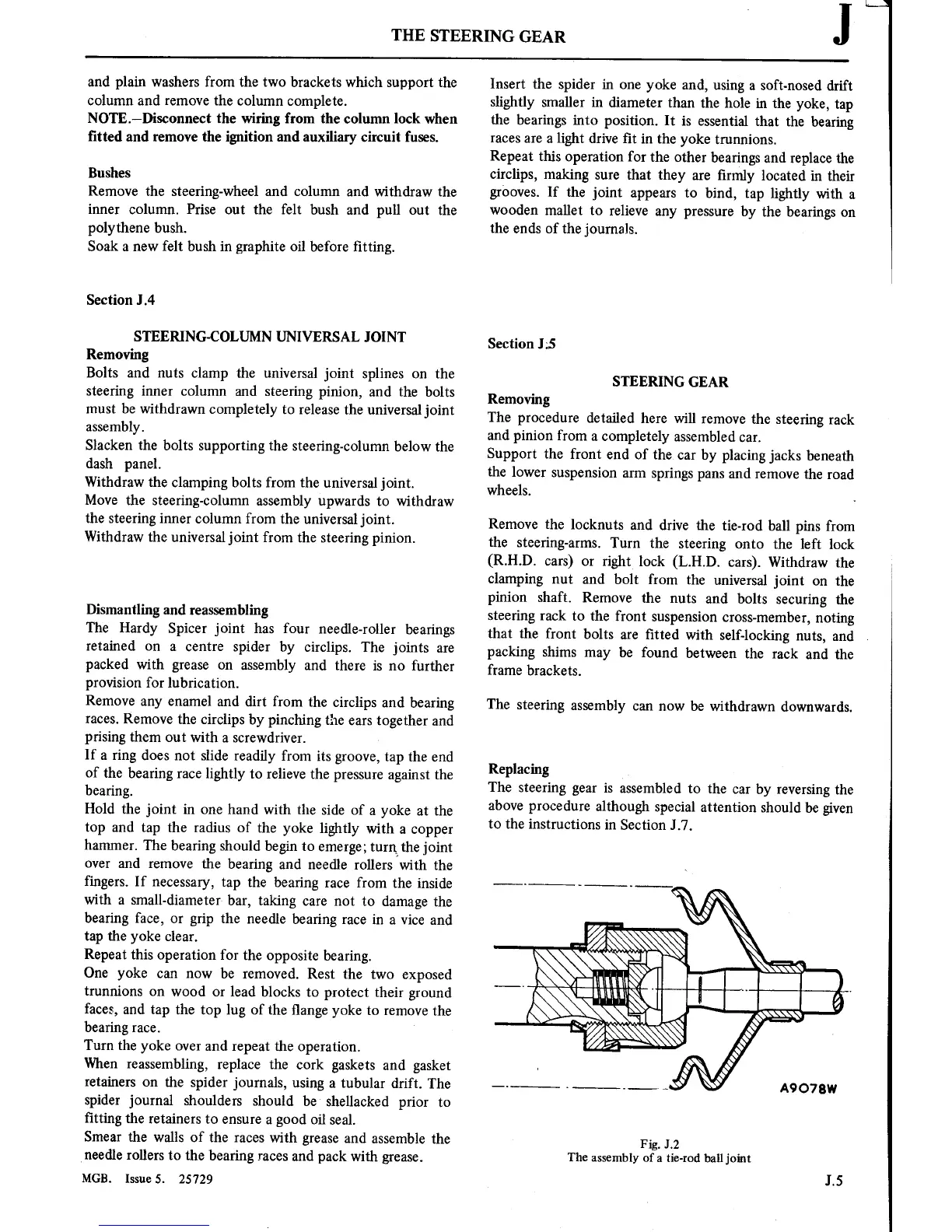

THE

STEERING

GEAR

J

and

plain washers from the

two

brackets which

support

the

column and

remove

the

column

complete.

NOTE—Disconnect

the

wiring

from

the column lock

when

■tted and

remove

the

ignition

and

auxiliary

circuit

fuses.

Bushes

Remove

the steering-wheel

and column

and

withdraw

the

inner

column. Prise

out

the felt

bush and pull

out

the

polythene

bush.

Soak

a

new

felt bush

in

graphite

oil before ■tting.

Section

I .4

STEERING-COLUMN

UNIVERSAL

JOINT

Removing

Bolts

and

nuts

clamp the

universal

joint

splines

on

the

steering inner

column and

steering pinion,

and the

bolts

must

be

withdrawn

completely

to

release the

universal

joint

assembly.

Slacken

the bolts

supporting

the

steering-column

below the

dash panel.

Withdraw the

clamping

bolts from the

universal

joint.

Move the

steering-column

assembly upwards

to

withdraw

the

steering

inner

column from

the

universal

joint.

Withdraw

the

universal

joint

from the

steering pinion.

Dismantling

and reassembling

The

Hardy

Spicer

joint

has four

needle-roller

bearings

retained

on a

centre

spider by

circlips. The

joints

are

packed with

grease

on

assembly

and there

is

no

further

provision

for

lubrication.

Remove

any

enamel

and dirt from

the

circlips

and bearing

races.

Remove the

circlips by

pinching the

ears

together

and

prising

them

out

with

a

screwdriver.

If

a

ring

does

not

slide

readily from

its

groove,

tap

the

end

of the

bearing

race

lightly

to

relieve the

pressure

against

the

bearing.

Hold the

joint

in

one

hand

with the

side of

a

yoke

at

the

top

and

tap

the

radius of the

yoke

lightly with

a copper

hammer.

The

bearing

should begin

to

emerge;

tum)

the

joint

over

and

remove

the

bearing

and needle

rollers

with the

fingers.

If

necessary,

tap

the

bearing

race

from

the

inside

with

a

small-diameter

bar,

taking

care

not to

damage

the

bearing face,

or

grip

the

needle bearing

race

in

a

vice

and

tap

the

yoke clear.

Repeat this

operation

for

the

opposite

bearing.

One

yoke

can now

be

removed.

Rest the

two

exposed

trunnions

on

wood

or

lead

blocks

to protect

their

ground

faces,

and

tap

the

top

lug of the

■ange

yoke

to

remove

the

bearing

race.

Turn

the

yoke

over

and

repeat

the

operation.

When

reassembling,

replace the

cork gaskets

and

gasket

retainers

on

the

spider

journals,

using

a

tubular

drift.

The

spider

journal

shoulders

should be

shellacked

prior

to

■tting

the

retainers

to

ensure

a

good oil seal.

Smear

the

walls of the

races

with

grease

and

assemble the

needle

rollers

to

the bearing

races

and

pack with

grease.

MGB.

Issue

5. 25729

Insert the

spider

in

one

yoke

and,

using

a

soft-nosed

drift

slightly

smaller

in

diameter

than the

hole

in

the

yoke,

tap

the

bearings

into

position. It

is essential that the

bearing

races

are a

light

drive ■t

in

the

yoke

trunnions.

Repeat this

operation

for

the other

bearings

and

replace the

circlips,

making

sure

that they

are

■rmly

located

in

their

grOoves.

If the

joint

appears

to

bind,

tap

lightly

with

a

wooden mallet

to

relieve

any

pressure

by

the bearings

on

the

ends of the

journals.

Section

I ;5

STEERING

GEAR

Removing

The

procedure

detailed here

will

remove

the

steering rack

and

pinion

from

a

completely

assembled

car.

Support

the front

end of

the

car

by placing

jacks beneath

the

lower

suspension

arm

springs

pans

and

remove

the

road

wheels.

Remove

the

locknuts

and drive

the

tie-rod ball

pins

from

the

steering-arms.

Turn the

steering

onto

the

left

lock

(R.H.D.

cars)

or

right

lock

(L.H.D.

cars).

Withdraw

the

clamping

nut

and bolt

from

the

universal

joint

on

the

pinion

shaft.

Remove the

nuts

and bolts

securing

the

steering

rack

to

the

front

suspension

cross-member,

noting

that

the front

bolts

are

■tted

with self-locking

nuts,

and

packing

shims

may

be found

between

the

rack

and

the

frame

brackets.

The

steering assembly

can

now

be withdrawn

downwards.

Replacing

V

The

steering

gear

is

assembled

to

the

car

by

reversing

the

above

procedure

although

special

attention

should

be

given

to

the

instructions

in

Section

I

.7.

A9 O7BW

Fig. J

.2

The

assemblyof

a

tie-rod

ball joint

1.5
