G
THE PROPELLER
SHAFT

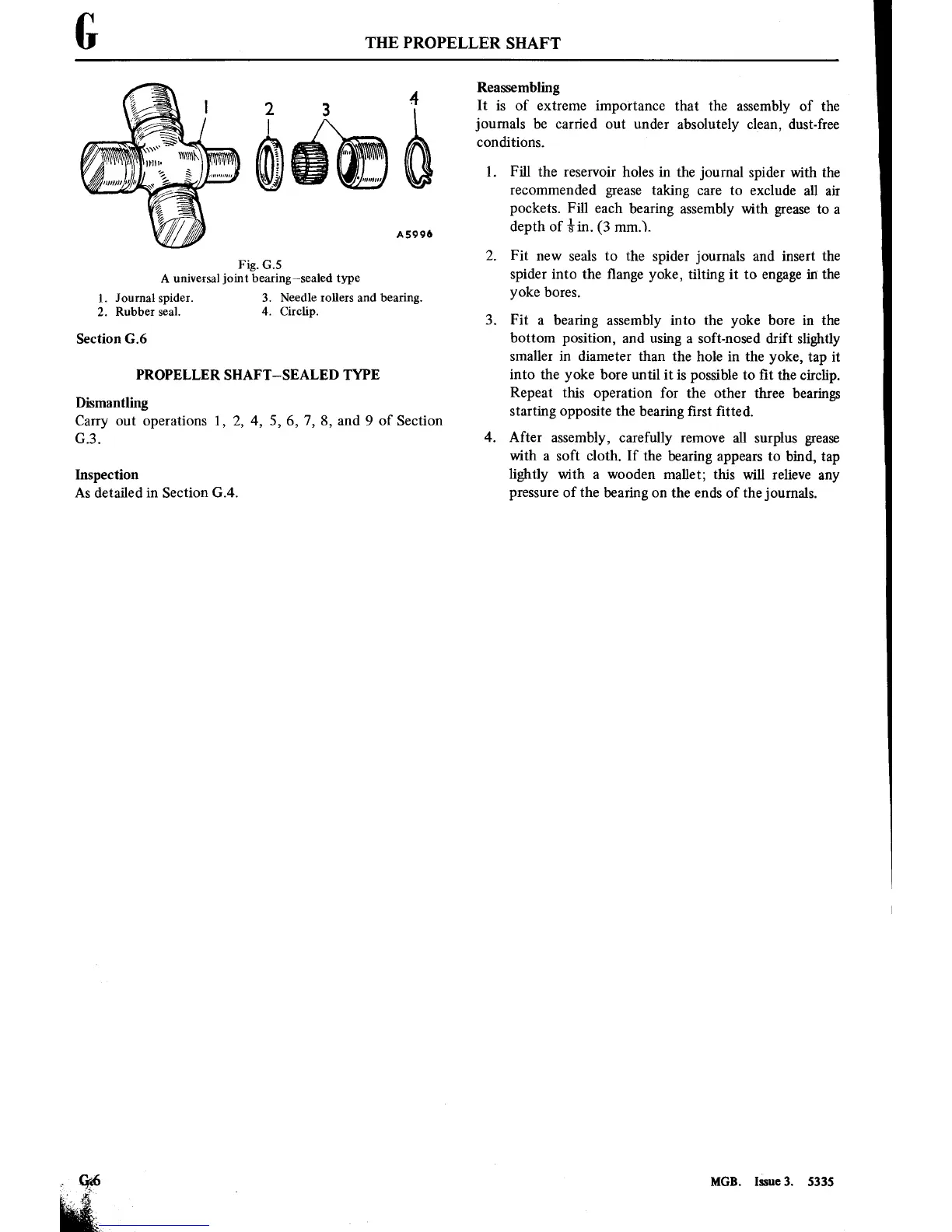

Fig. G.5
A
universaljoint bearingesealed
type
3.
Needle rollers and bearing.
4. Circlip.
1.
Journal spider.
2. Rubber seal.
Section
G.6
PROPELLER SHAFT—SEALED TYPE
Dismantling
Carry
out
operations 1,
2, 4,
5, 6, 7, 8, and
9
of
Section
G.3.
Inspection
As
detailed
in
Section
G.4.
Reassembling
It
is
of
extreme
importance
that the
assembly of the
journals
be carried
out
under absolutely clean, dust-free
conditions.
1.
Fill
the
reservoir
holes
in
the
journal spider with the
recommended
grease
taking
care
to
exclude all
air
pockets. Fill each
bearing assembly with
grease
to
a
depth of
%in.
(3 mm).
Fit
new
seals
to
the
spider journals
and
insert
the
spider
into
the ange yoke,
tilting
it
to
engage
in‘
the
yoke
bores.
Fit
a
bearing assembly
into
the yoke bore
in
the
bottom
position,
and
using
a
soft-nosed drift slightly
smaller
in
diameter
than the hole
in
the
yoke,
tap
it
into
the
yoke bore until
it is
possible
to
t
the circlip.
Repeat this
operation
for
the other three
bearings
starting opposite
the
bearing rst tted.
After
assembly, carefully
remove
all surplus
grease
with
a
soft cloth.
If the
bearing
appears
to
bind,
tap
lightly with
a
wooden mallet; this
will
relieve
any
pressure
of the
bearing
on
the ends of the
journals.
MGB.
Issue
3.
5335
