MG MGB User Manual

THE
ELECTRICAL
SYSTEM
Clip
.
Fascia
.
Instrument
housing
.
Illumination
ring
.
Cigar lighter
m4;ri
Refitting
Light
switch
30.
Reverse the
procedure
in
1
to
5.
Ignition
starter
switch and
steering lock
31. Centralize
the lock body
over
the slot
in
the
outer
b.
column
and fit
the clamp plate,
but
do
not
shear the
bolt heads.
32.
Re■t
the
ignition
starter
switch and
reconnect
the
multi-connector
plug. Check that the
steering lock and
switch
operate
correctly.
33. Tighten
the
new
shear bolts
until
the
heads break off.
34. Reverse the
procedure
in
6
to
8.
Fascia
switches
35.
Reverse the procedure
in
13
to
15.
Panel
lamp rheostat switch
36. Reverse the procedure
in
16
to
19.
MGB.
Issue1.
91427

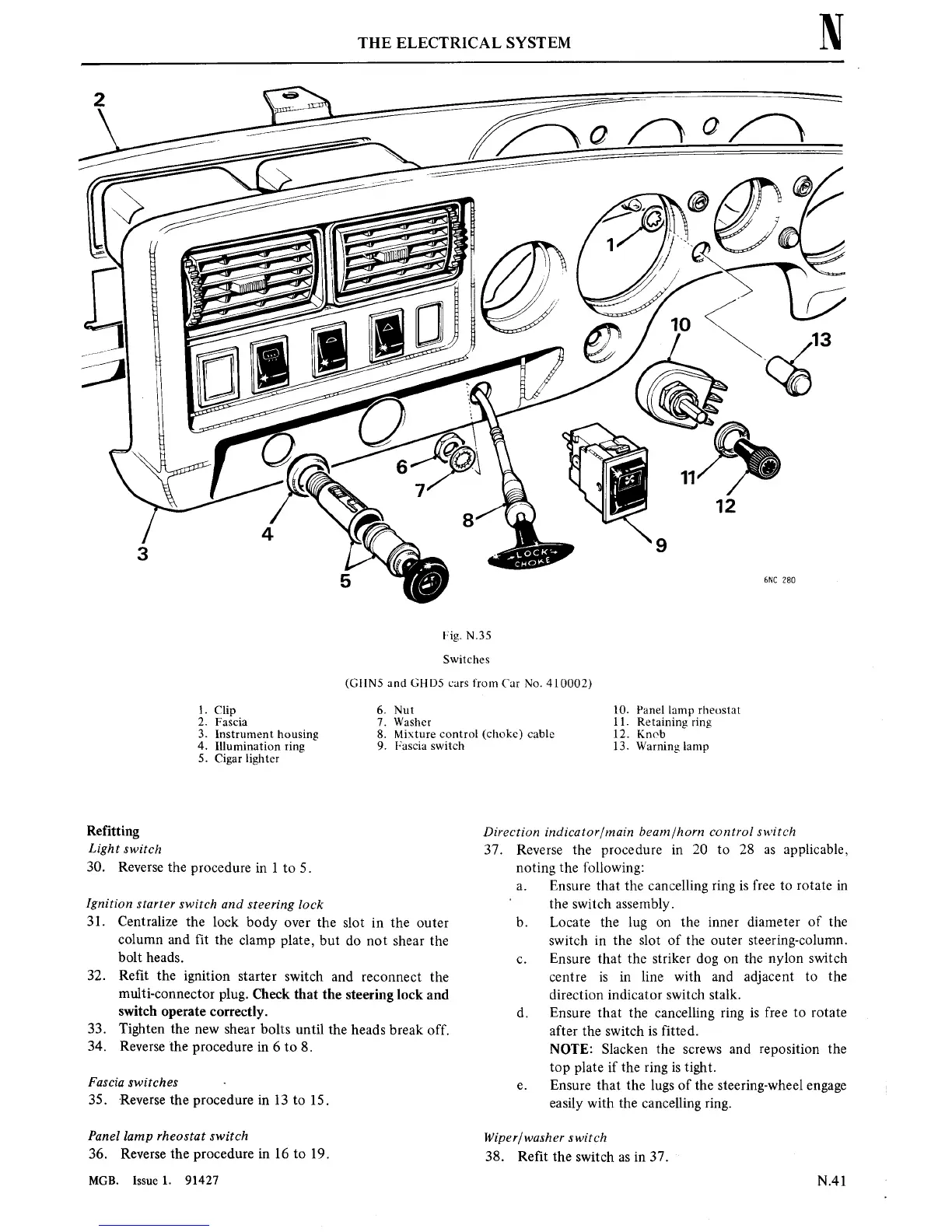

Fig.
N.35
Switches
(GIINS
and
GHDS
cars
from
Car No.
410002)
6.
Nut
10.
7.
Washer
11.
8.
Mixture
control
(choke)
cable
12.
9.
Fascia
switch
13.
Panel
lamp rheostat
Retaining ring
Knob
Warning
lamp
Direction
indicator/main beam/horn control switch
37. Reverse the procedure
in
20
to
28
as
applicable,
noting
the
following:
3.
Ensure that the
cancelling
ring
is
free
to
rotate
in
the switch
assembly.
Locate the lug
on
the
inner
diameter
of
the
switch
in
the slot
of
the
outer
steering-column.
c.
Ensure that the
striker
dog
on
the
nylon
switch
centre
is in
line with and adjacent
to
the
direction indicator switch stalk.
(1. Ensure that
the
cancelling
ring is
free
to rotate
after
the switch
is
fitted.
NOTE:
Slacken the
screws
and
reposition
the
top
plate if
the
ring is
tight.
e.
Ensure that the
lugs of
the
steering—wheel
engage
easily with the
cancelling
ring.
Wiper/
washer switch
38. Re■t
the
switch
as
in
37.
N41
