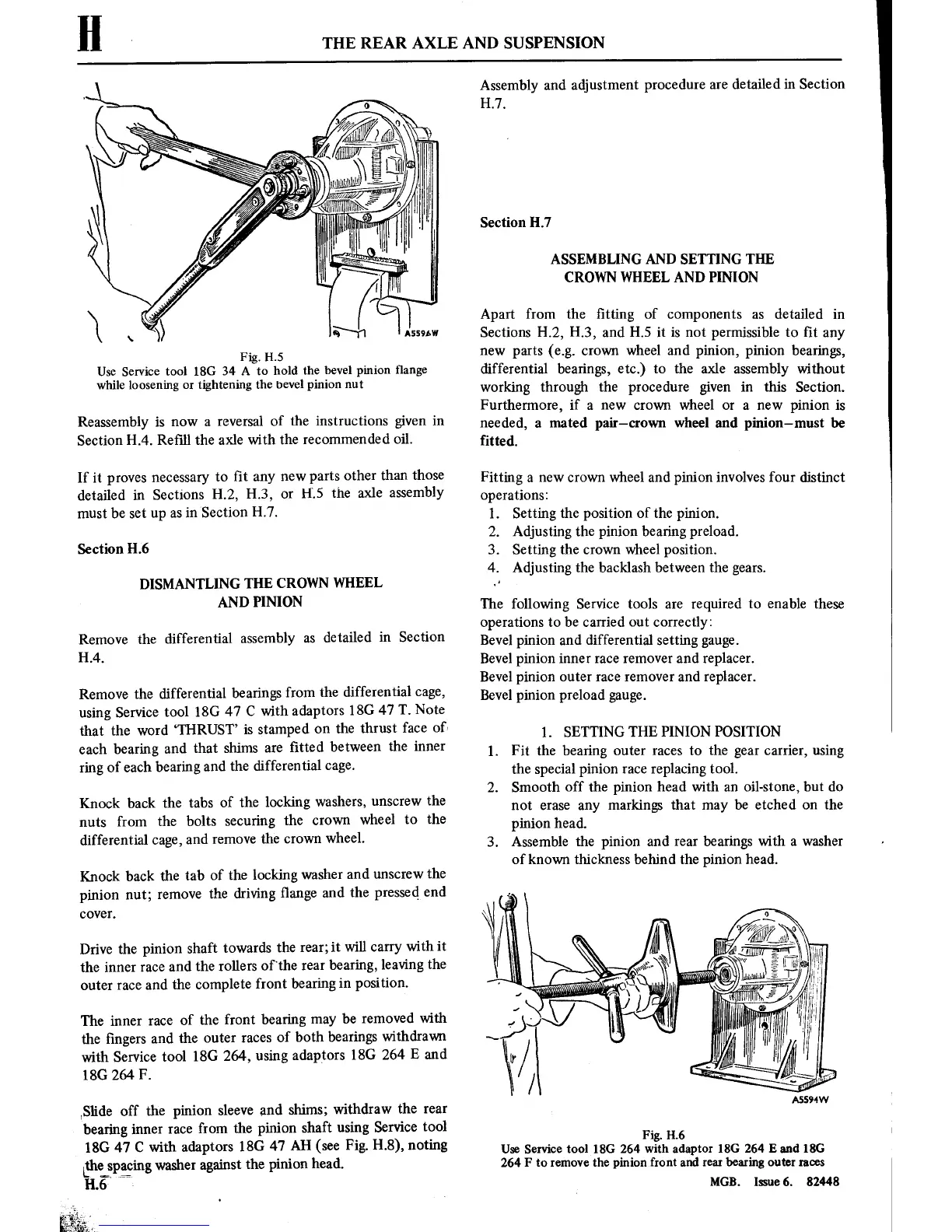

H
'
THE REAR
AXLE AND SUSPENSION
Fig.
H.5
Use Service
tool
18G 34
A
to
hold the
bevel pinion
ange
while loosening
or
tightening the
bevel
pinion
nut
Reassembly
is
now a
reversal
of
the
instructions
given in
Section
H.4.
Rell the axle
with the
recommended oil.
If
it
proves
necessary
to
t
any
new
parts
other
than
those
detailed
in
Sections
H.2,
H3,
or
11.5
the axle
assembly
must
be
set
up as
in
Section
H.7.
Section
H.6
DISMANTLING
THE
CROWN WHEEL
AND
PINION
Remove
the
differential
assembly
as
detailed
in
Section
H.4.
Remove
the
differential bearings
from
the
differential
cage,
using
Service
tool 180 47
C
with adaptors
18G 47 T.
Note
that
the
word
‘THRUST’
is
stamped
on
the
thrust
face
of:
each
bearing
and that
shims
are
tted between
the
inner
ring
of
each bearing
and the
differential
cage.
Knock
back
the tabs
of the
locking
washers,
unscrew
the
nuts
from
the bolts securing
the
crown
wheel
to
the
differential
cage,
and
remove
the
crown
wheel.
Knock
back
the
tab
of the
locking
washer
and
unscrew
the
pinion
nut;
remove
the
driving
ange
and
the
pressed end
cover.
Drive
the
pinion
shaft
towards
the
rear;
it
will
carry
with
it
the
inner
race
and the
rollers
of
‘the
rear
bearing,
leaving
the
outer
race
and the
complete
front bearing in position.
The
inner
race
of the
front hearing
may
be
removed
with
the
ngers
and
the
outer
races
of both bearings
withdrawn
with
Service
tool
180 264,
using
adaptors
18G 264
E
and
18G 264
F.
Slide
off the pinion
sleeve
and
shims;
withdraw
the
rear
bearing
inner
race
from
the
pinion
shaft
using
Service
tool
18G
47
C
with adaptors
18G 47
AH
(see Fig.
H.8),
noting
[thetspgzing
washer
against
the
pinion
head.
[-1.6
-
l
Assembly
and adjustment
procedure
are
detailed
in
Section
H.7.
Section
H.7
ASSEMBLING AND SETTING THE
CROWN WHEEL AND PINION
Apart
from the tting of
components
as
detailed
in
Sections
H2, H3, and H5
it is
not
permissible
to
t
any
new
parts
(e.g.
crown
wheel and
pinion, pinion
bearings,
differential bearings,
etc.)
to
the axle assembly without
working
through the
procedure
given in
this
Section.
Furthermore, if
a
new
crown
wheel
or a new
pinion is
needed,
a
mated
pair—crown
wheel and
pinion—must be
fitted.
Fitting
a new
crown
wheel and
pinion
involves four
distinct
operations:
1.
Setting
the
position
of the
pinion.
2
Adjusting
the
pinion
bearing
preload.
3.
Setting
the
crown
wheel
position.
4
Adjusting the backlash between
the
gears.
The
following Service
tools
are
required
to
enable these
operations
to
be carried
out
correctly:
Bevel
pinion
and differential
setting
gauge.
Bevel
pinion inner
race remover
and
replacer.
Bevel
pinion
outer
race remover
and
replacer.
Bevel
pinion
preload
gauge.
1.
SETTING
THE PINION POSITION
1.
Fit the bearing
outer
races
to
the
gear
carrier, using
the special
pinion
race
replacing tool.
2.
Smooth
off the
pinion
head with
an
oil-stone, but do
not
erase any
markings that
may
be
etched
on
the
pinion
head.
3.
Assemble the
pinion
and
rear
bearings
with
a
washer
of known thickness behind the
pinion
head.
Fig.
11.6
Use Service
tool 18G 264 with adaptor
186 264 E and
18G
264
F
to
remove
the pinion front
and
rear
bearing
outer
races
MGB.
Issue
6.
82448
