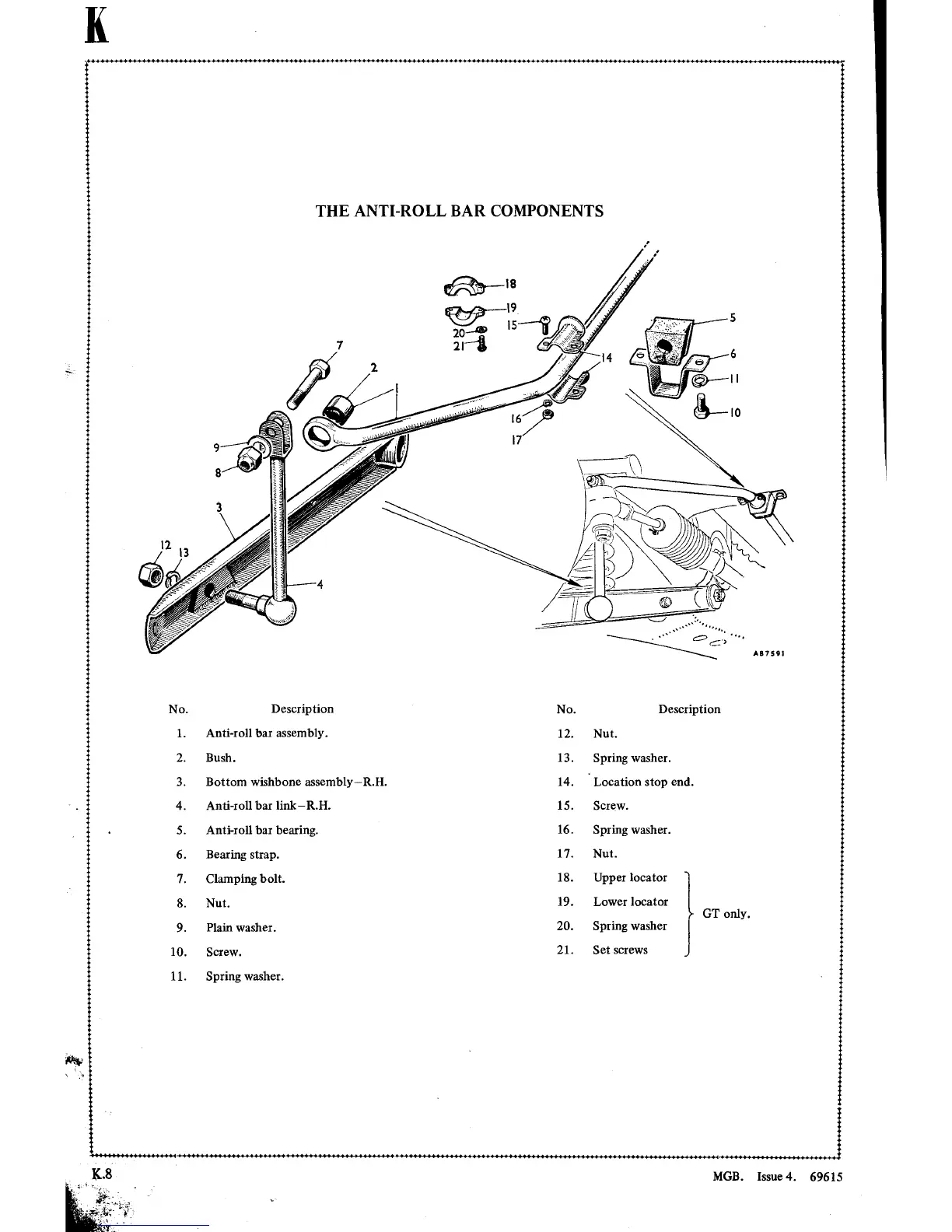

THE
ANTI-ROLL
BAR
COMPONENTS
A3759!
No.
Description
No.
Description
1.
Anti-roll
bar
assembly.
12.
Nut.
2.
Bush.
13.
Spring
washer.
3.
Bottom
wishbone
assembly~R.H.
14.
'
Location
stop
end.
4.
Anti-roll
bar
link—RH.
15.
Screw.
5.
Anti-roll
bar
bearing.
16.
Spring
washer.
6.
Bearing
strap.
17.
Nut.
7.
Clamping
bolt.
18.
Upper
locator
8.
Nut.
19.
Lower
locator
GT
only.
9.
Plain
washer.
20.
Spring
washer
10.
Screw.
21.
Set
screws
11.
Spring
washer.
MGB.
Issue4.
69615
241
243
