MGB. Issue
6.
82448
N.23
No.
Description
1.
Panel
light switch.
2.
Overdrive switch.
3. Bezel for
overdrive switch.
Up
to
and including
early
GHNS
and GHDS
cars
4. Map light switch.
5. Heater
blower switch.
6. Windscreenwiper switch (GT).
7. Windscreenwiper switch (Tourer).
8.
Ignition/starter
switch.
9. Ignition switch
lock
and
key.
10.
Locknut for
ignition/starter
switch.
11. Light switch (later cars).
12. Electrically heated back-light switch (GT).
GHN3
and GHD3
cars
13.
Light switch.
14
-
Headlight dip
switch.

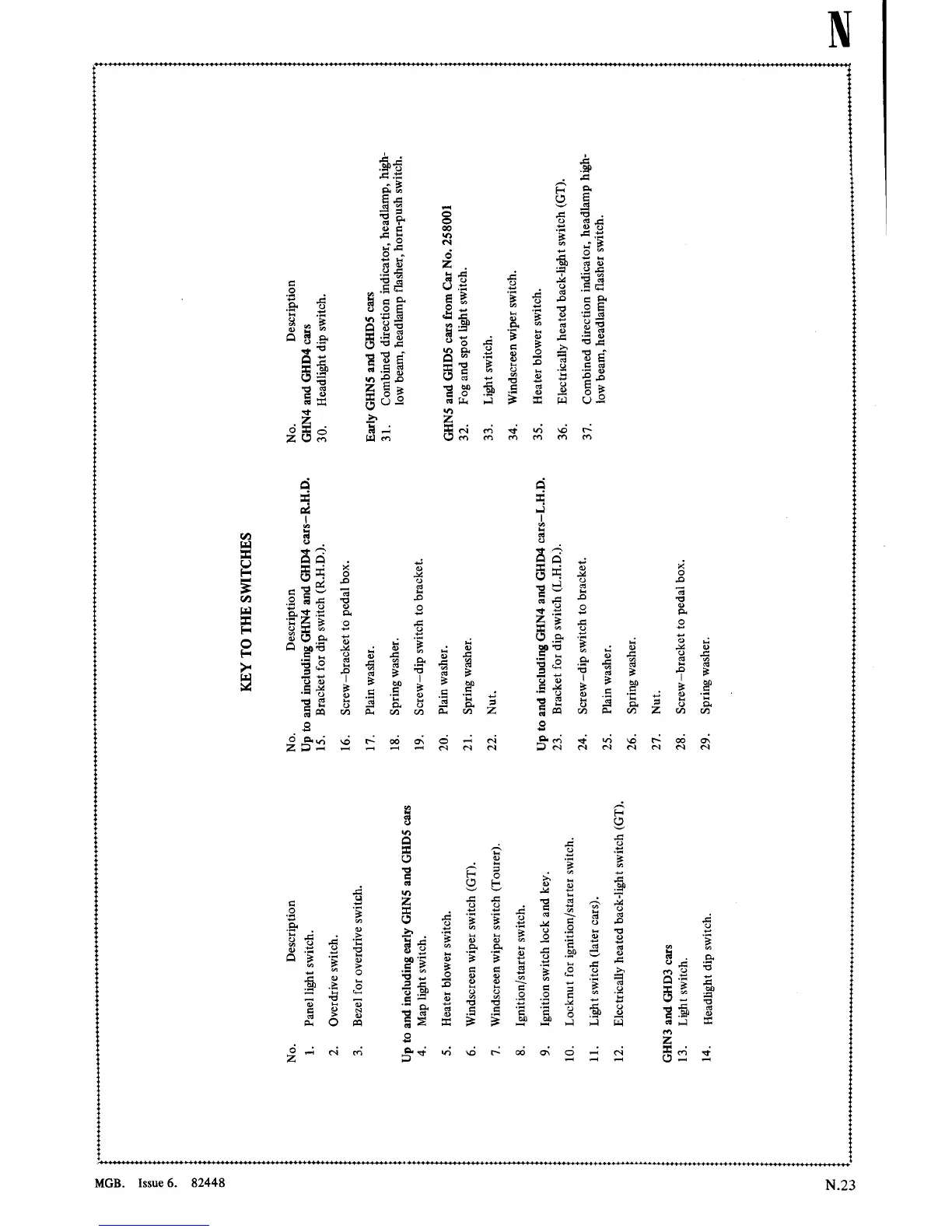

KEY
TO
THE SWITCHES
No.
Description
Up
to
and including GHN4 and
GHD4
cars—RJ-ID.
15.
Bracket for dip switch
(R.H.D.).
16. Screw—bracket
to
pedal box.
17. Plain
washer.
18. Spring washer.
19.
Screw—dipswitch
to
bracket.
20. Plain
washer.
21.
Spring washer.
22. Nut.
Up
to
and
including
GHN4 and GHD4 cars—L.H.D.
23.
Bracket for dip
switch (L.H.D.).
24.
Screw-dip switch
to
bracket.
25.
Plain washer.
26. Spring
washer.
27. Nut.
28.
Screw—bracket
to
pedal box.
29. Spring
washer.
No.
Description
GHN4
and GHD4
cars
30.
Headlight dip
switch.
Early
GHNS
and GHDS
cars
31.
Combined direction
indicator,
headlamp,
high-
low beam,
headlamp
asher,
horn-push
switch.
GHNS
and GHDS
cars
from Car No.
258001
32.
33.
34.
35.
36.
37.
Fog
and
spot
light
switch.
Light
switch.
Windscreen
wiper
switch.
Heater
blower
switch.
Electrically
heated
back-light
switch
(GT).
Combined
direction
indicator,
headlamp
high-
low beam,
headlamp
asher
switch.
