Description
Pump
assemblyawater
(with hub less
pulley).
Vane—water
pump.
Bearing
assemblycomplete
with spindle.
(1) Bearng
assembly(later
type).
WireAbearing
locating.
Screw~lubricating
point.]?
(early
pumps
only)
Washer—fibrekscrew. J
Hub
—pulley.
Sealiwater
pump.
(1) Pressure
balancedsteel (later pumps).
Pulley—fan
and
water
pump.
Joint washer—pump
to
crankcase.
Washer—spring~screw.
Screw—long—water
pump
to
crankcase.

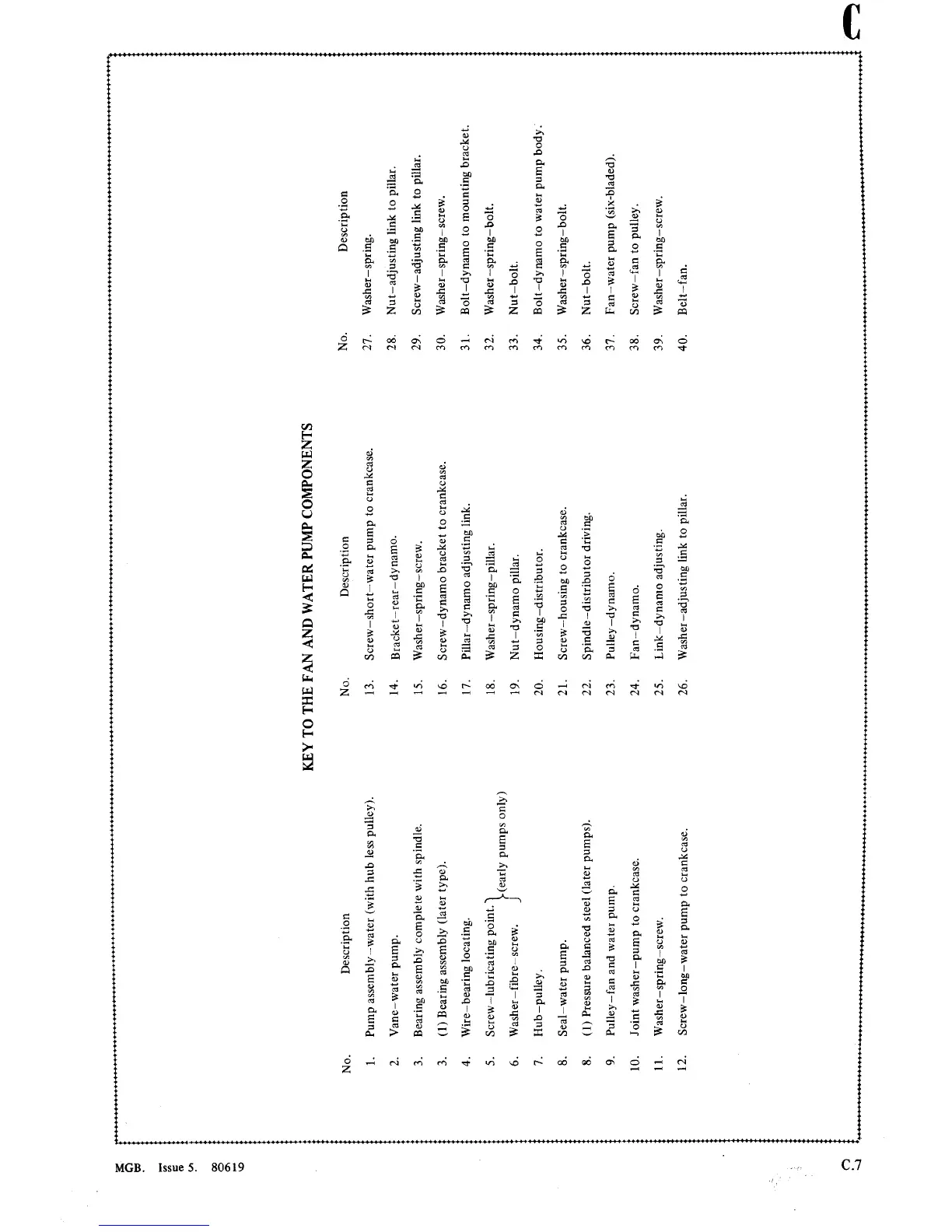

KEY TO
THE FAN AND WATER
PUMP
COMPONENTS
N0.
l3.
14.
15.
16. 17. 18.
19.
20. 21. 22. 23. 24. 25.
26.
Description
Screw—shortewater
pump
to
crankcase.
Bracketerear—dynamo.
Washer—spring—screw.
Screw-dynamo bracket
to
crankcase.
Pillar~dynamo
adjusting link.
Washer—spring—pillar.
Nut—dynamo
pillar.
Housing—distributor. Screwwhousing
to
crankcase.
Spindle—distributor driving.
Pulley—dynamo.
Fanwdynamo.
Linkedynamo
adjusting.
Washer—adjustinglink
to
pillar.
N0.
27.
28. 29. 30.
31. 32.
33.
34.
35. 36.
37. 38. 39.
40.
Description
Washer—spring.
Nut—adjustinglink
to
pillar.
Screw—adjustinglink
to
pillar.
Washer—spring—screw.
Bolt—dynamo
to
mounting bracket.
Washer
—spring—bolt.
Nut—bolt. Bolt-dynamo
to water
pump
body.‘
Washer—spring—bolt. Nut—bolt.
Fangwater
pump
(six-bladed).
Screw—fan
to
pulley.
Washer—spring—screw.
Beltvfan.
