THE
ELECTRICAL SYSTEM

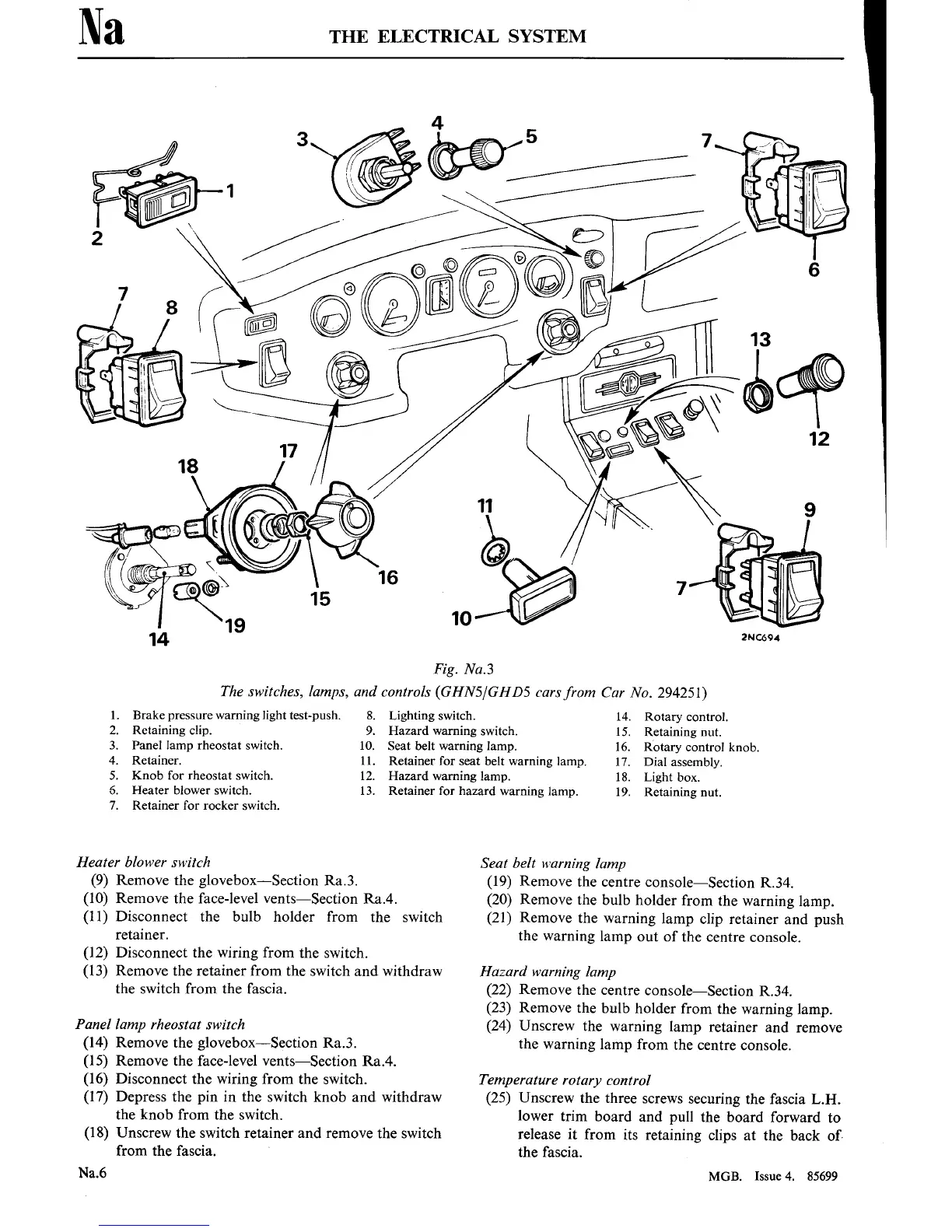

Fig. Na.3
The switches, lamps,
and controls (GHNS/GHDS
cars
from
Car
No.
294251)
1. Brake
pressure
warning light test-push.
8.
Lighting
switch.
14.
Rotary control.
2. Retaining clip.
9. Hazard warning
switch.
15.
Retaining
nut.
3.
Panel lamp rheostat switch.
10. Seat
belt
warning lamp.
16.
Rotary
control knob.
4.
Retainer.
11. Retainer for
seat
belt warning
lamp.
17.
Dial
assembly.
5.
Knob for rheostat switch.
12.
Hazard warning
lamp.
18.
Light
box.
6.
Heater
blower switch.
13.
Retainer for
hazard
warning lamp.
19. Retaining
nut.
7.
Retainer for
rocker
switch.
Heater
blower switch
(9)
Remove
the
glovebox—Section
Ra.3.
(10)
Remove the face-level vents—Section
Ra.4.
(1
1) Disconnect
the bulb holder from
the switch
retainer.
(12)
Disconnect
the
wiring from
the
switch.
(13)
Remove the
retainer from
the switch
and
withdraw
the switch from the fascia.
Panel lamp rheostat switch
(14)
Remove the glovebox—Section
Ra.3.
(15)
Remove the
face-level
vents—Section
Ra.4.
(16)
Disconnect
the
wiring
from the switch.
(17)
Depress the
pin in
the switch
knob and
withdraw
the knob from the switch.
(18)
Unscrew the switch retainer and
remove
the switch
from the fascia.
Na.6
Seat
belt
warning
lamp
(19) Remove
the
centre
console—Section
R34.
(20)
Remove
the bulb
holder from
the
warning lamp.
(21)
Remove
the warning
lamp
clip retainer
and push
the
warning
lamp
out
of the
centre
console.
Hazard
warning
lamp
(22)
Remove
the
centre
console—Section
R34.
(23)
Remove the
bulb holder
from
the warning lamp.
(24)
Unscrew
the warning
lamp
retainer
and
remove
the warning
lamp from
the
centre
console.
Temperature
rotary
control
(25)
Unscrew
the three
screws
securing
the fascia
L.H.
lower
trim
board and
pull
the
board forward
to
release it
from
its retaining
clips
at
the back of.
the
fascia.
MGB.
Issue 4. 85699
