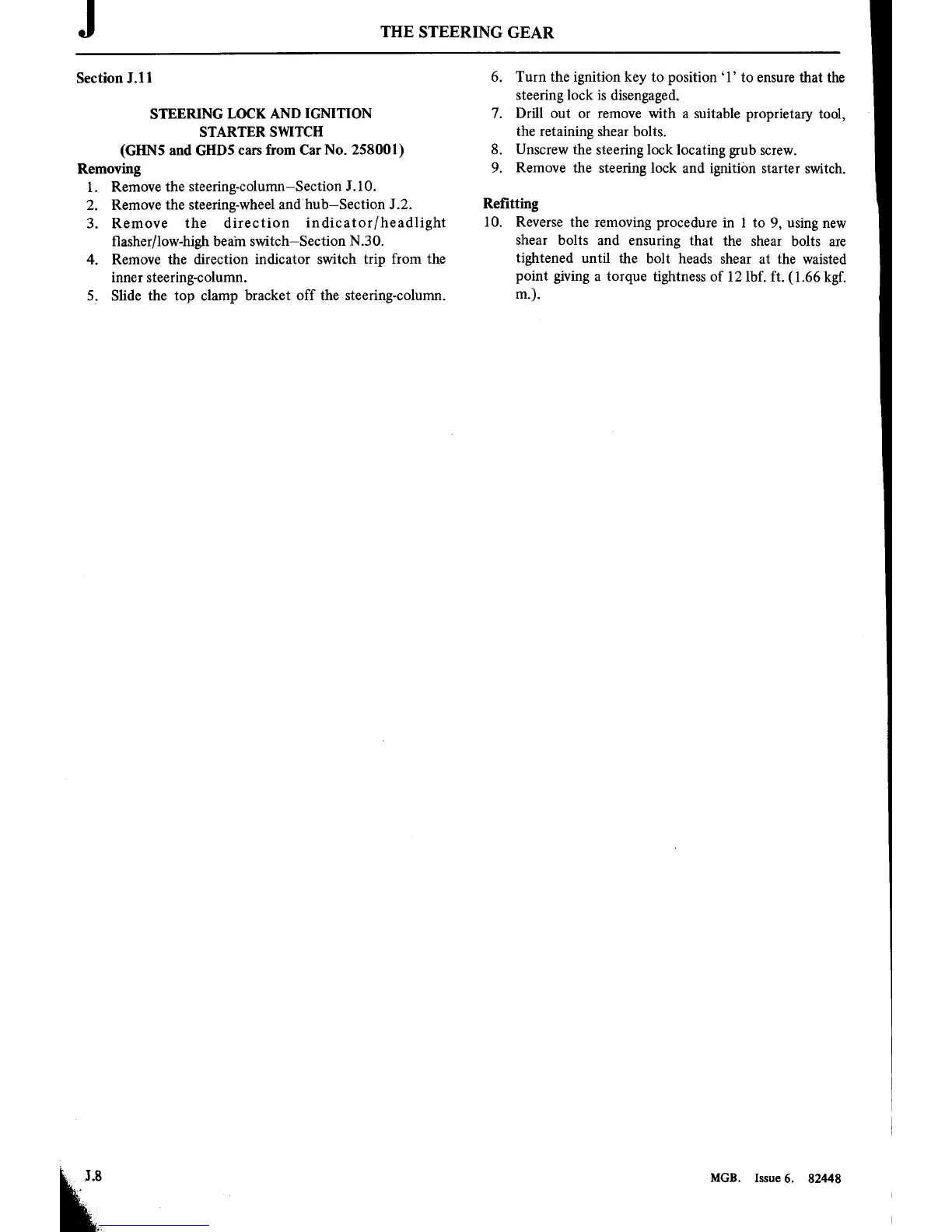

J
THE
STEERING
GEAR
Section
I
.11
STEERING
LOCK
AND
IGNITION
STARTER
SWITCH
(GHNS
and
GHDS
cars
from
Car
No.
258001)
Removing
1.
Remove
the
steering-column—Section
J
.10.
2.
Remove
the
steering-wheel
and'hub—Section
J
.2.
3.
Remove
the
direction
indicator/headlight
■
asher/low-high
bea‘m
switch—Section
N.30.
4.
Remove
the
direction
indicator
switch
trip
from
the
inner
steering-column.
5.
Slide
the
top
clamp
bracket
off
the
steering-column.
6.
Turn
the
ignition
key
to
position
‘1’
to
ensure
that
the
steering
lock
is
disengaged.
7.
Drill
out
or
remove
with
a
suitable
proprietary
tool,
the
retaining
shear
bolts.
8.
Unscrew
the
steering
lock
locating
grub
screw.
9.
Remove
the
steering
lock
and
ignitiOn
starter
switch.
Re
■
tting
10.
Reverse
the
removing
procedure
in
1
to
9,
using
new
shear
bolts
and
ensuring
that
the
shear
bolts
are
tightened
until
the
bolt
heads
shear
at
the
waisted
point
giving
a
torque
tightness
of
121bf.
ft.
(1.66
kgf.
m.).
MGB.
Issue
6.
82448
230
232
