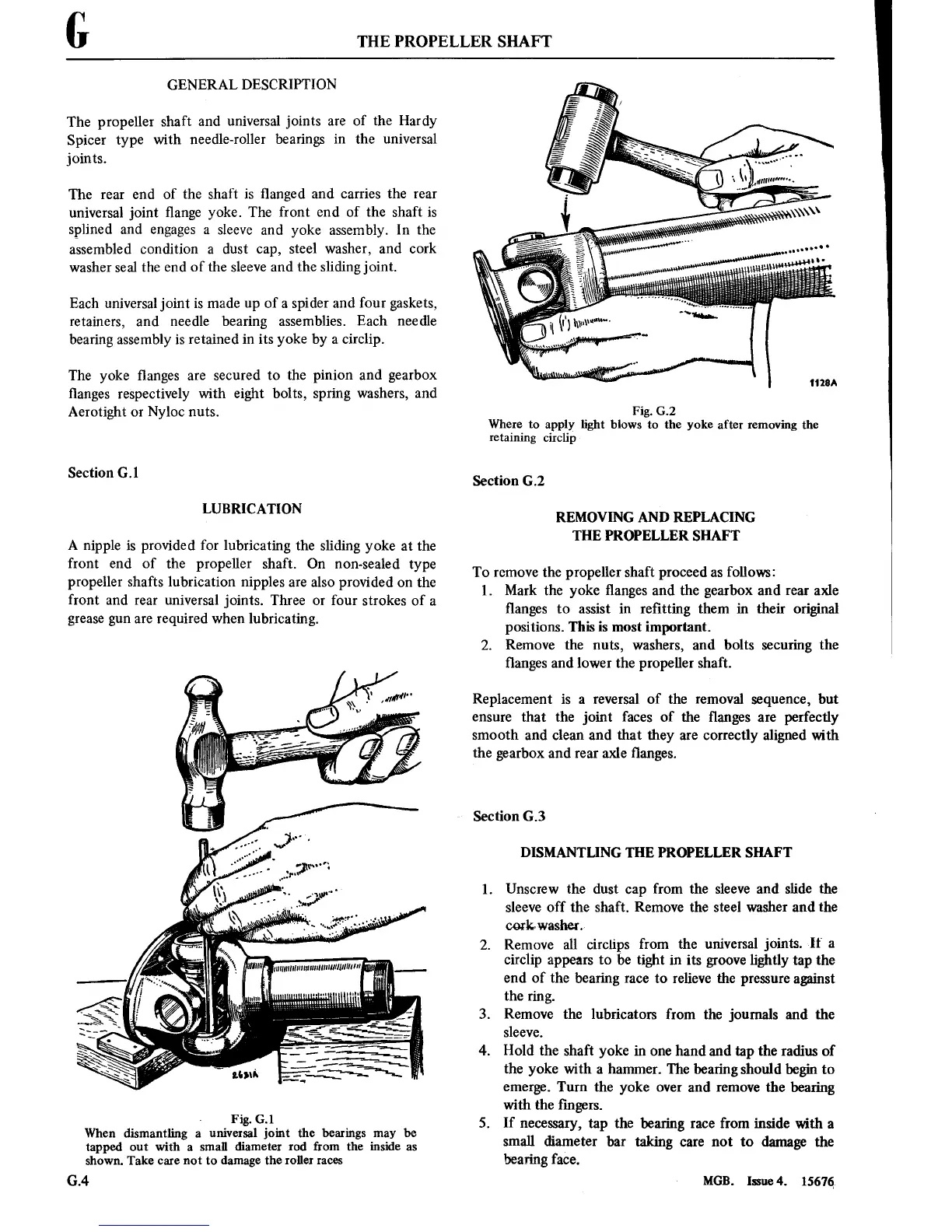

G
THE
PROPELLER SHAFT
GENERAL
DESCRIPTION
The
propeller
shaft and
universal
joints
are
of
the Hardy
Spicer
type
with
needle-roller bearings
in
the universal
joints.
The
rear
end
of
the
shaft
is
■anged and
carries
the
rear
universal
joint
■ange yoke. The
front end of the shaft
is
splined and
engages
a
sleeve
and yoke assembly. In
the
assembled condition
a
dust
cap,
steel washer, and cork
washer seal the end
of the sleeve and
the
sliding joint.
Each universal
joint is
made
up
of
a
spider and
four
gaskets,
retainers,
and
needle bearing
assemblies. Each needle
bearing assembly
is
retained
in its
yoke by
a
circlip.
The yoke ■anges
are
secured
to
the
pinion
and gearbox
■anges respectively with
eight bolts,
spring
washers,
and
Aerotight
or
Nyloc
nuts.
Section
G.l
LUBRICATION
A nipple
is
provided
for
lubricating the sliding yoke
at
the
front
end
of the propeller shaft.
On non-sealed
type
propeller shafts lubrication nipples
are
also provided
on
the
front
and
rear
universal
joints. Three
or
four strokes of
a
grease gun are
required when lubricating.
Fig. G.1
When dismantling
a
universal joint the
bearings
may
be
tapped
out
with
a
small diameter rod
from
the inside
as
shown. Take
care
not to
damagethe roller
races
G.4
‘At-yf;
.
7
It)
\wnmmu.
I.“
1128A
Fig. G.2
Where
to
apply light blows
to
the yoke after
removing the
retaining circlip
Section 6.2
REMOVING AND
REPLACING
THE PROPELLER SHAFT
To
remove
the propeller shaft proceed
as
follows:
1.
Mark the yoke ■anges and the gearbox and
rear
axle
■anges
to
assist in
re■tting them
in
their
original
positions.
This
is
most
important.
2.
Remove the
nuts,
washers, and bolts
securing
the
■anges and
lower
the propeller shaft.
Replacement
is
a
reversal of the removal
sequence,
but
ensure
that the
joint
faces of the ■anges
are
perfectly
smooth and clean and
that
they
are
correctly aligned with
the
gearbox and
rear
axle ■anges.
Section G.3
DISMANTLING THE PROPELLER
SHAFT
1.
Unscrew the dust
cap
from the
sleeve
and slide the
sleeve
off the shaft.
Remove
the steel
washer
and the
corkwasher.
2.
Remove
all
circlips
from the
universal
joints.
If
a
circlip
appears
to
be tight
in its
groove
lightly
tap
the
end of the
bearing
race
to
relieve the
pressure
against
the
ring.
3. Remove
the
lubricators from the journals
and the
sleeve.
4.
Hold the shaft
yoke
in
one
hand and
tap
the radius of
the yoke with
a
hammer. The
bearing
should
begin
to
emerge.
Turn
the
yoke
over
and
remove
the
bearing
with the ■ngers.
5.
If
necessary,
tap
the bearing
race
from inside with
a
small diameter
bar taking
care
not to
damage
the
bearing
face.
MGB.
Issue
4.
15676
