Creating Schematic Symbols Using Cadence OrCAD Capture CIS for SmartFusion2

and IGLOO2 Designs

AC393 Application Note Revision 14.0 71

• Short Dot

• Short Dot clock

• Short

• Zero Length

The default shape for most of the FPGA symbol pins is LINE.

10. Leave the Pin Group column blank.

11. In the Position column, enter one of the following positions according to the requirement:

•Bottom

• Left

• Right

•Top

12. In the Section column, enter either a number or an alphabet based on the selection made for the

Part Numbering option. OrCAD Capture supports two Part Numbering options, that is 1,2,3,4,…for

Numeric option and A, B, C, D… for Alphabetical option. See Figure 72, page 74

13. Save the Excel file with an appropriate name.

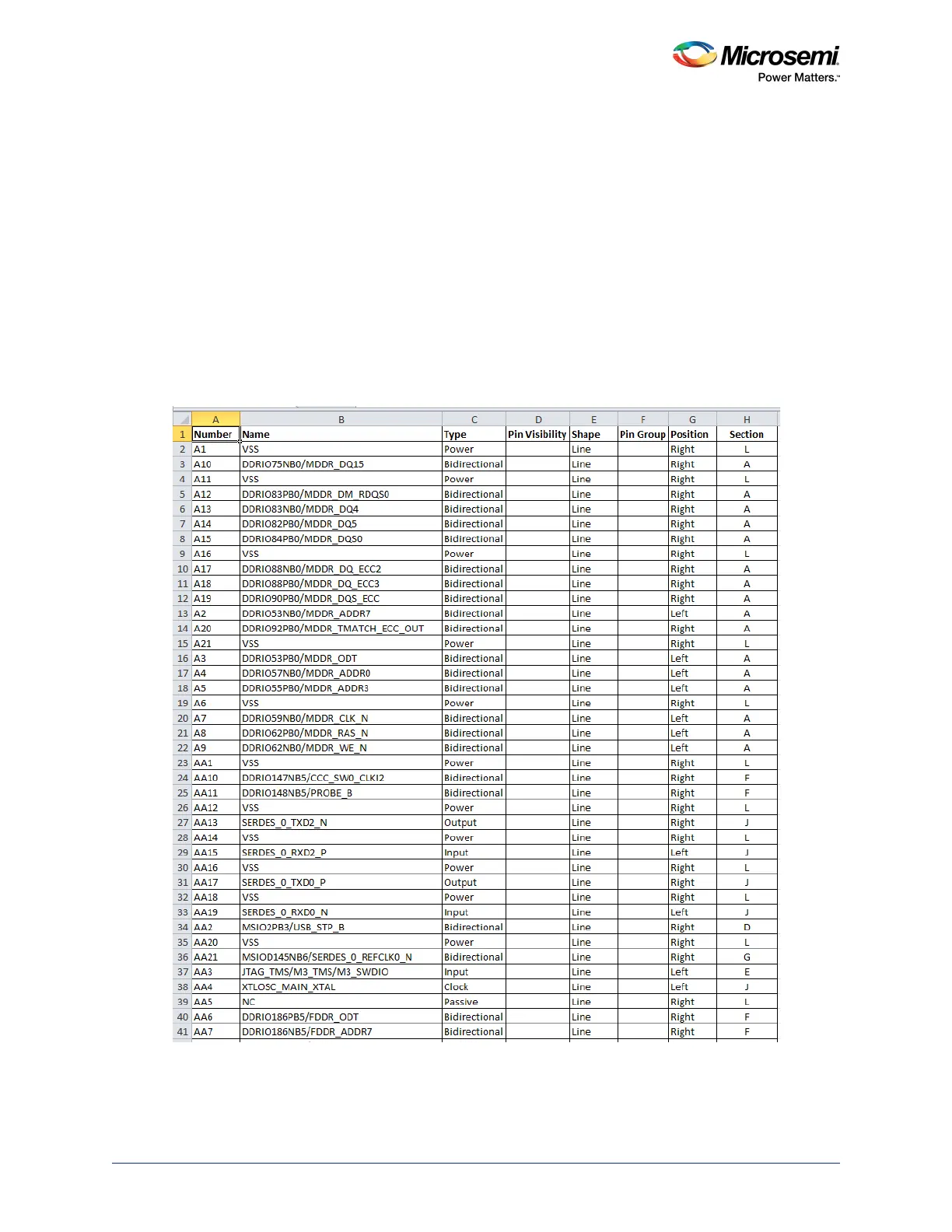

Figure 69 • Example PAT Spreadsheet - Final Stage
