Creating Schematic Symbols Using Cadence OrCAD Capture CIS for SmartFusion2
and IGLOO2 Designs
AC393 Application Note Revision 14.0 77
The I/O Editor dialog lists the port names with the updated pin names as shown in the following figure.
The pin names that are not modified follow the Microsemi pin naming convention.
Note: For the I/O Editor dialog to open, the design must be synthesized and compiled.

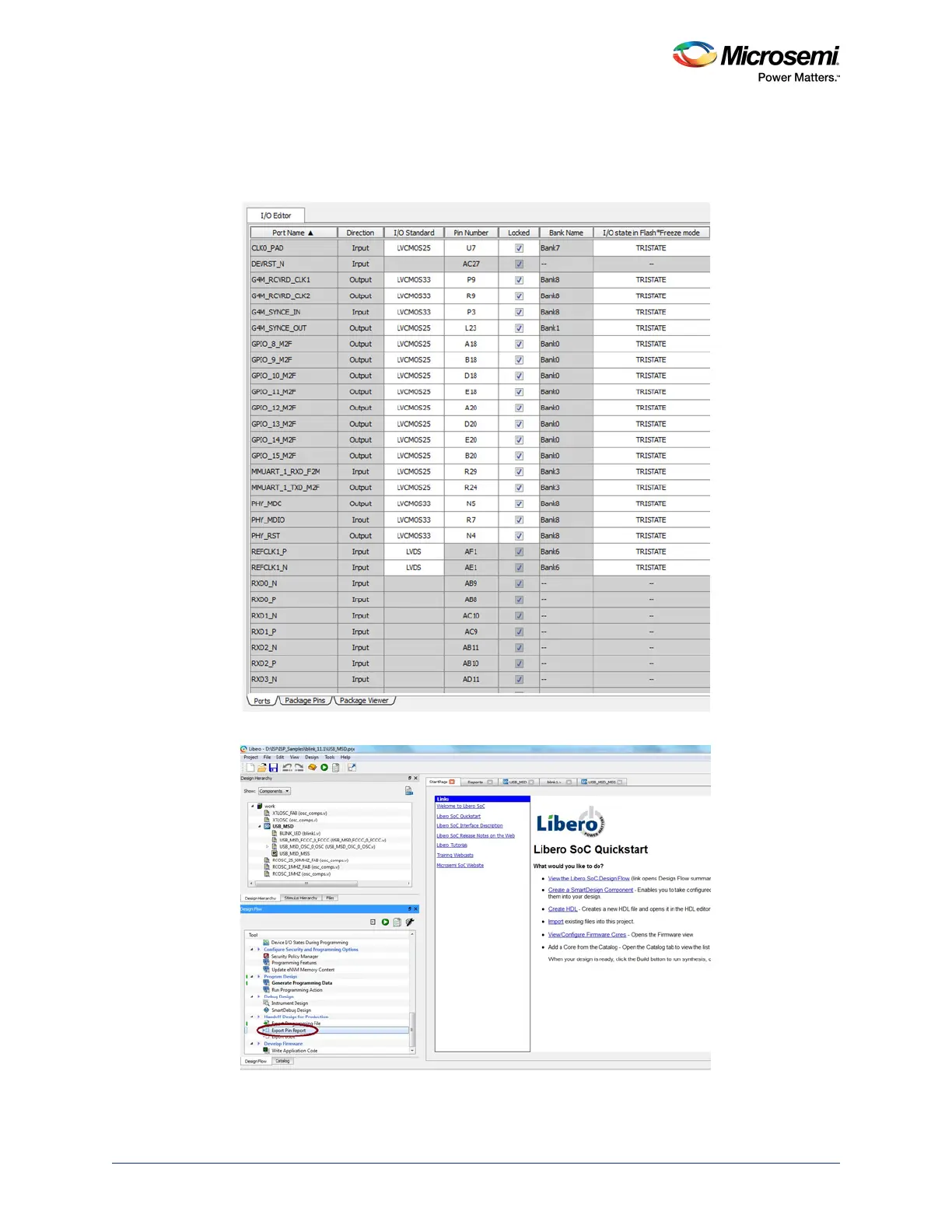

Figure 78 • I/O Editor
Figure 79 • Exporting pin information from Libero
4. To export the pin names, double-click Export Pin Report in the Design Flow tab. This report has
the file extension .rpt.
