Microsemi IGLOO2 - Figure 71 Example PAT Spreadsheet - Final Stage

Creating Schematic Symbols Using Cadence OrCAD Capture CIS for SmartFusion2
and IGLOO2 Designs
AC393 Application Note Revision 14.0 73
5. From the Example PAT Spreadsheet, select and copy all the cells, excluding the column headers as
shown in the following figure.

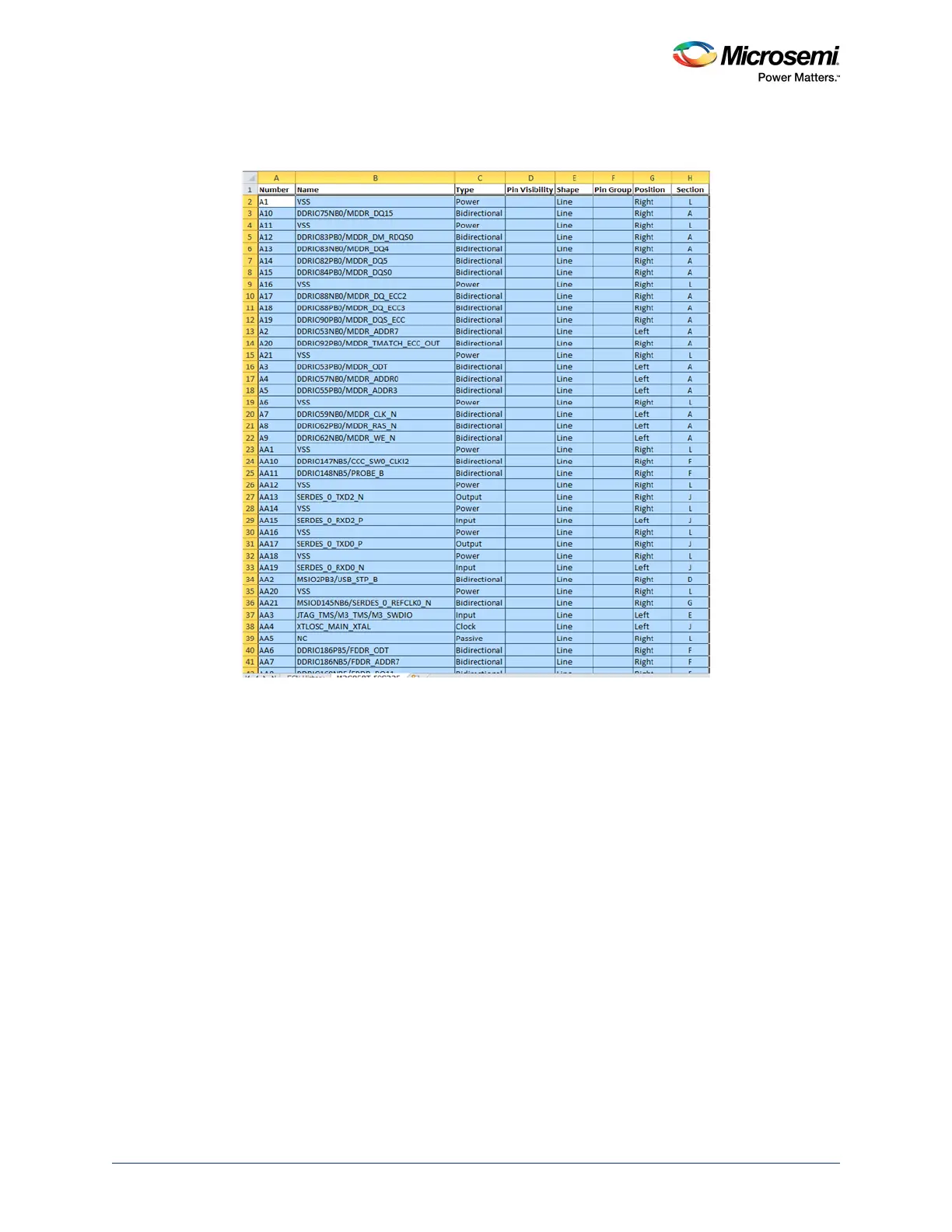

Figure 71 • Example PAT Spreadsheet - Final Stage
