Reading Range of Register Marks

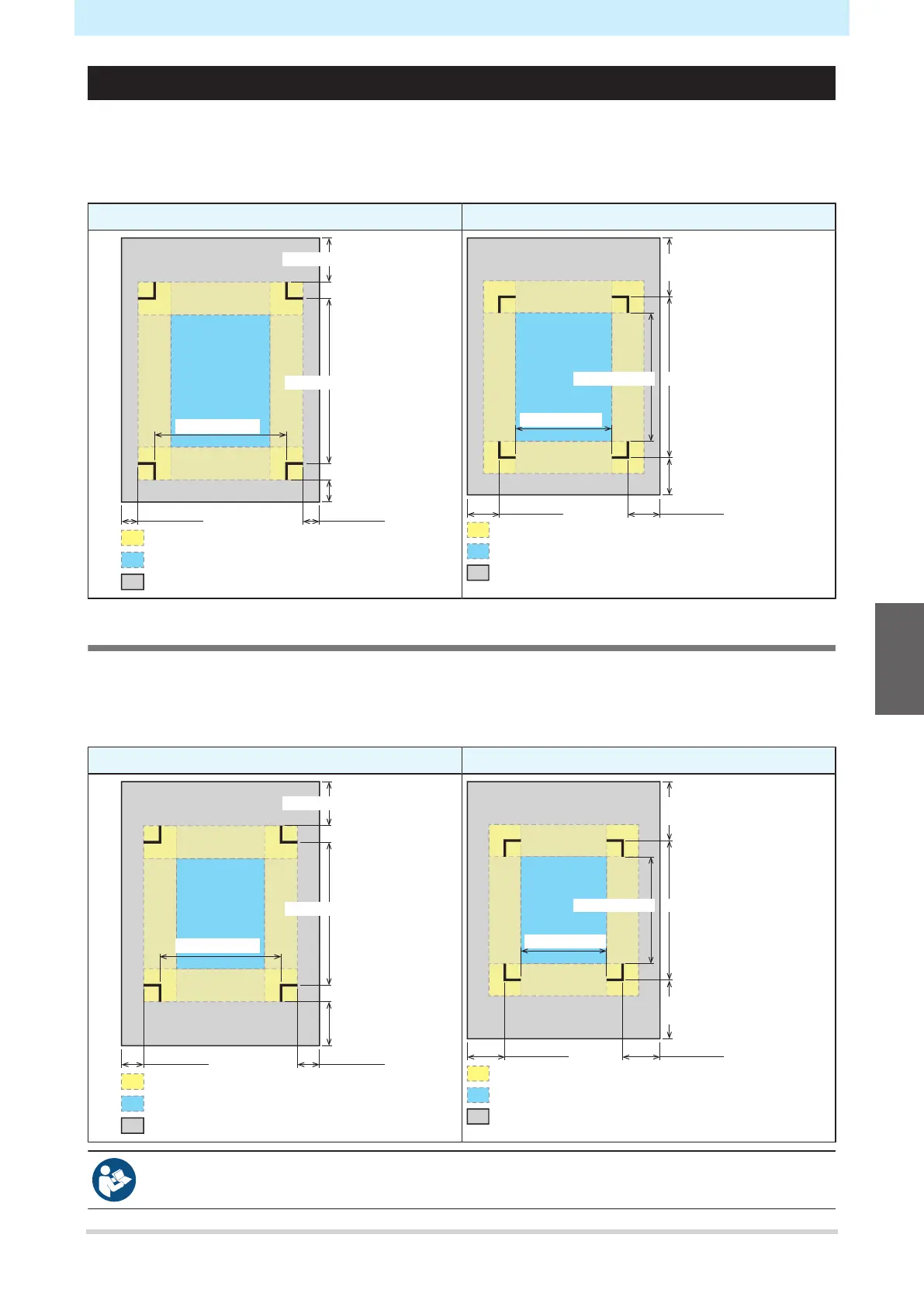

This machine can detect register marks in the range shown below. If the margin is small, the edge of the
media may be incorrectly identified as a register mark.
When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear
edge of the media.
(Mark shape) Type 1 (Mark shape) Type 2
[Rear]
[Front]
50 mm or more
110 (or 210) mm
20 mm or more
50 to 3,000 mm
: Cut area
: No-plotting area
: Media
5 mm or more 5 mm or more
[Rear]
[Front]
50 mm or more
110 (or 210) mm
+ (mark length (B)/2) or more
20 mm
+ (mark length (B)/2) or
more
Within 3,000 mm
: Cut area
: No-plotting area
: Media
5 mm or more
5 mm or more
50 mm or more
ID Cut
This machine can detect register marks in the range shown below. If the margin is small, the edge of the
media may be incorrectly identified as a register mark.
When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear
edge of the media.
(Mark shape) Type 1 (Mark shape) Type 2
[Rear]
[Front]
70 mm or more
110 (or 210) mm
110 mm or more
70 to 3,000 mm
: Cut area
: No-plotting area
: Media
15 mm or more 15 mm or more
[Rear]
[Front]
70 mm or more
110 (or 210) mm
+ (mark length (B)/2) or more
110 mm
+ (mark length (B)/2) or more
Within 3,000 mm
: Cut area
: No-plotting area
: Media
15 mm or more 15 mm or more
70 mm or more
• For more information, refer to the ID Cut Guide. https://mimaki.com/download/software.html
