Chapter 9 Appendix
248

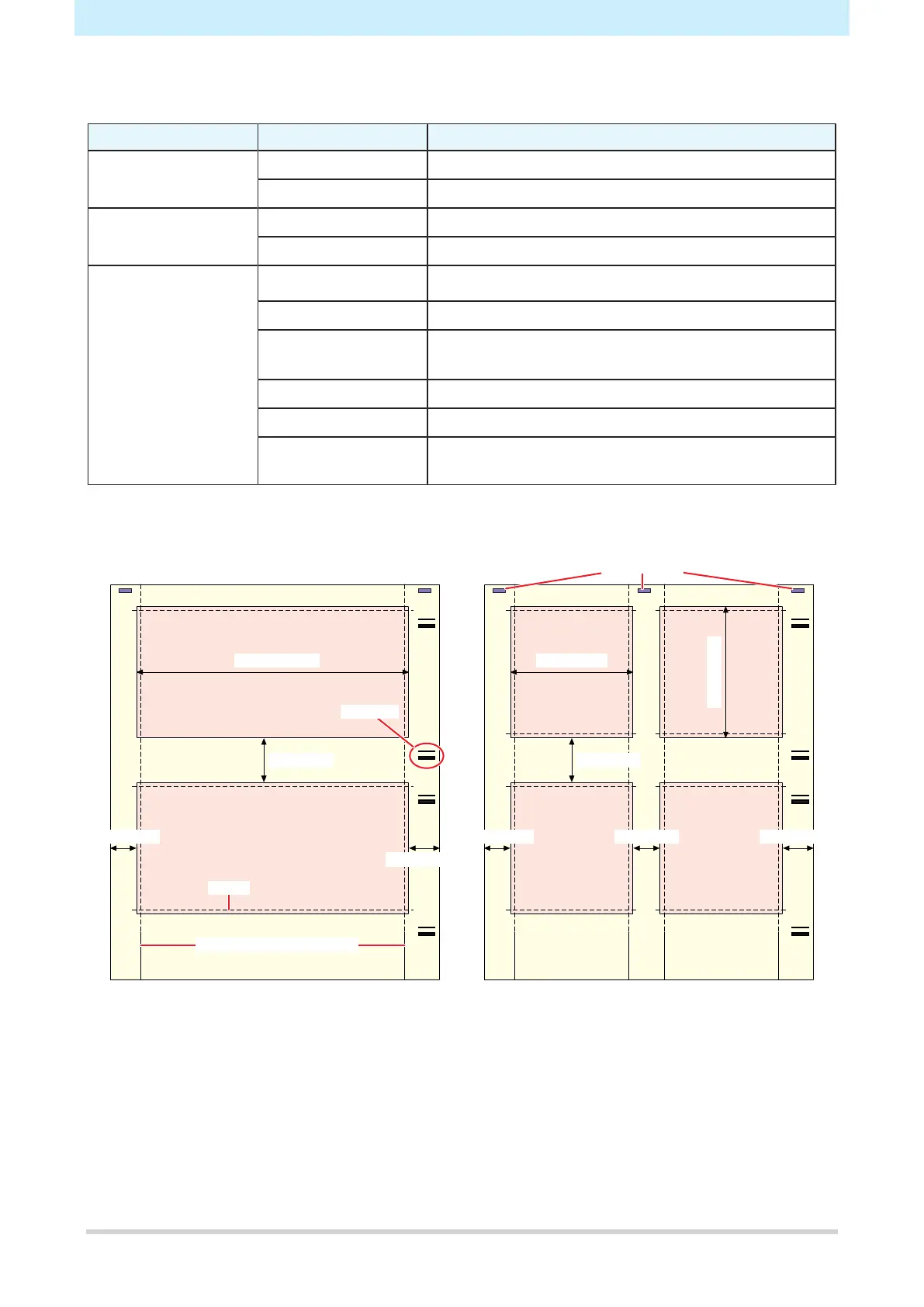

9.3 Specifications (XY Slitter)
Item Details
Cutting accuracy
*1
X slit Within ±2 mm/2 m or ±5 mm/30 m
Y slit Within ±2 mm
Cutter blade durability X 4000 m or more
Y 5500 m or more
Media
Type
* 2, 3
Label paper (paper base), PVC sheet, window film
Thickness Max. 1.0 mm
Maximum cutting width 130 size: 1,310 mm
160 size: 1,560 mm
Minimum cutting width 210 mm (horizontally) × 297 mm (vertically)
Left/right margins Minimum values: Left 25 mm, right 35 mm
Margin between cut
data
Minimum values: X 62 mm, Y 30 mm
*1. Excluding media size variation and fluctuations at initial loading.
*2. Low stiffness media cannot be used.
*3. Tarpaulin and laminated media cannot be used.
Clamp position
Y slit mark
Cut line
Guide lines (X cutter position)
Max. 1,560 mm
Min. 35 mm
Min. 25 mm Min. 35 mmMin. 25 mm Min. 30 mm
Min. 210 mm
Min. 297 mm
Min. 62 mm Min. 62 mm
