9.4 Relay Box
• A fire may occur if another manufacturer's external drying heater is used. Be sure to connect to
the machine using either the compact relay box or relay box 2 specified as options.
• The 330 series allows only one relay box (OPT-J0370 or OPT-J0407) to be connected.
• The optional connection relay cable (OPT-J0512 drying fan connection kit) is required when
using a relay box.
l
Overview
The relay box switches the heater power on and off automatically in conjunction with the machine
operations.
• The heater is turned off when printing stops to prevent heating while the machine is not moving.
• The relay box cannot function to control the temperature of an external drying heater. The temperature
should be set on the external heater itself.
l
Specifications

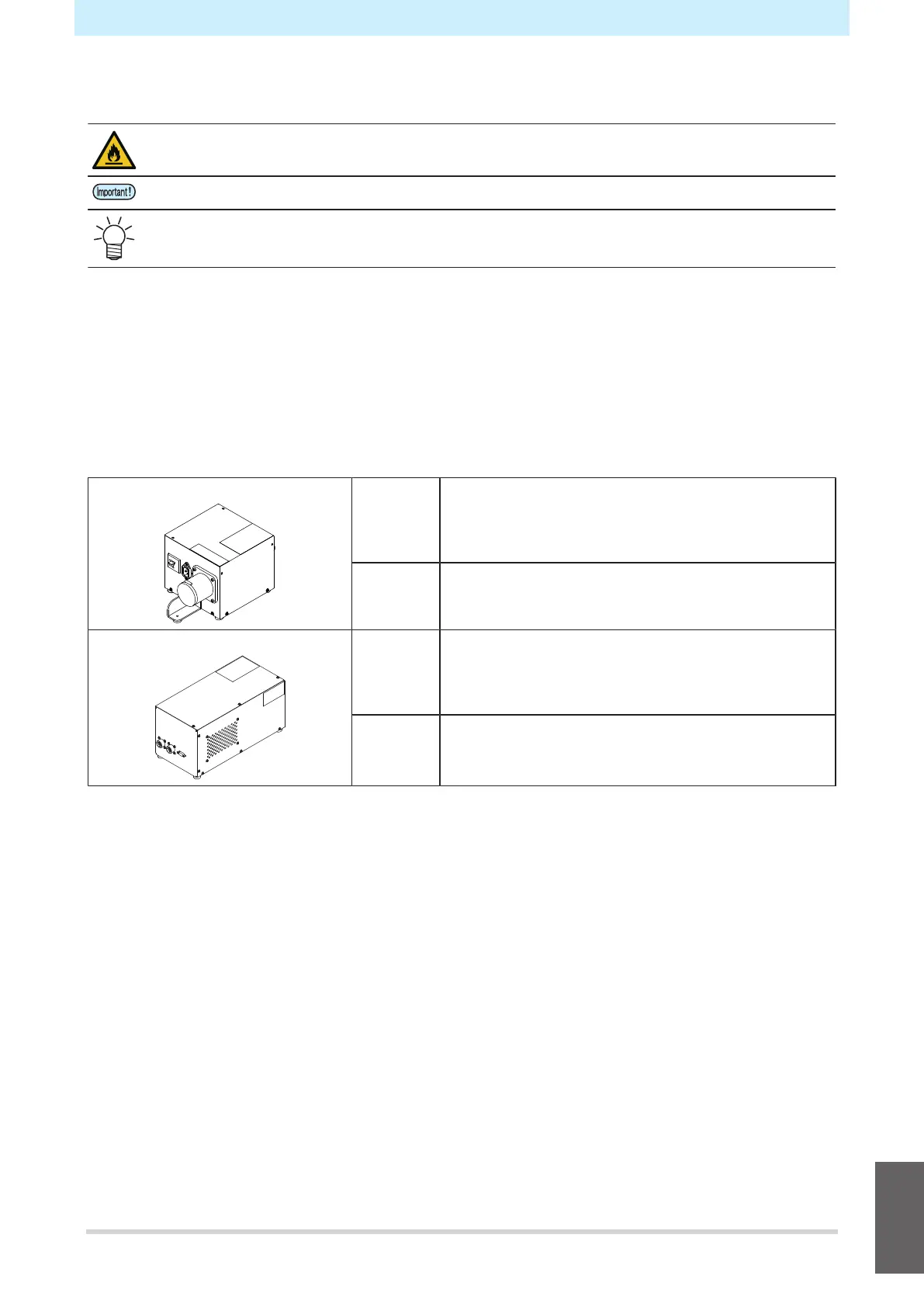

Small relay box (OPT-J0370) Power
supply
specificatio
ns
Single-phase 100 V to 120 V AC, 12 A, single-phase
200 V to 240 V AC, 8 A, 50/60 Hz, single-circuit main
power supply
Type Resistance heater or electric heater using lamp
Relay box 2 (OPT-J0407) Power
supply
specificatio
ns
Single-phase 100 V to 240 V AC, 30 A, 50/60 Hz,
single-circuit main power supply
Type Resistance heater or electric heater using lamp
