Chapter 5 Using the XY Slitter
123

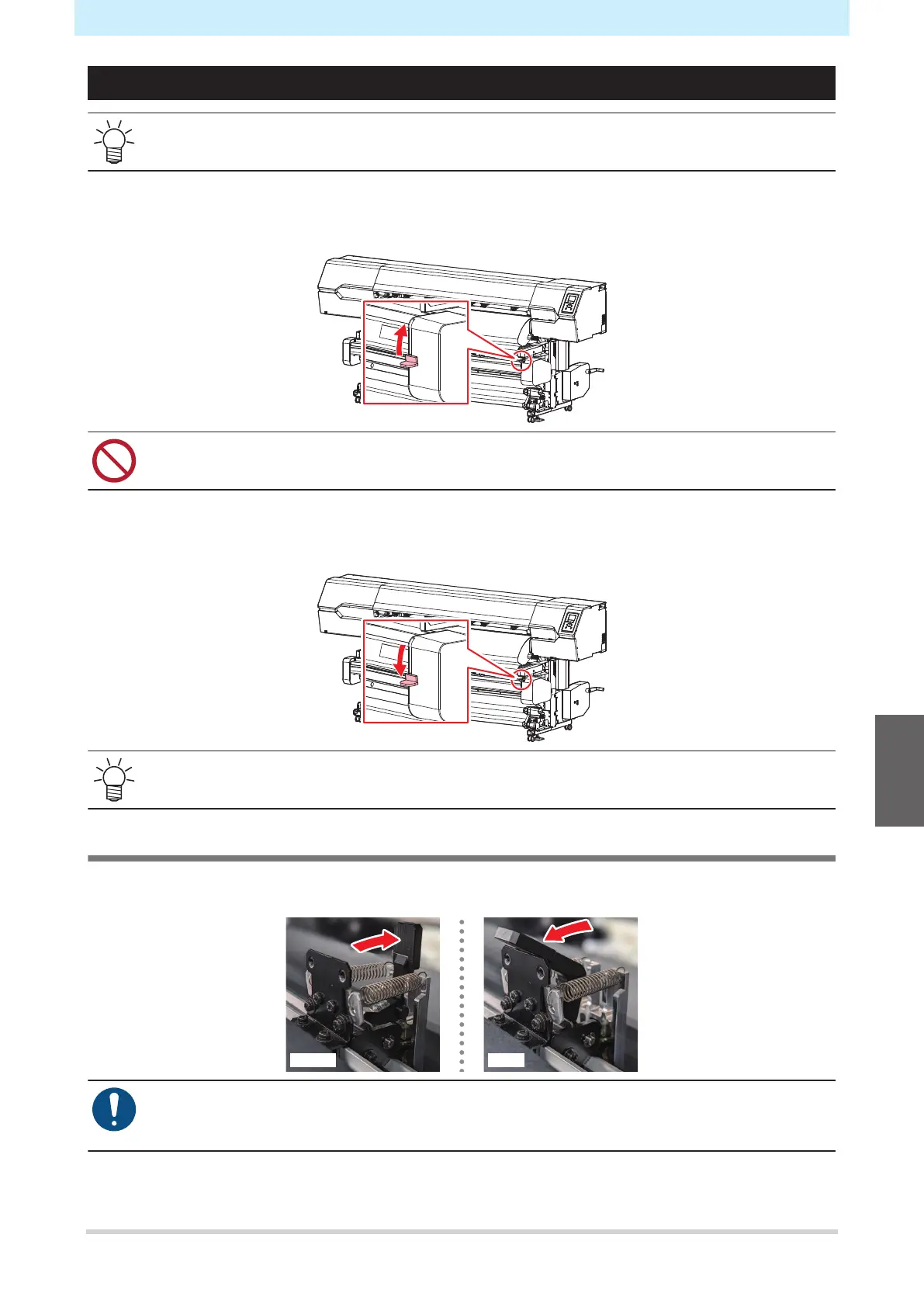

XY Clamp Lever
• This operation is reverse to that of the clamp lever on the main unit.
l
Raising the XY clamp lever
The media is secured (clamped).
• Do not pull the media when the XY clamp lever is raised (the media is clamped). Doing so may
damage the machine.
l
Lowering the XY clamp lever
The media is released (unclamped).
• The XY carriage can be moved by hand when the XY clamp lever is lowered.
Operating the XY clamps individually
The XY clamps can be individually unclamped and clamped. Pushing the XY clamp lever to the rear releases
the XY clamp, enabling it to be moved.
• The XY clamps should be unclamped individually in locations where the media is not present.
Note that they cannot be operated using the XY clamp lever if they have been individually
unclamped.
5
To Next Page
