Chapter 7 Maintenance
214
4

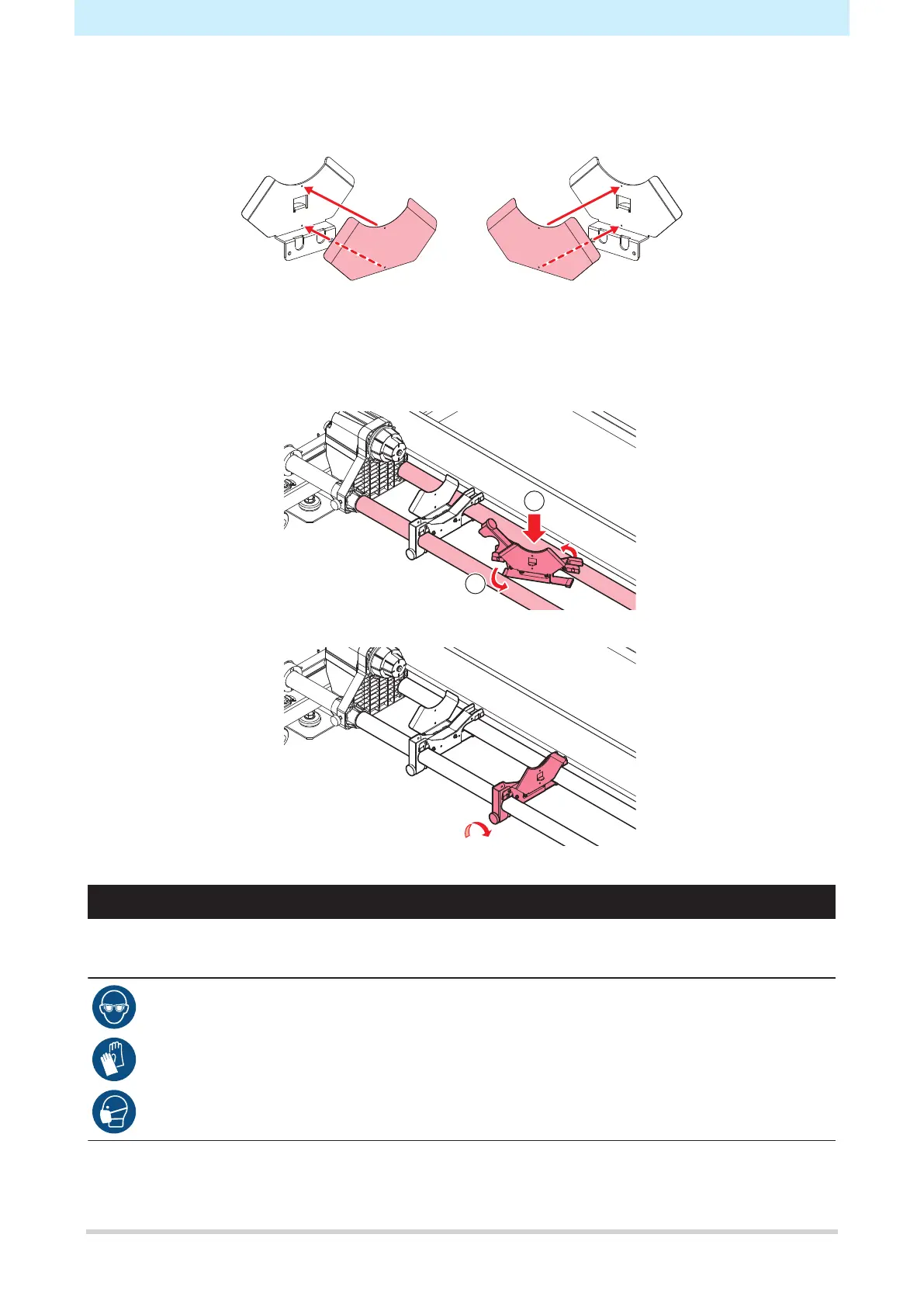

Remove the double-sided tape on the media edge guide film and attach it to the media edge
guide.
• Align and attach the film hole (x2) to the screw hole (x2) of the media edge guide.
5
Position the media edge guides on the roll guides.
(1) Insert a media edge guide between the roll guides.
(2) Rotate the media edge guides to mount them on the roll guides.
(3) Secure the media edge guides with the knob screw.
Ink Supply Unit Ink Absorber Replacement
We recommend replacing the ink absorber each time you replace the ink pack, to prevent dirt building up on
the pedestal of the ink supply unit.
• Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when
handling ink, maintenance liquid, waste ink, or other solutions used with the machine. Leaking
ink may adhere to the skin or get into the eyes or mouth.
