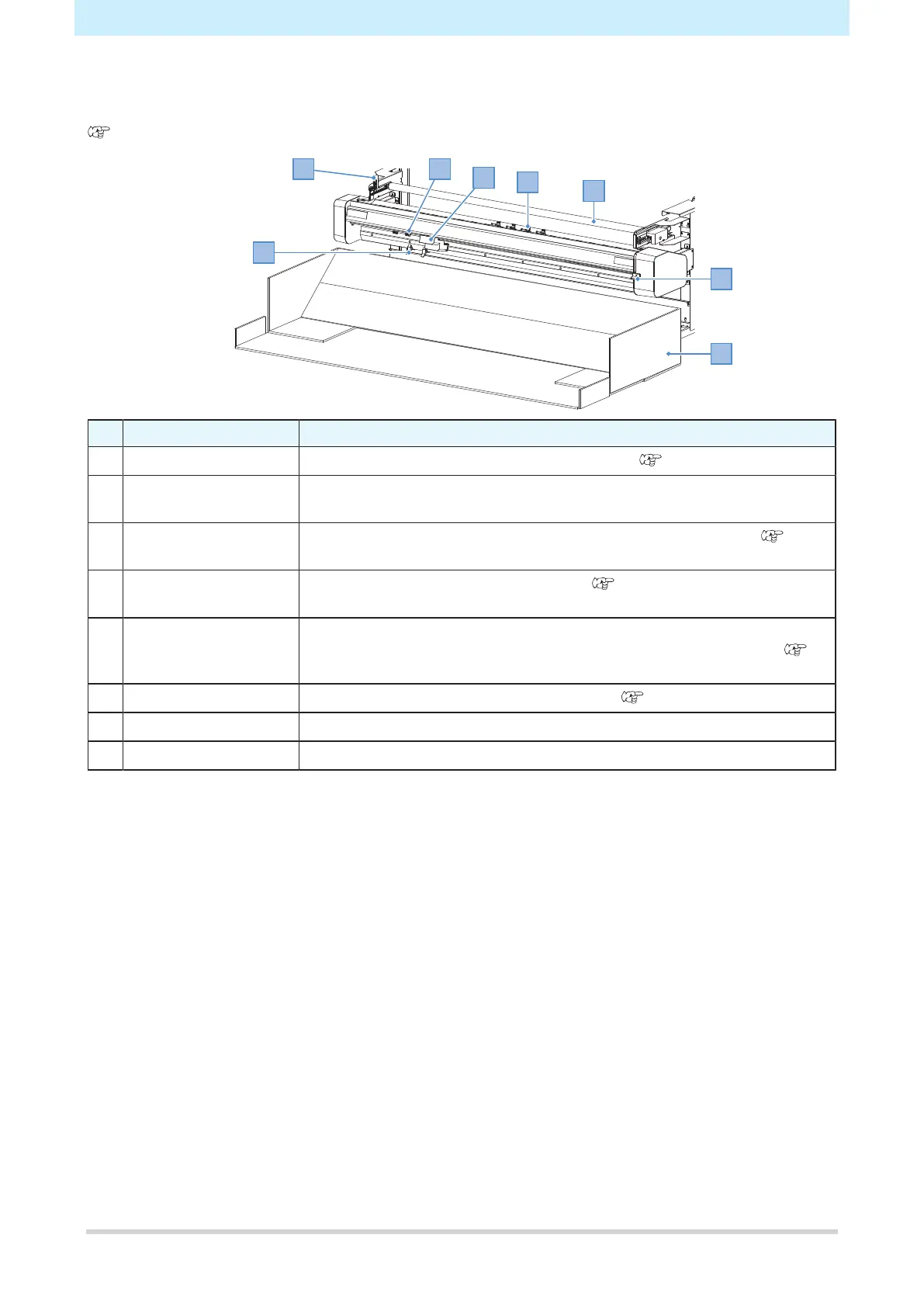

Chapter 5 Using the XY Slitter
122
5.1 XY Slitter
"Specifications (XY Slitter)"(P. 248)
3
1
7
5
4
8
2
6
No. Name Overview
1 X Cutter Cutter for cutting the media in the feed direction. "X Cutter"(P. 124)
2 XY carriage The XY carriage is made up of the mark sensor for reading slitting marks
and the Y cutter for slitting the media in the scan direction.
3 XY clamp Hold the media. These can be individually unclamped and moved.
"Operating the XY clamps individually"(P. 123)
4 Tension bar Tensions the media to prevent it sagging. "Using the Tension
Bar"(P. 125)
5 XY Clamp Lever Raising the clamp lever secures the media. Lowering the clamp lever
releases the media. This operation is reverse to that on the main unit.
"XY Clamp Lever"(P. 123)
6 Media Chute This box holds the media slit by the XY slitter. "Media Chute"(P. 125)
7 Media guides These parts guide the slit media into the media chute.
8 stopper Clamps and unclamps the tension bar.
