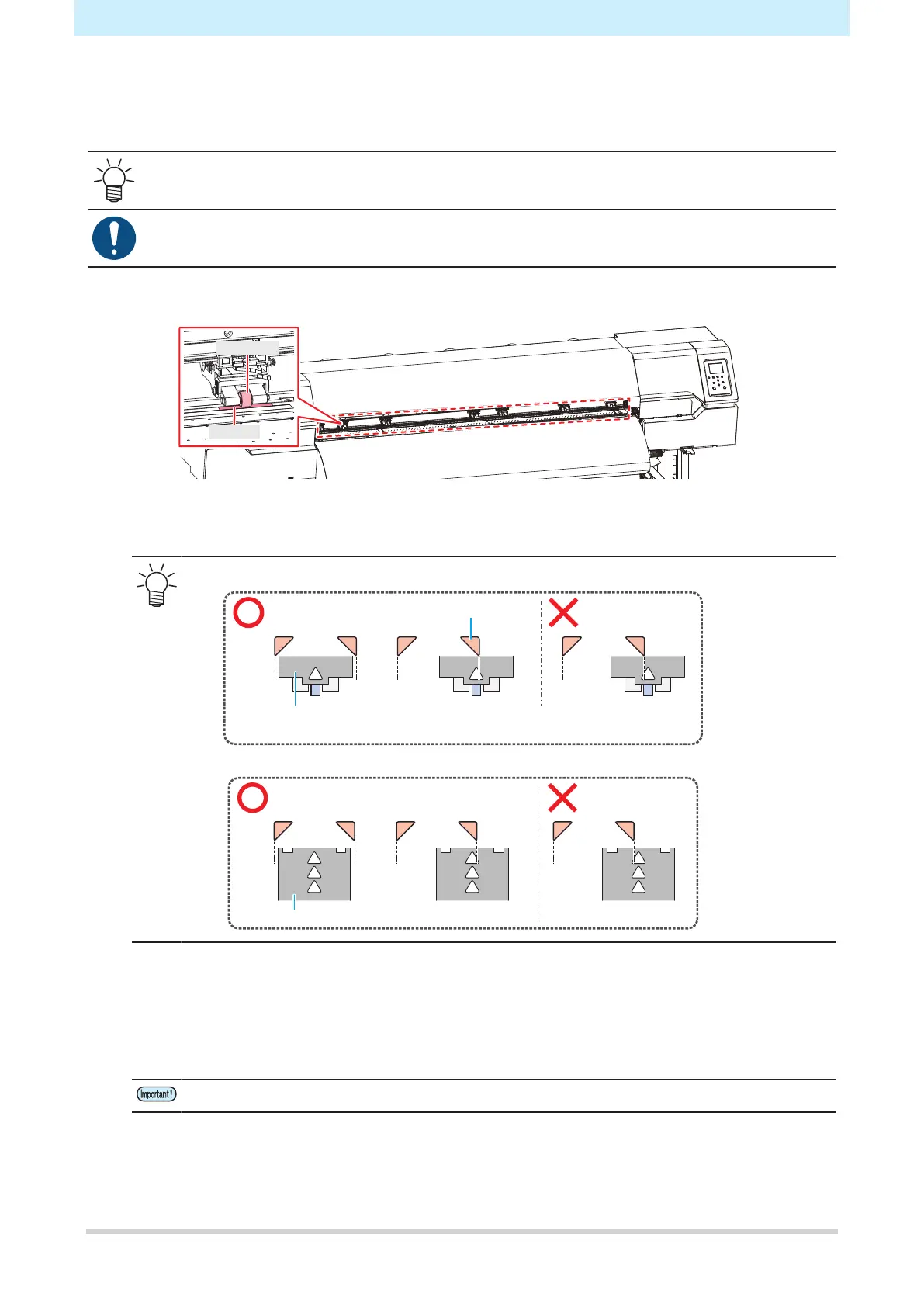

2.3 Adjust the Pinch Roller Positions.
Adjust the pinch roller positions to suit the width of the media being used.
• JV/TS: Feature not included.
• Always use at least two pinch rollers.
1
Choose the grit rollers capable of holding down the media at equal intervals.
2
Move the pinch rollers above the grit rollers.
• Use the pinch roller guide marks as references.
• When adjusting from the front
Pinch roller guide mark
Pinch roller unit (viewed from above)
Adjust so that the triangular mark lies between the two pinch roller guide marks.
• When adjusting from the rear
3
Align the pinch rollers at both the ends to within 10 cm from the left edges and 2 cm from the
right edges of the media.
• Placement farther from the edges may leave some portions of the media uncut.
4
Remove the pinch rollers lying outside the media from the grit rollers.
• Feeding media with the pinch rollers and grit rollers in contact will cause pinch roller wear.
