Chapter 1 Before Use
28

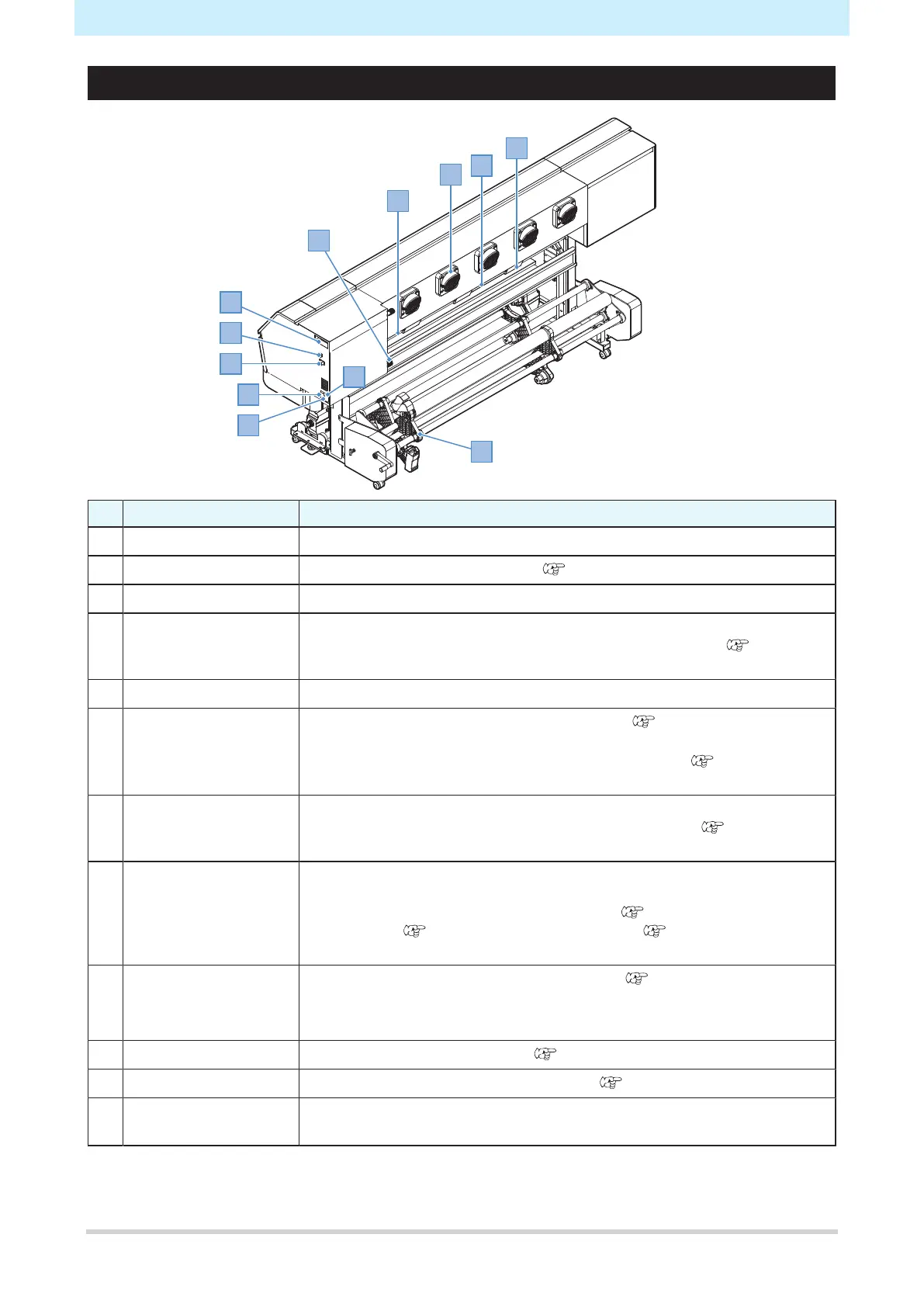

Rear and Right Side View
No. Name Overview
1 Clamp lever Linked to the clamp lever at the front.
2 Media sensor Detects whether media is present. "Media Sensor"(P. 31)
3 Blowing fan Blows air to dry ink after printing.
4 Preheater
*JV/CJV only
Preheats the media before printing to suppress rapid temperature change.
Adjust the temperature setting to suit the type of media used. "Setting
the Heater Temperature"(P. 78)
5 Exhaust fan BOX Discharges air for holding down the media.
6 Feeding unit Compatible with 2-inch and 3-inch paper cores. "Loading the Roll
Media"(P. 67)
JV and CJV can hold three rolls, while TS can hold one. "Feeding
unit"(P. 64)
7 AC inlet
*Only one for TS
The inlet at the rear (INLET1) is for the machine and the inlet at the front
(INLET2) is for the heater. Use the power cable provided. "Connecting
the Power Cable"(P. 36)
8 Main power switch The main power supply for the machine is at the rear. To prevent ejection
failures attributable to the print head (e.g., nozzle clogging or deflection), do
not turn off the main power supply at the rear. "Power supply
switch"(P. 32) "Turning On the Power"(P. 36) "Turning Off the
Power"(P. 37)
9 Heater power supply
switch
*JV/CJV only
The power supply for the heater is at the front. "Setting the Heater
Temperature"(P. 78)
10 LAN port Connects to PC via a LAN cable. "Using a LAN Cable"(P. 39)
11 USB port Connects to PC via a USB interface cable. "Using a USB Cable"(P. 40)
12 Maintenance liquid
cartridge
Used to automatically feed maintenance liquid to the cap, and to prevent ink
solidifying inside the ink discharge channel during maintenance.
To Next Page
