Chapter 1 Before Use
26

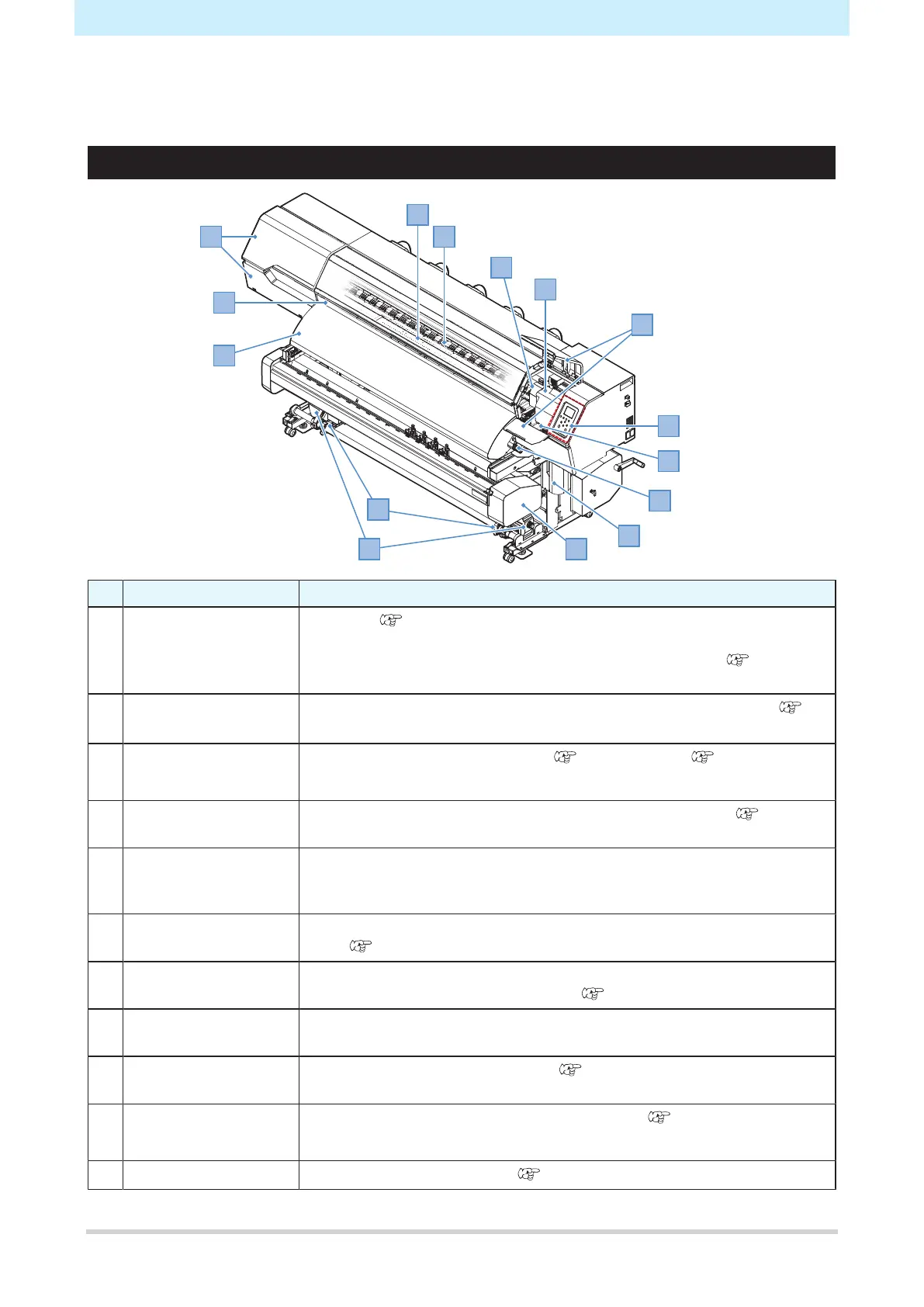

1.1 Part Names and Functions
Front
1
2
3
7
11
4
6
8
5
13
9
10
12
14
5
No. Name Overview
1 Platen Print area. "Platen"(P. 30)
The platen on the JV and CJV is fitted with a heater to prevent ink bleeding.
Adjust the temperature setting to suit the type of media used. "Setting
the Heater Temperature"(P. 78)
2 Pinch roller
Grit roller
The pinch rollers and grit rollers are used to grip and feed the media.
"Pinch Rollers and Grit Rollers"(P. 31)
3 Cutter unit
* CJV only
Holds a cutter and a pen for cutting. "Cutting"(P. 93) "Cutting Data
with Register Marks"(P. 109)
4 Carriage Consists of a print head, the jam sensor, and the media cutter.
"Carriage"(P. 30)
5 Maintenance cover Open the cover to perform maintenance on locations such as the carriage
underside. Printing and automatic maintenance are not possible while the
covers are open.
6 Operating panel Includes operating keys and displays indicating various settings and other
items. "Operating Panel"(P. 33)
7 Station Includes caps for protecting the print head, cloth wipers, and an NCU for
monitoring print head nozzle conditions. "Station"(P. 30)
8 Clamp lever Lowering the clamp lever secures the media. Raising the clamp lever
releases the media. Linked to the clamp lever at the rear.
9 Waste ink tank Contains the container for waste ink. "Waste Ink Tank
Replacement"(P. 215)
10 XY slitter
*JV/CJV only
Cuts the media to the specified size after printing. "Using the XY
Slitter"(P. 121)
11 Take-up unit Rolls up the printed roll media. "Take-up Unit"(P. 60)
