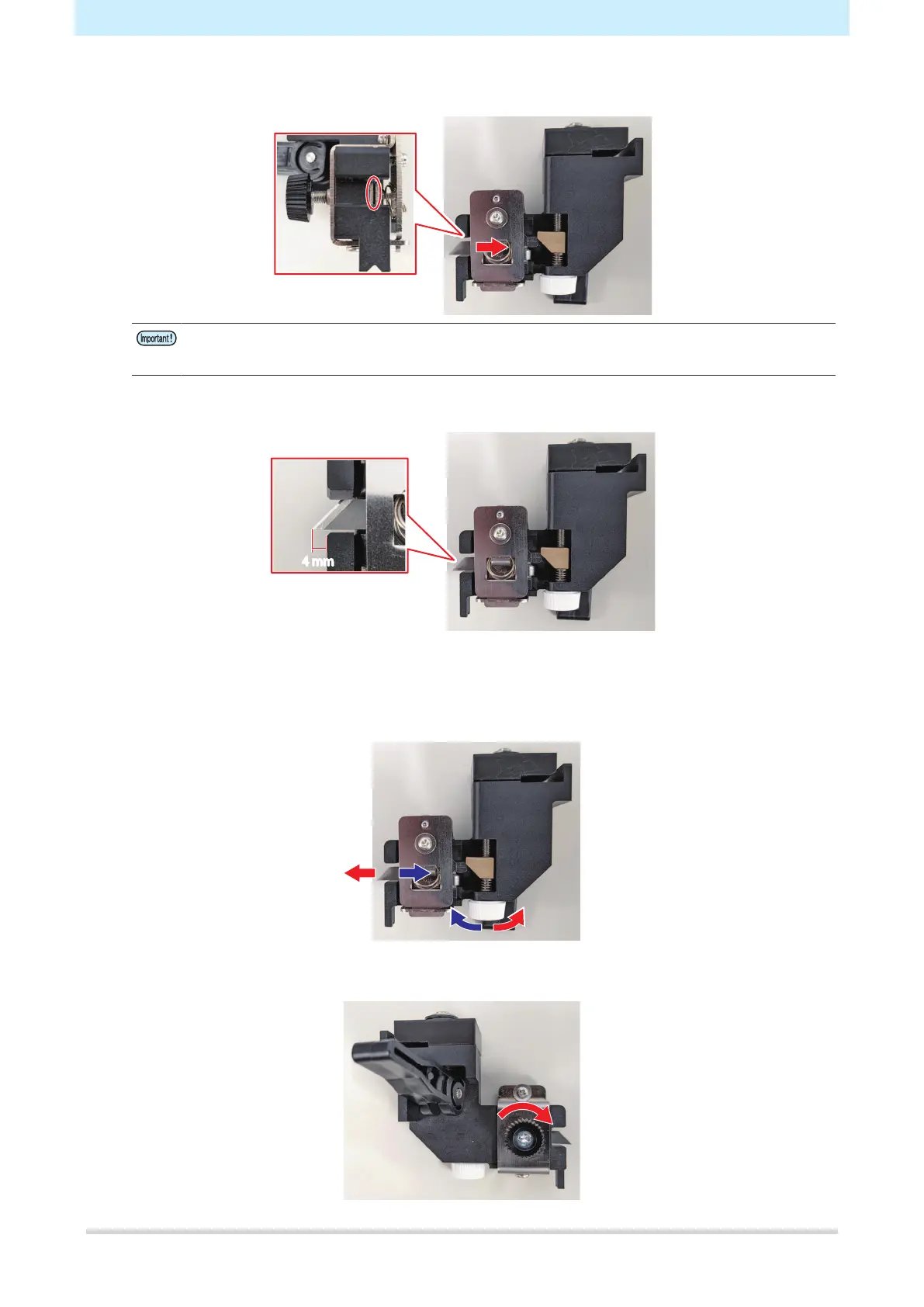

Insert a new X cutter with the blade up until it stops.
• If the blade does not stop, the blade is not positioned correctly. Reposition and insert the
blade again.
4
Check to confirm that the protrusion amount of the blade is 4 mm.
• If not, adjustment is required.
(1) Turn the white knob screw to adjust the protrusion of the blade.
• Turn the screw clockwise to protrude the blade.
• Turn the screw counterclockwise to retract the blade.
5
Tighten the screw to clamp the X cutter.
