Special Imaging Modes
11-11

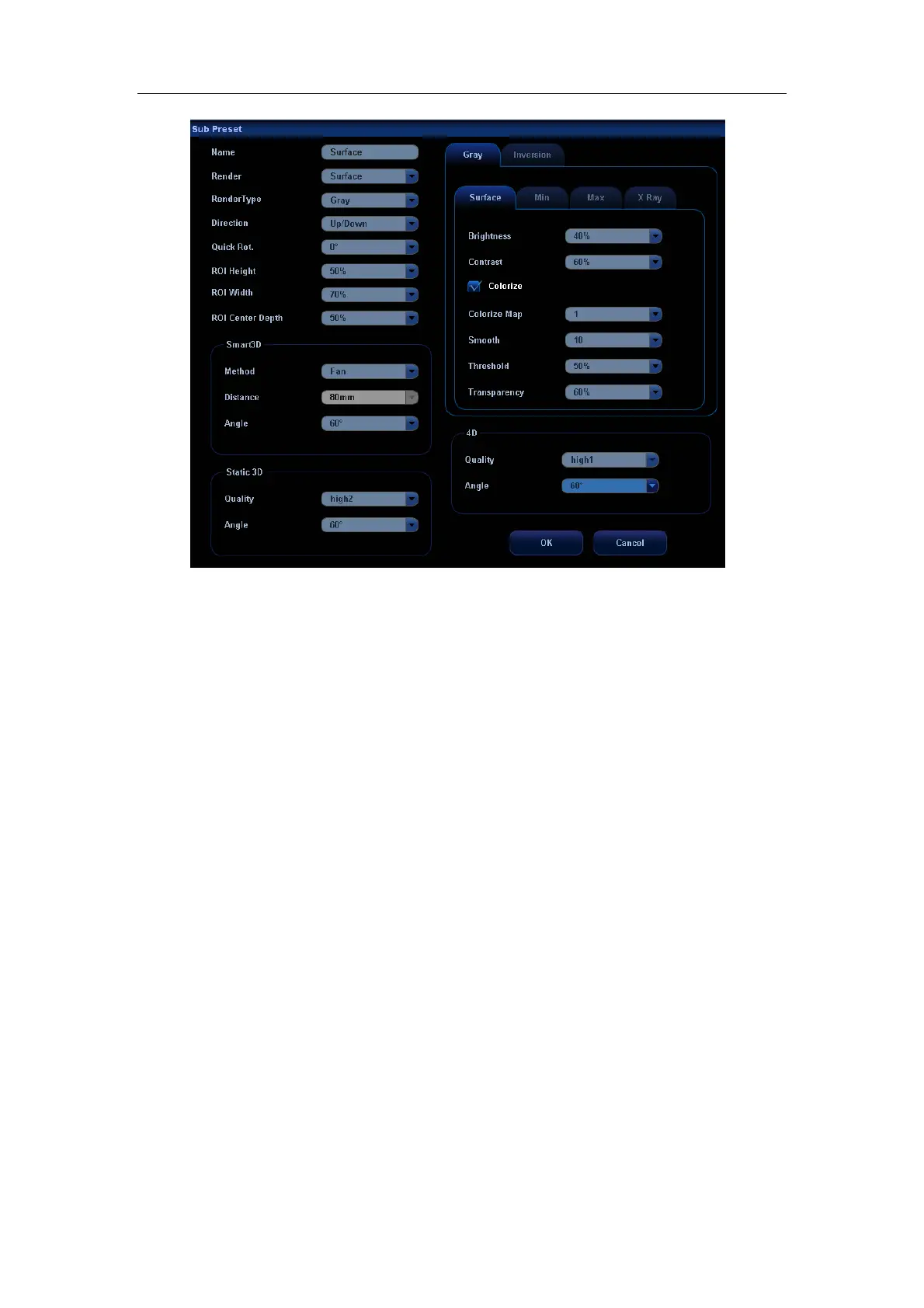

1. Name: move the cursor to the Name column and change the preset package name
by the keyboard.
2. General parameters preset:
h Render: select image rendering mode
h Render type: select the imaging mode
h Direction: select 3D view direction
h Quick Rot.: set the angle for quick rotation.
h ROI Height: set ROI height
h ROI Width: set ROI width
h ROI Center Depth: set ROI center depth
3. Sub modes parameters preset
Set mode-specified parameters of Smart3D, Static 3D or 4D separately.
4. Rendering modes parameters preset
There are two types of rendering modes: grayscale rendering and inversion, both
includes four types: Surface, Max, Min, X Ray. Click a rendering mode tab to preset
its rendering parameters.
Select default preset package for sub modes
After setting preset packages, you can select the default preset package for sub modes.
See the following figure:
