Mindray DC-3

Probes and Biopsy
18-27

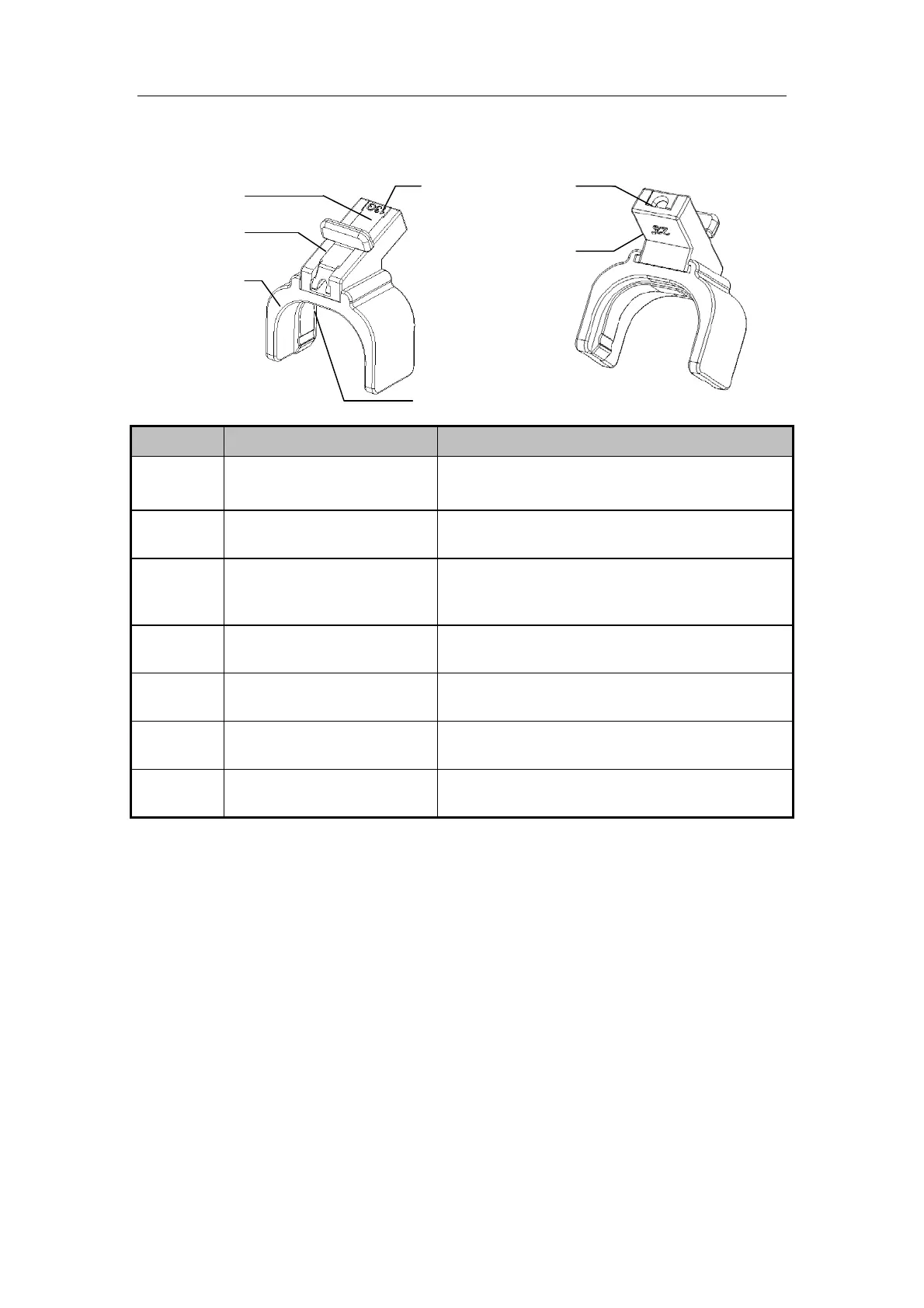

 NGB-008
Plastic/needle-detachable needle-guided bracket:
No. Name Description
<1>
Support of
needle-guided bracket
Used for installing the needle-guided bracket
on the transducer
<2> Angle block
Used for determining the angle of the biopsy;
there are two specifications of blocks of angle
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different
biopsy needles
<4>
Tab of the needle-guided
bracket
Matched with the groove of the transducer
<5>
Specification of guiding
block (13G)
Matched with the corresponding biopsy needle
(13G)
<6>
Guiding hole of the biopsy
needle
Used for installing the biopsy needle
<7>
Specification of angle block
(23°)
Corresponding to the size of the biopsy angle
(23°)
<3>
<4>
<5>
<2>
<1>
<7>
<6>
