Probes and Biopsy
18-28

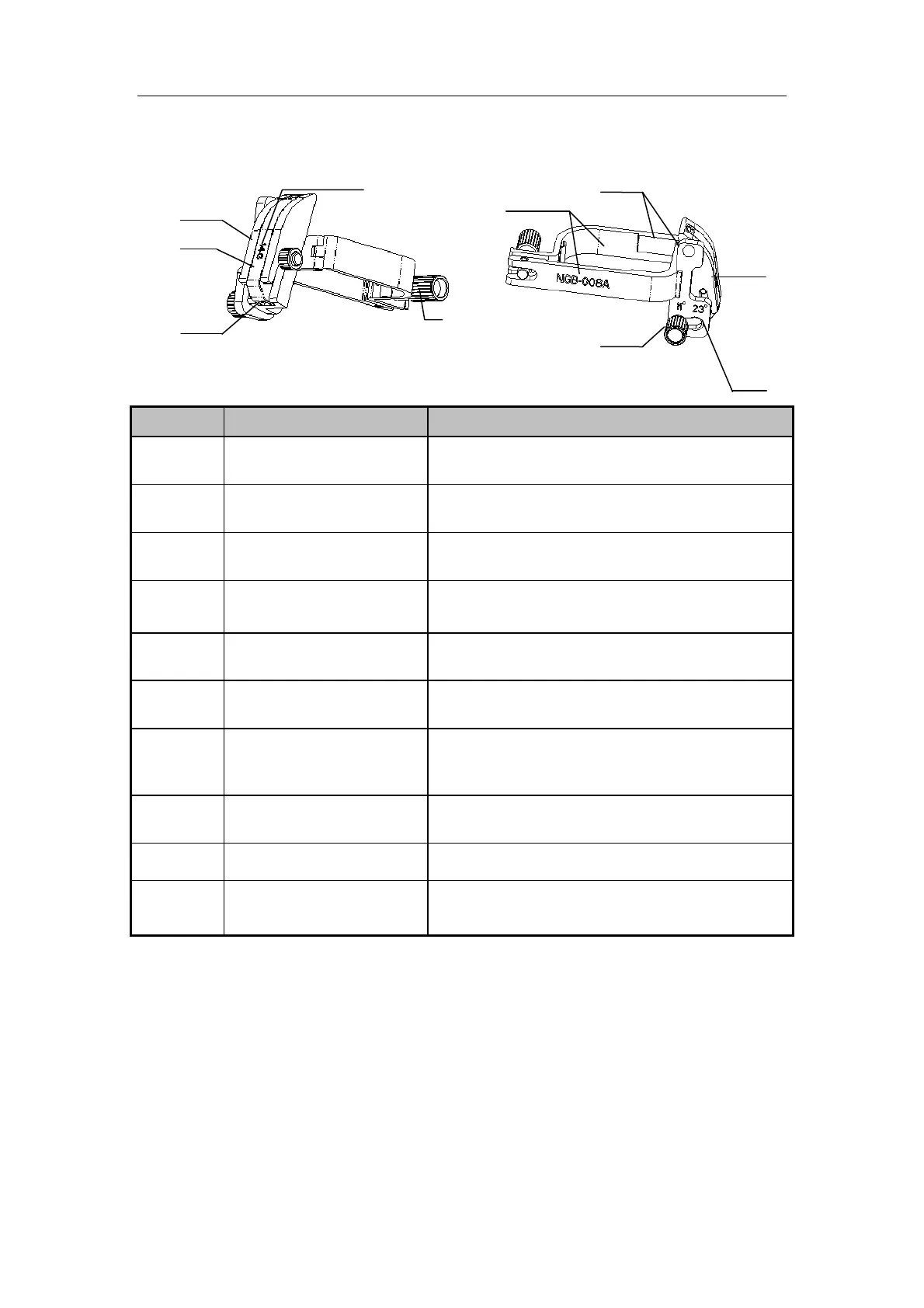

Metal/needle-detachable needle-guided bracket:
No. Name Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on
the transducer
<2>
Groove and tab of
needle-guided bracket
Respectively matched with the tab and groove of
the transducer
<3> Angle adjusting base
There are 2 types of angles available to be
adjusted
<4>
Angle shift sign (11°,
23°)
Matched with the biopsy angle (11°, 23°)
<5> Angle pinch nut Used for fixing the angle lock at a certain angle
<6> Angle block
Used for determining the angle of the biopsy;
different specifications of blocks can be used
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different
biopsy needles
<8>
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle
(14G)
<9> Needle guide hole Used for installing the biopsy needle
<10>
Pinch nut of
needle-guided bracket
Used for locking the
needle-guided bracket and the transducer
<8>
<6>
<7>
<10>
<9>
<3>
<4>
<2>
<5>
<1>
