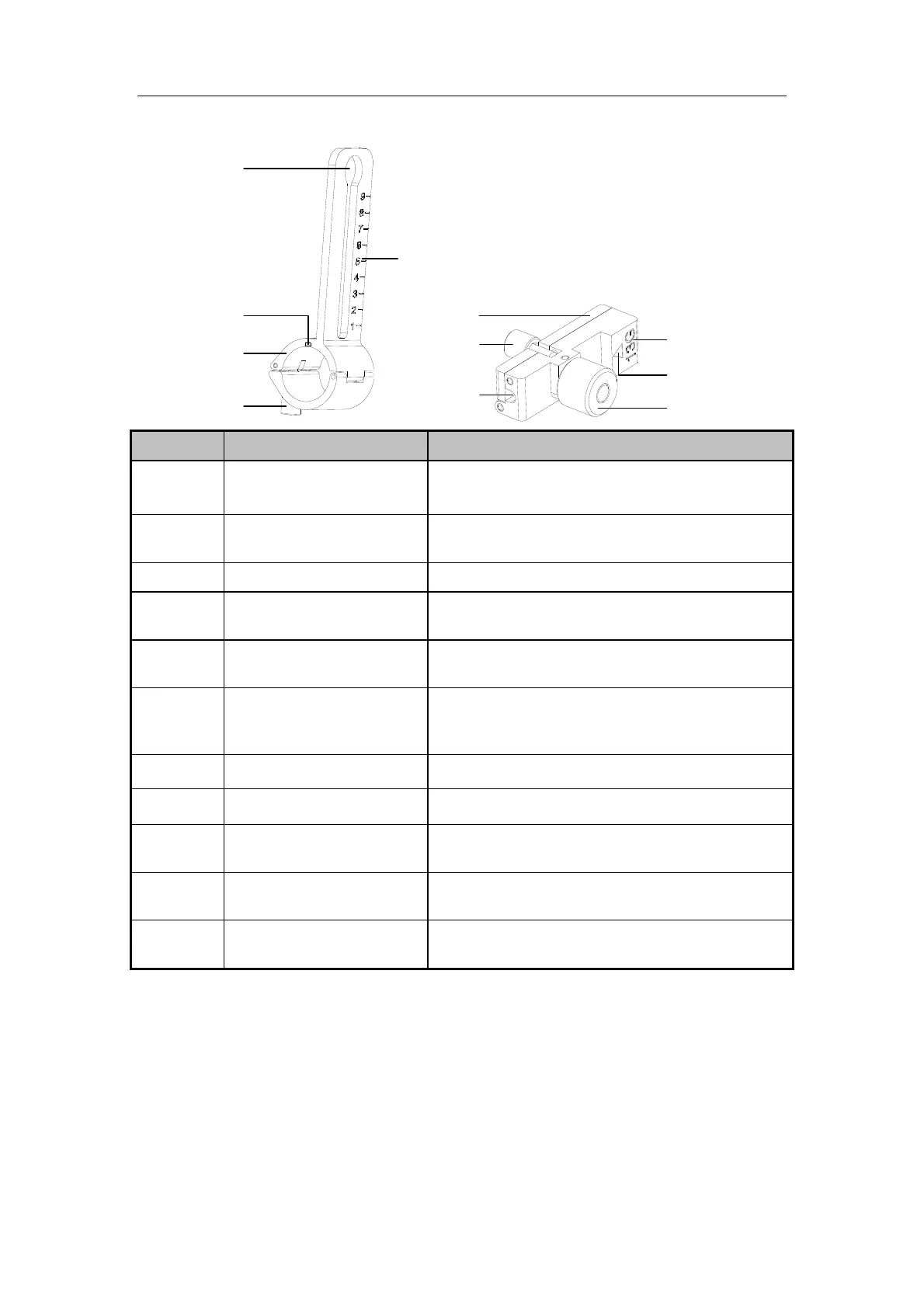

Probes and Biopsy
18-29
îš„ NGB-009
5
1
2
3
4
10
6
7
8
9
11
No. Name Description
<1> Support of
needle-guided bracket
Used for installing the needle-guided bracket on
the transducer
<2> Knob of fixing
needle-guided bracket
Used for fixing the needle-guided bracket on the
transducer
<3> Groove Match with the tab on the transducer
<4> Hole for installing guiding
block
Used for installing the knob of fixing
needle-guided bracket
<5> Needle distance scales Indicate distance between needle and the
transducer head surface
<6> Guiding block Used for installing biopsy needle; there are five
specifications of guiding blocks for different
needles
<7> Knob of fixing the needle Used for fixing the needle
<8> Guiding hole of the needle Used for installing the biopsy needle
<9>
Specification of guiding
block
Matched with the corresponding biopsy needle
<10> Mark of indicating scales Indicating needle distance scales
<11>
Knob of fixing the guiding
block
Used for fixing the guiding block
