Probes and Biopsy
18-39
(5) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.

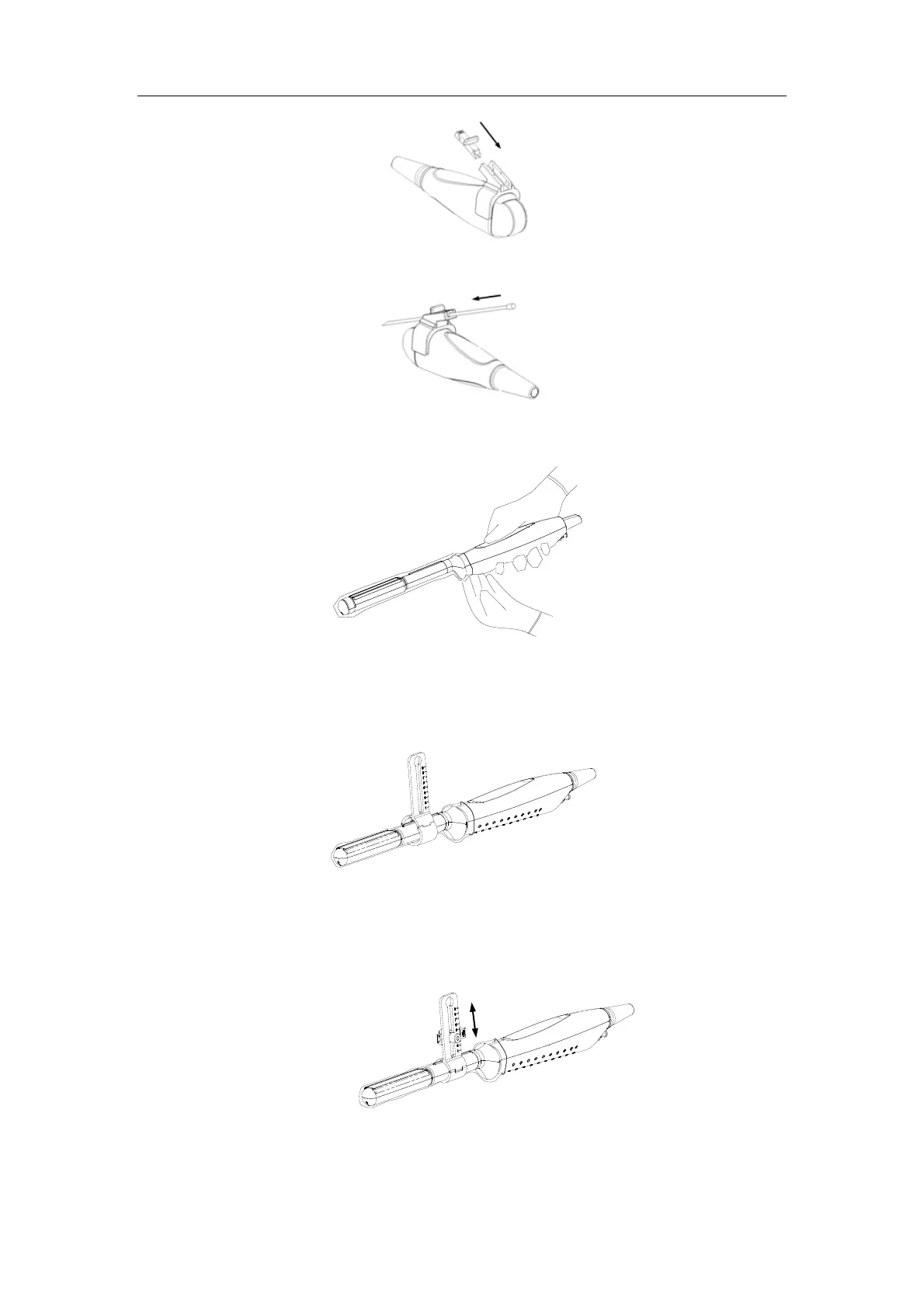

îš„ NGB-009 metal/needle detachable needle-guided bracket
(1) Put on the transducer cover.
(2) Cover the support of needle-guided bracket on the transducer, making the
groove of the needle-guided bracket to match with the tab of the transducer.
Set the needle-guided bracket at the desired position, turn tightly the knob
of fixing needle-guided bracket to fix the needle-guided bracket.
(3) Select a proper guiding block and thread the knob of fixing the guiding block
through the hole of installing guiding block, move the guiding block to the
desired position, then turn tightly the knob of fixing the guiding block to fix
the guiding block on the support of needle-guided bracket.
