Image Modes
10-21
z The [A-Abdomen - All Probe] field on left side of the screen displays the parameter
setup for all transducers in A-Abdomen exam type.
z The [A-Abdomen - 3C5A] field on the right side of the screen displays parameter
setup for the 3C5A transducer in A-Abdomen exam type.
The operation of the image parameter setup uses the drop down menus to make
numerous selections. The following only introduces [Record Current], [Load Factory],
[BIP] and [THI IP], [B Gray Map] and [THI Gray Map].
[Record Current]: Click to store all the currently-used setting and values for each preset
image parameter.
[Load Factory]: Click [Load Factory], and all parameter settings will be restored to the
original factory default.
B IP and THI IP

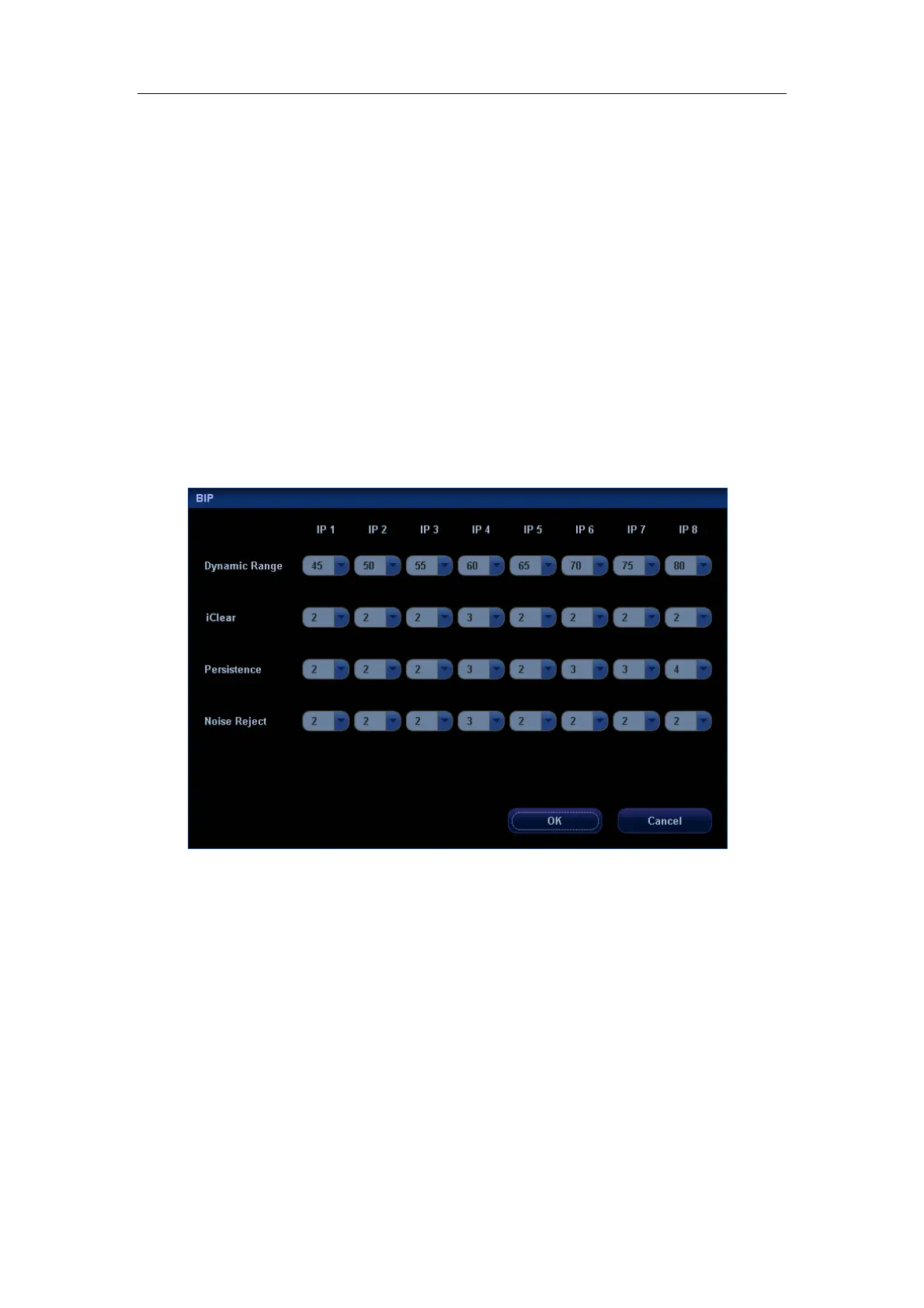

Click the [BIP] or [THI IP] button, and the corresponding IP combination of settings can be
entered, as shown in the figure below. You can set the parameter values of each IP
combination, and click [OK] to store the new setup.
