MANUAL TRANSMISSION OVERHAUL – Input Shaft
22B-22

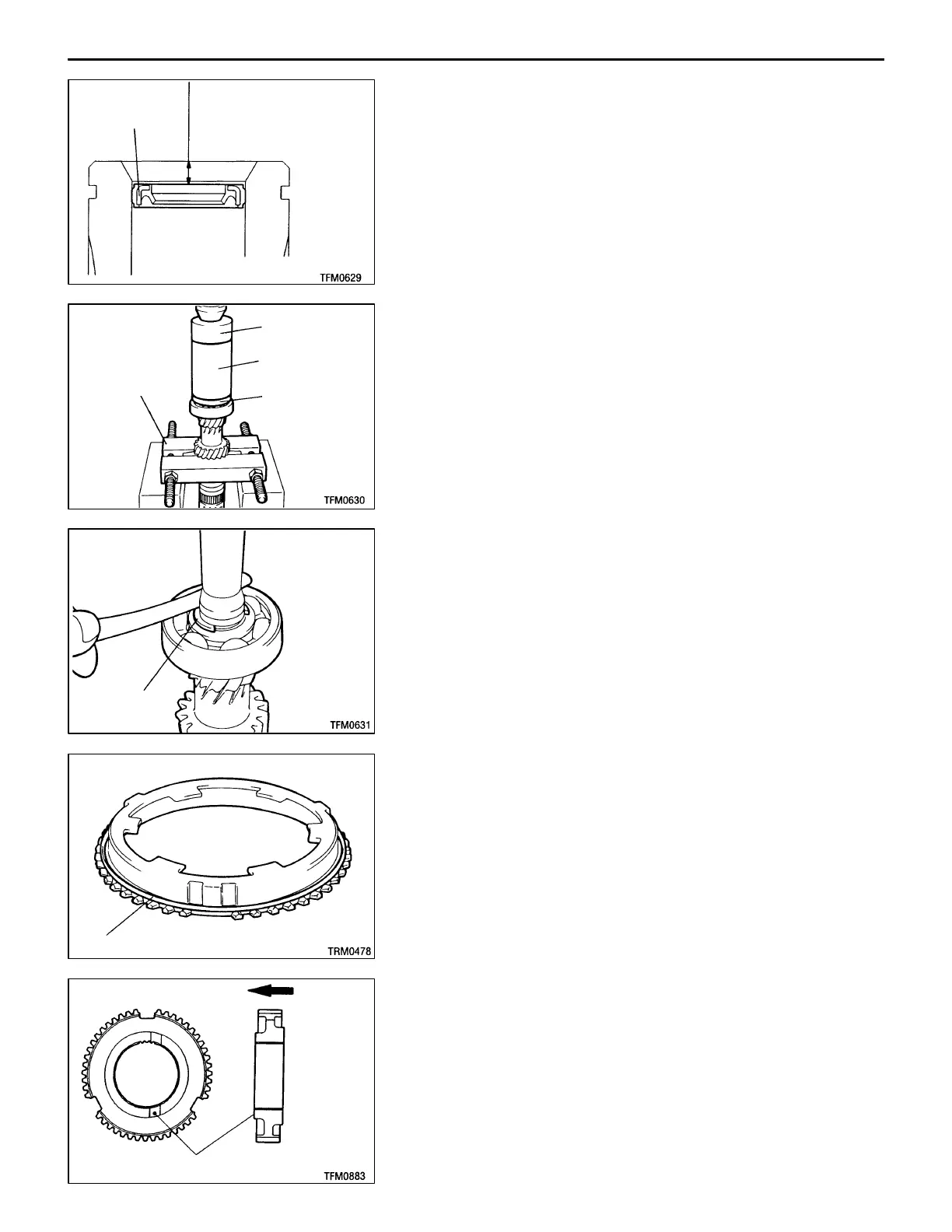

REASSEMBLY SERVICE POINTS
"AA OIL SEAL INSTALLATION
Make sure that the oil seal is pressed into the position shown
in the illustration.
"BA BALL BEARING INSTALLATION
"CA SNAP RING INSTALLATION
Select and install a snap ring so that the input shaft front
bearing end play will have the standard value.
Standard value: 0 – 0.12 mm
"DA SYNCHRONIZER SPRING INSTALLATION
Install the synchronizer spring securely to the illustrated
position of the outer synchronizer ring.
"EA 3RD-4TH SPEED SYNCHRONIZER HUB
INSTALLATION
Install the synchronizer hub in such a way that it will be oriented
in the direction shown.
Oil seal
3.5 mm
MD998801
MD998812
MD998813
MD998818
Snap ring
Synchronizer spring
Installation
direction
Identification mark
To Next Page
