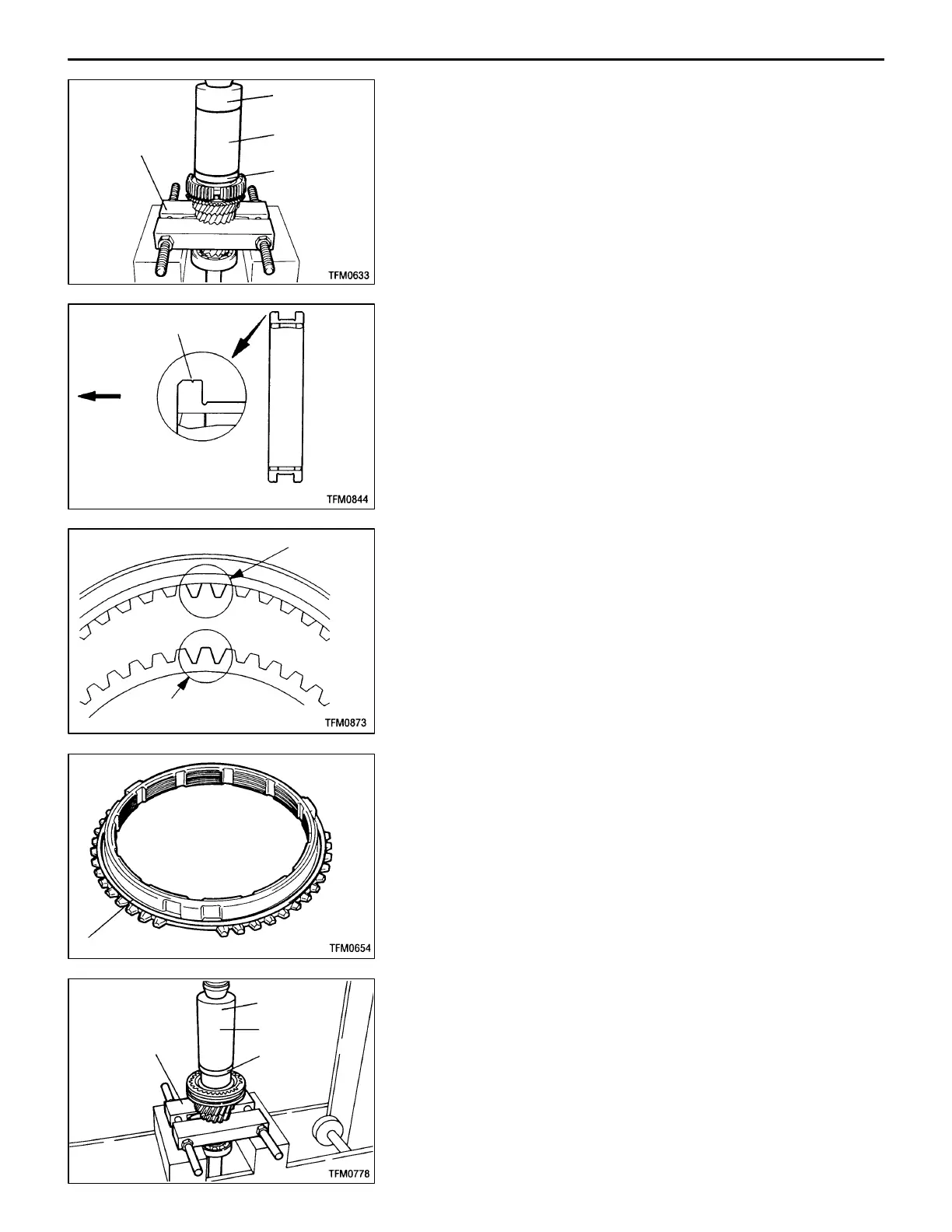

MANUAL TRANSMISSION OVERHAUL – Input Shaft
22B-23
Caution
When the hub is installed, make sure that the synchronizer
ring is not caught.
"FA SYNCHRONIZER SLEEVE INSTALLATION
(1) Install the synchronizer sleeve in such a way that it will
be oriented in the direction shown.
(2) When the synchronizer sleeve is installed, make sure
that the deep groove portion of the synchronizer hub
is aligned with the projecting portion of the sleeve.
"GA SYNCHRONIZER SPRING INSTALLATION
"HA 4TH SPEED GEAR SLEEVE INSTALLATION
MD998801
MD998812
MD998813
MD998825
Identification groove
Installation
direction
Synchronizer sleeve projections
Synchronizer hub
deep grooves
Synchronizer spring
MD998801
MD998812
MD998813
MD998825
