MANUAL TRANSMISSION OVERHAUL – Input Shaft
22B-24

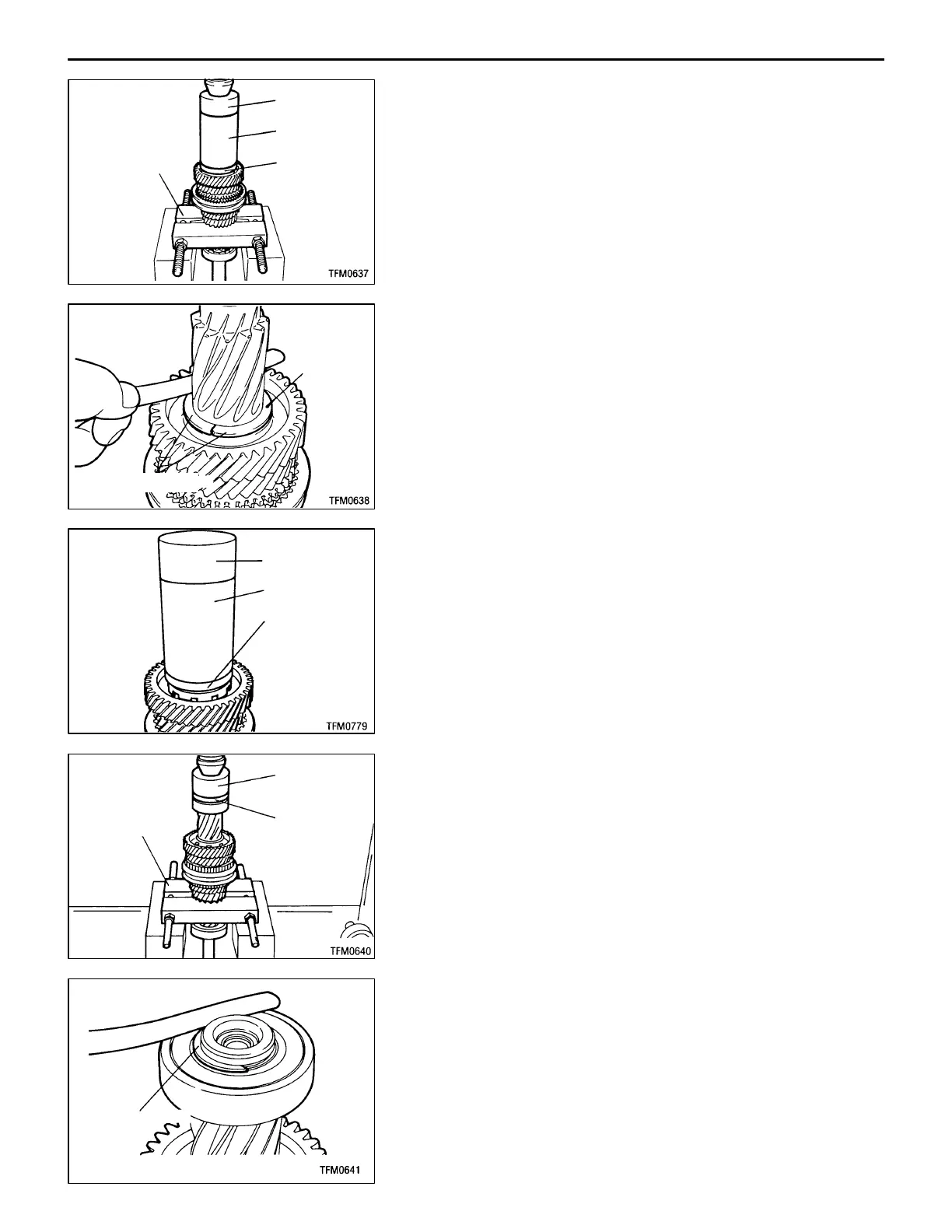

"IA 5TH SPEED GEAR INSTALLATION
"JA THRUST PLATE INSTALLATION
Select and install a thrust plate so that the input shaft 5th
speed gear clearance will have the standard value.
Standard value: 0 – 0.09 mm
Caution
Install the plate with its identification stamped surface
faced against the thrust plate stopper.
"KA THRUST PLATE STOPPER INSTALLATION
Install the thrust plate stopper by pressing the special tools
with hand. Make sure that the stopper is not installed aslant.
"LA BALL BEARING INSTALLATION
"MASNAP RING INSTALLATION
Select and install a snap ring so that the input shaft rear
bearing clearance will have the standard value.
Standard value: 0 – 0.12 mm
MD998801
MD998812
MD998813
MD998825
Stamped
surface
Thrust plate
MD998812
MD998813
MD998825
MD998812
MD998819
MD998801
Snap ring
