MANUAL TRANSMISSION OVERHAUL – Output Shaft
22B-30

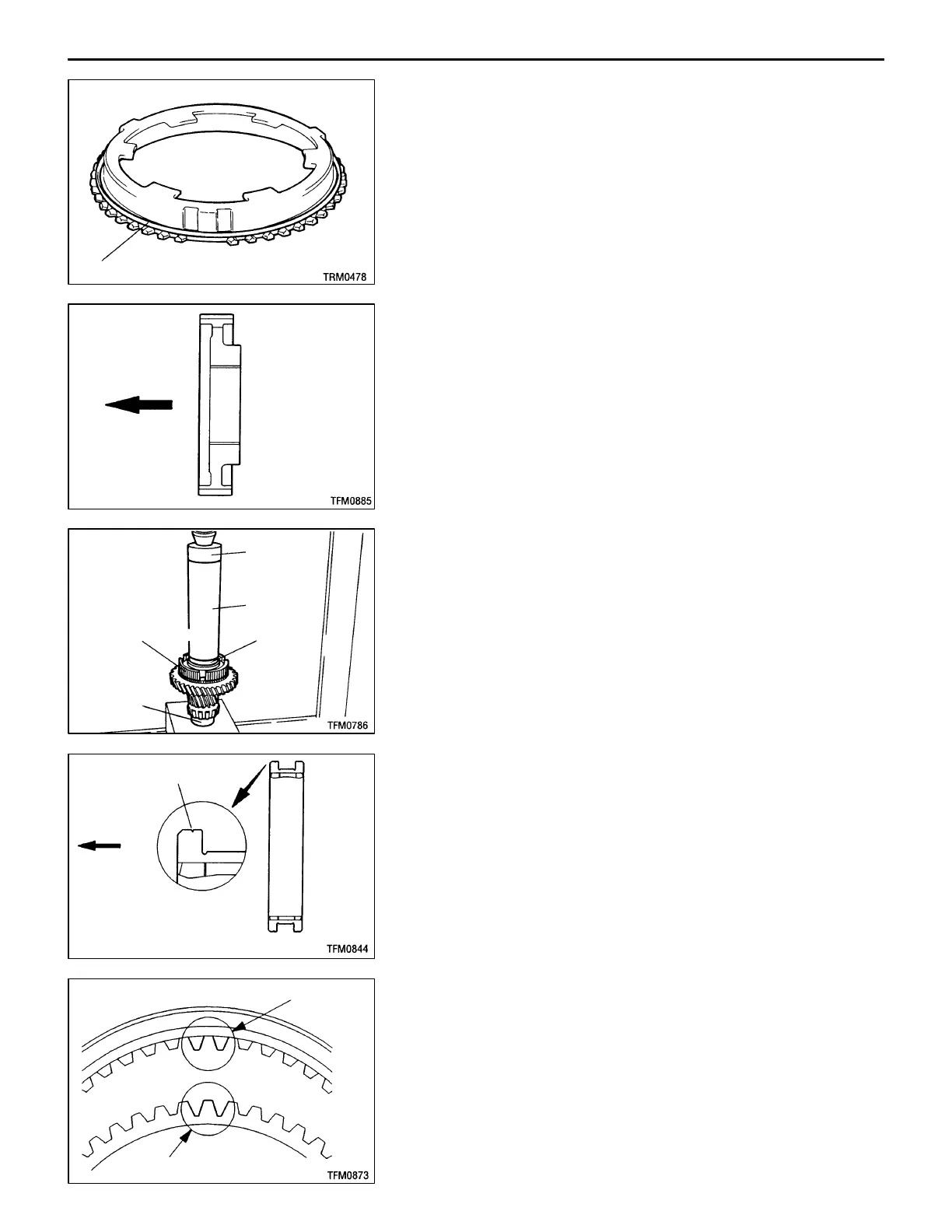

"DA SYNCHRONIZER SPRING INSTALLATION
"EA 1ST-2ND SPEED SYNCHRONIZER HUB
INSTALLATION
Install the 1st-2nd speed synchronizer hub in such a way
that it will be oriented in the direction shown.
Caution
When the hub is installed, make sure that the synchronizer
ring is not caught.
"FA SYNCHRONIZER SLEEVE INSTALLATION
(1) Install the synchronizer sleeve in such a way that it will
be oriented in the direction shown.
(2) When the synchronizer sleeve is installed, make sure
that the deep groove portion of the synchronizer hub
is aligned with the projecting portion of the sleeve.
Synchronizer spring
Installation
direction
1st-2nd speed
synchronizer
hub
MD998364
MD998824
MD998812
MD998814
Identification groove
Installation
direction
Synchronizer sleeve projections
Synchronizer hub deep grooves
