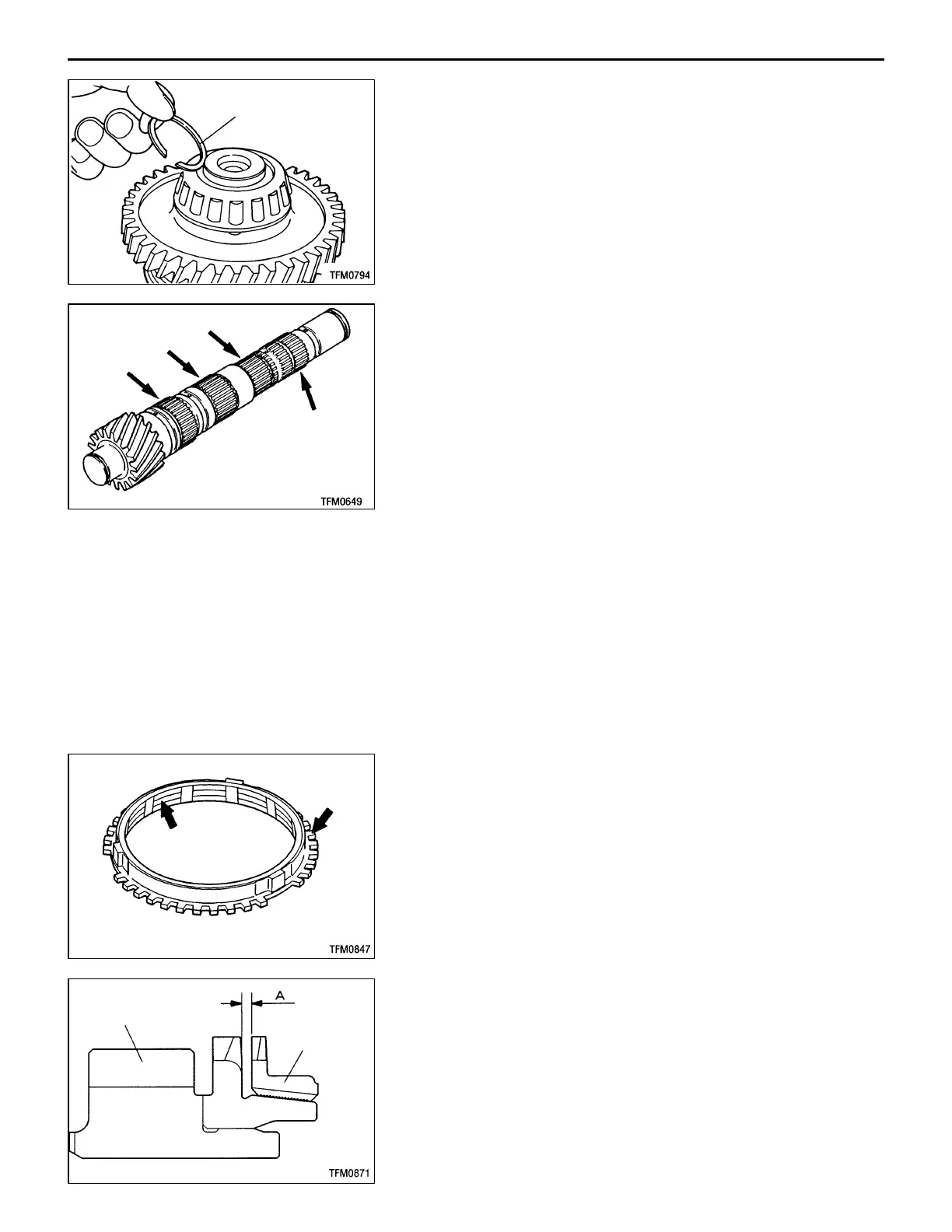

MANUAL TRANSMISSION OVERHAUL – Output Shaft
22B-33
"PA SNAP RING INSTALLATION
Select and install a snap ring so that the output shaft rear
bearing clearance will have the standard value.
Standard value: 0 – 0.09 mm
INSPECTION
OUTPUT SHAFT
Check the splines for damage and wear.
NEEDLE ROLLER BEARING
(1) Check to ensure that when the bearing sleeve and gear
are combined and made to rotate, they rotate smoothly
without looseness and noise.
(2) Check the cage for deformation.
SYNCHRONIZER RING
(1) Check to ensure that the clutch gear tooth surfaces are
not damaged and broken.
(2) Check to ensure that the cone inside diameter is not
damaged or worn and that the threads are not crushed.
(3) Press the synchronizer ring against the gear and check
clearance “A”. If “A” is less than the limit, replace.
Limit: 0.5 mm
Snap ring
Gear
Synchronizer
ring
To Next Page
