MANUAL TRANSMISSION OVERHAUL – Output Shaft
22B-32

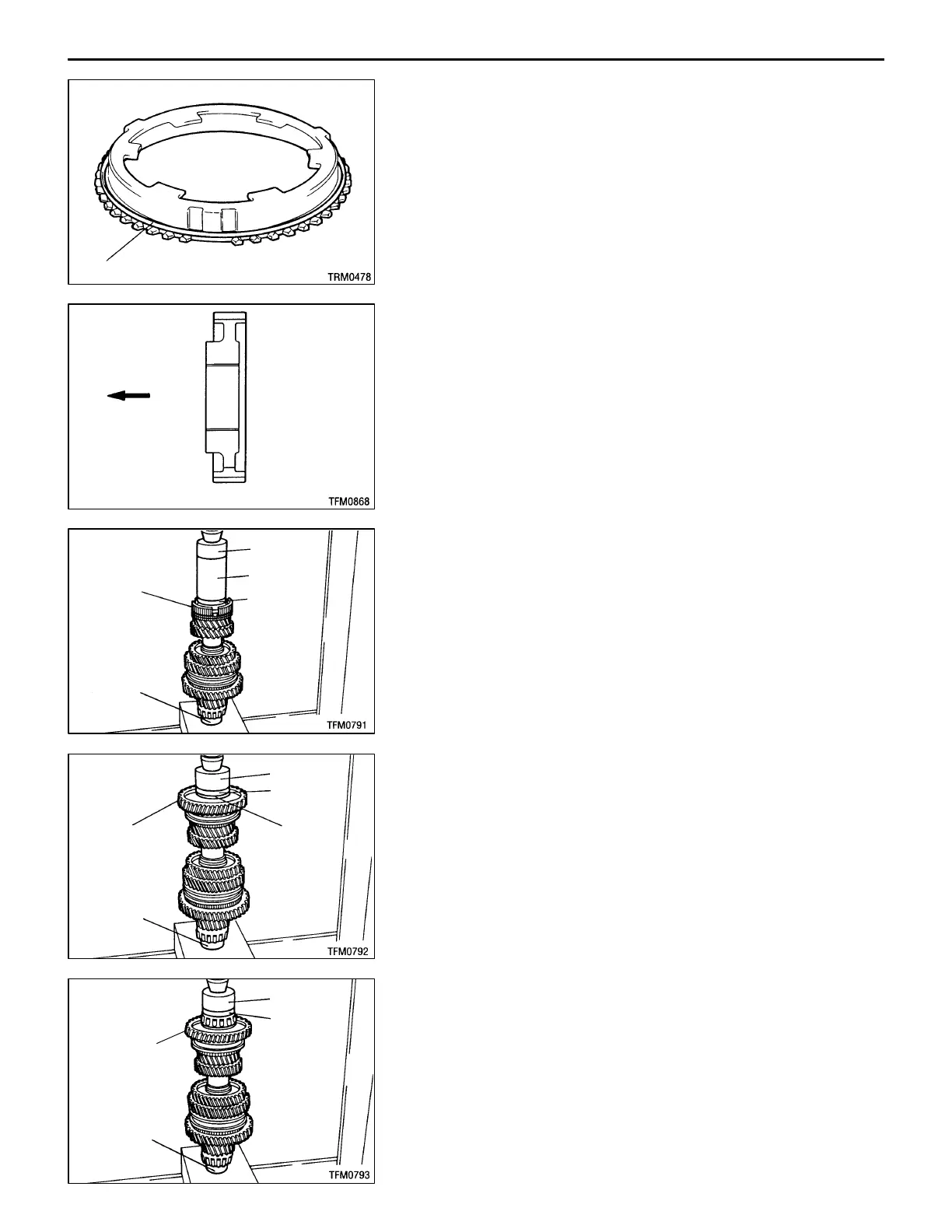

"LA SYNCHRONIZER SPRING INSTALLATION
"MA5TH-REVERSE SPEED SYNCHRONIZER HUB
INSTALLATION
Install the 5th-reverse speed synchronizer hub in such a way
that it will be oriented in the direction shown.
Caution
When the hub is installed, make sure that the synchronizer
ring is not caught.
"NA REVERSE GEAR / NEEDLE ROLLER BEARING /
REVERSE GEAR BEARING SLEEVE
INSTALLATION
"OA TAPER ROLLER BEARING INSTALLATION
Synchronizer spring
Installation
direction
5th-reverse speed
synchronizer hub
MD998364
MD998812
MD998813
MD998821
Reverse gear
Reverse gear
bearing sleeve
MD998364
MD998812
MD998820
Taper roller
bearing
MD998364
MD998812
MD998819
