PARKING BRAKE – Parking Brake Cable
36-5

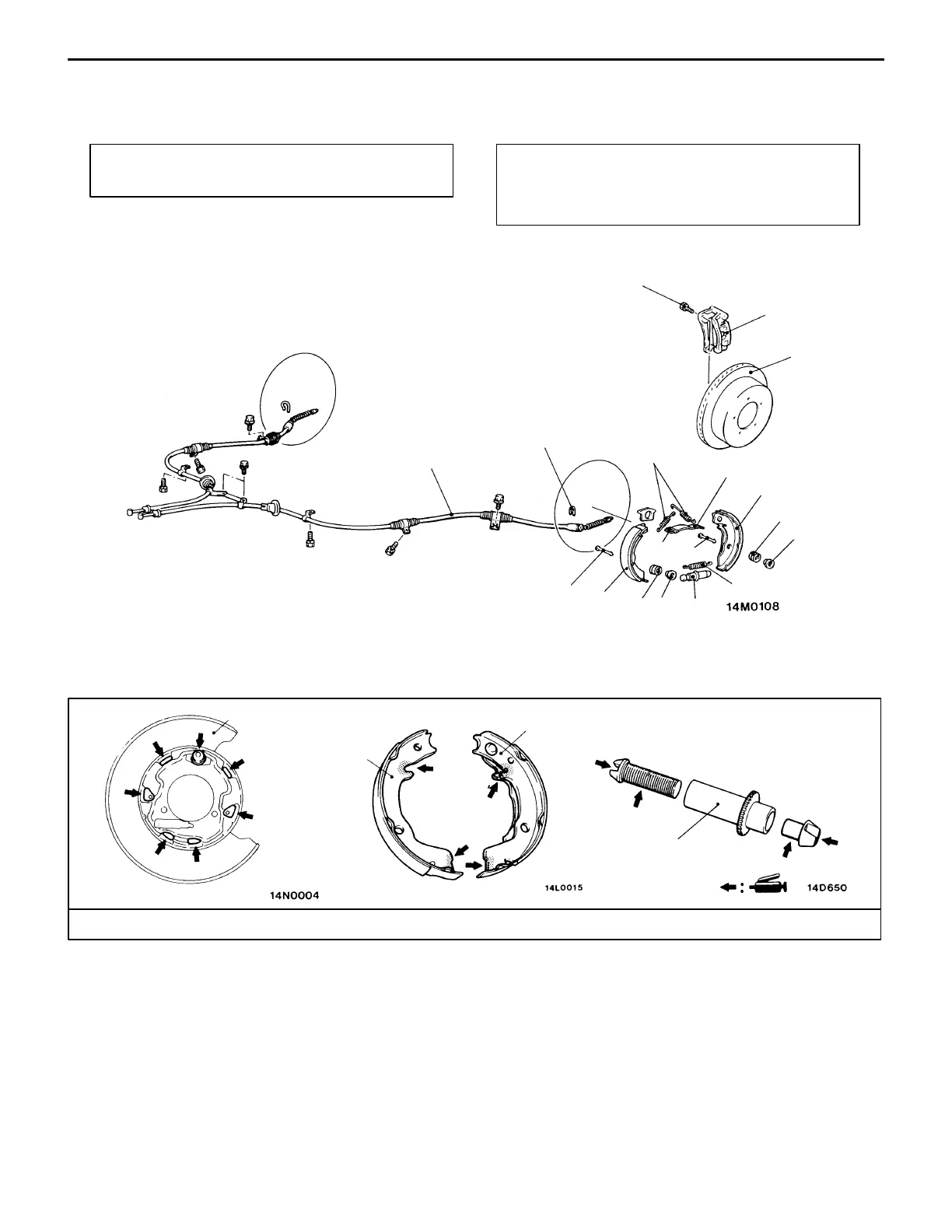

PARKING BRAKE CABLE
REMOVAL AND INSTALLATION
Pre-removal Operation
D Floor Console and Rear Seat Removal
Post-installation Operation
(1) Parking Brake Lever Stroke Check and Adjustment
(Refer to P.36-3.)
(2) Floor Console and Rear Seat Installation
1
2
3
4
5
6
7
8
9
10
11
12
13
Unit: Nm {kgf@m}
49 – 59
{5.0 – 6.0}
Backing plate
Brake grease: CHUO YUKA AKB100
10
11
9
8
11
11
5
Removal steps
AA" 1. Rear brake caliper assembly
2. Rear brake disc
"BA 3. Shoe-to-anchor spring
4. Adjusting screw spring
"AA 5. Adjuster
6. Strut
7. Strut return spring
AB" 8. Shoe hold-down cup
9. Shoe hold-down spring
10. Shoe hold-down pin
11. Shoe and lining assembly
12. Clip
13. Parking brake cable
To Next Page
