PARKING BRAKE – Parking Brake Cable
36-6
REMOVAL SERVICE POINTS
AA" REAR BRAKE CALIPER ASSEMBLY REMOVAL
Remove the rear brake caliper assembly and support it with
wire or similar.

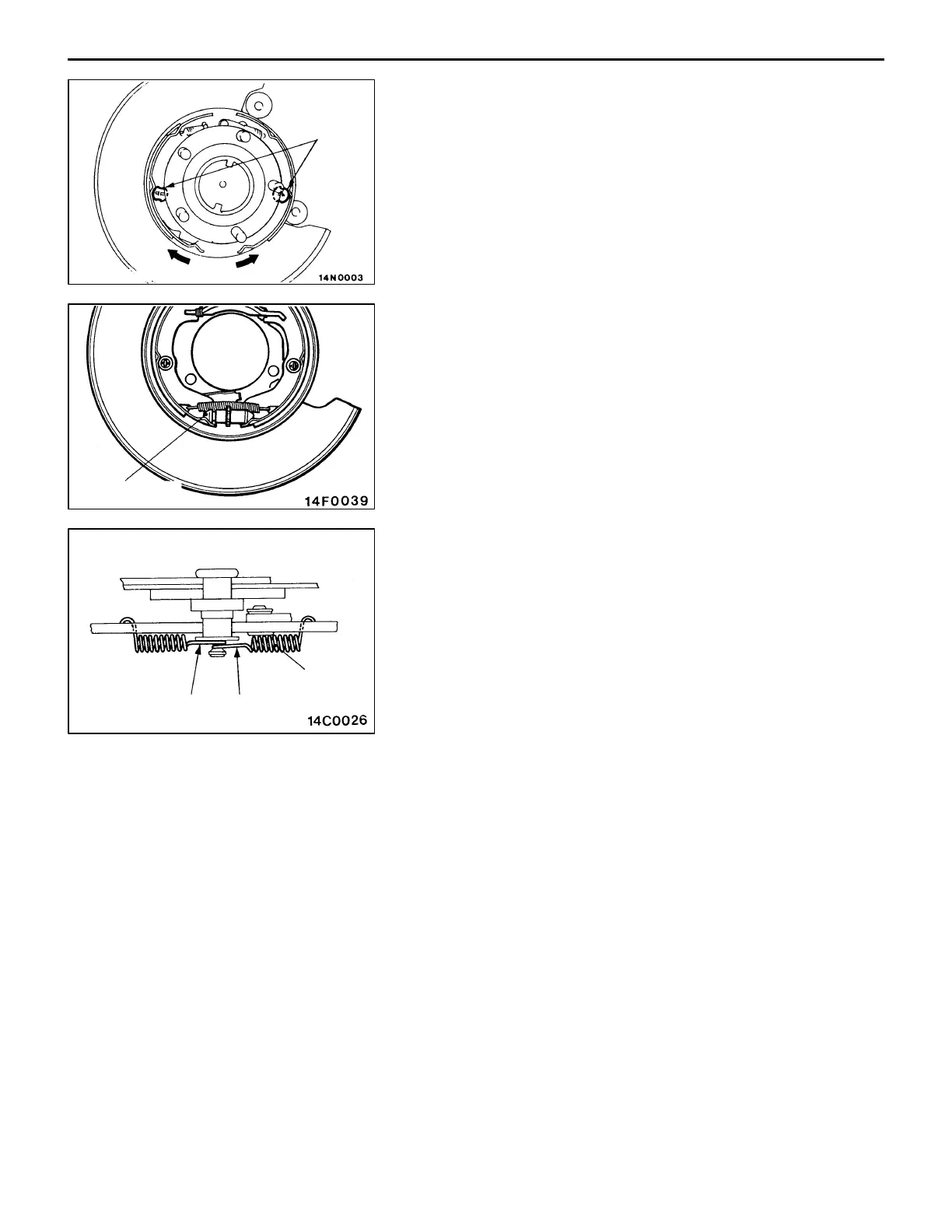

AB" SHOE HOLD-DOWN CUP REMOVAL
Extend the shoe and lining assembly, and remove the shoe
hold-down cup.
INSTALLATION SERVICE POINTS
"AA ADJUSTER INSTALLATION
Install the adjuster so that the shoe adjusting bolt of left hand
wheel is attached towards the front of the vehicle, and the
shoe adjusting bolt of right hand wheel is towards the rear
of the vehicle.
"BA SHOE-TO-ANCHOR SPRING INSTALLATION
Install the shoe-to-anchor springs in the order shown in the
illustration.
Caution
The load on the respective shoe-to-anchor springs is
different, so the spring in the figure has been painted.
NOTE
The figure shows the left wheel; for the right wheel, the position
is symmetrical.
Shoe
hold-down
cup
Shoe adjusting
bolt
Rear
(Painted)
1
2
To Next Page
