PARKING BRAKE – Parking Brake Drum
36-7

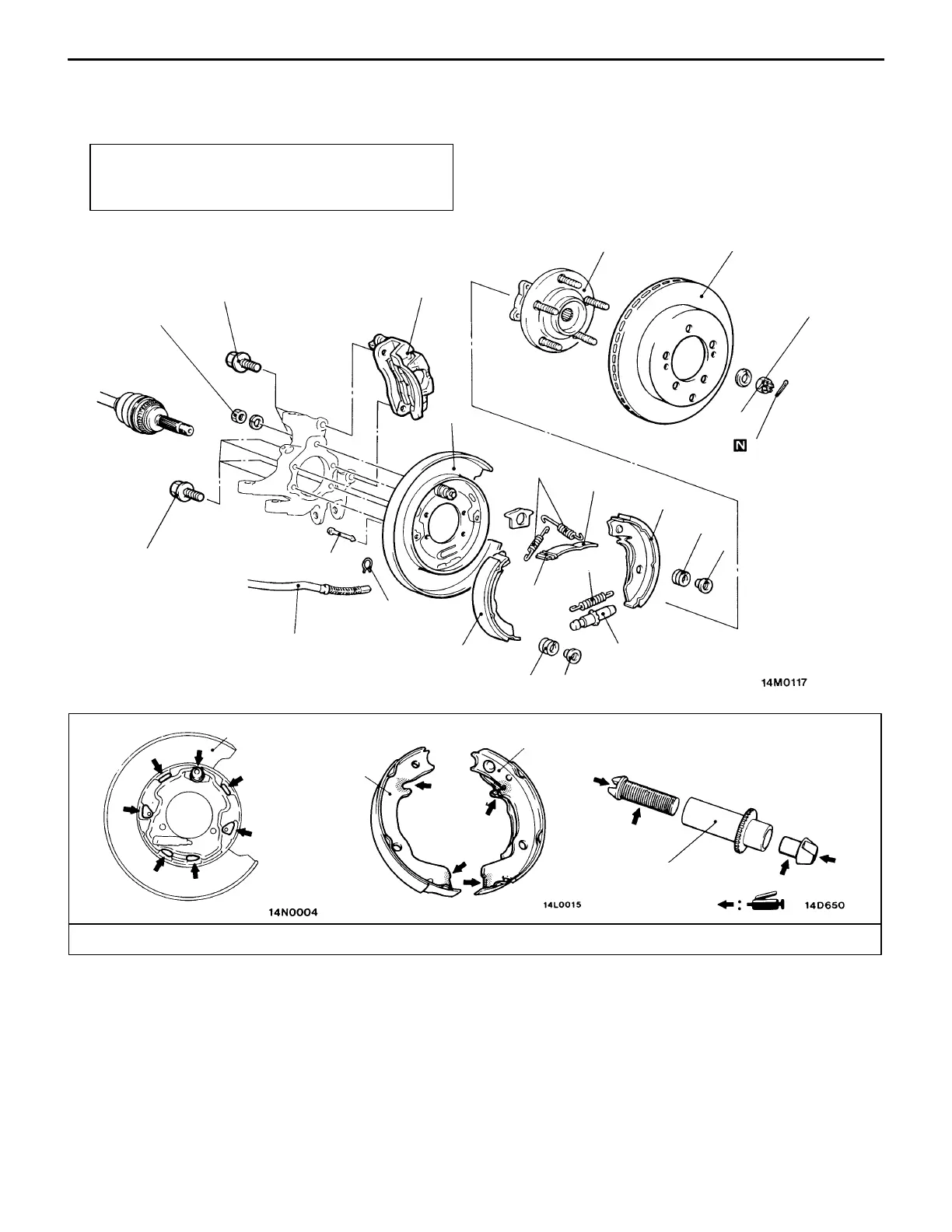

PARKING BRAKE DRUM
REMOVAL AND INSTALLATION
Post-installation Operation
D Parking Brake Lever Stroke Check and Adjustment
(Refer to P.36-3.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Unit: Nm {kgf@m}
118 {12.0}
49 – 59
{5.0 – 6.0}
Brake grease: CHUO YUKA AKB100
11
11
5
196 – 255
{20.0 – 26.0}
11
9
8
74 – 88
{7.5 – 9.0}
17
Removal steps
1. Rear brake caliper
(Refer to P.36-6.)
2. Rear brake disc
3. Shoe-to-anchor spring
(Refer to P.36-6.)
4. Adjusting screw spring
5. Adjuster
6. Strut
7. Strut return spring
8. Shoe hold-down cup
(Refer to P.36-6.)
9. Shoe hold-down spring
10. Shoe hold-down pin
11. Shoe and lining assembly
12. Clip
13. Parking brake cable
14. Split pin
AA""AA 15. Drive shaft nut
AB" 16. Rear hub assembly
17. Backing plate
To Next Page
