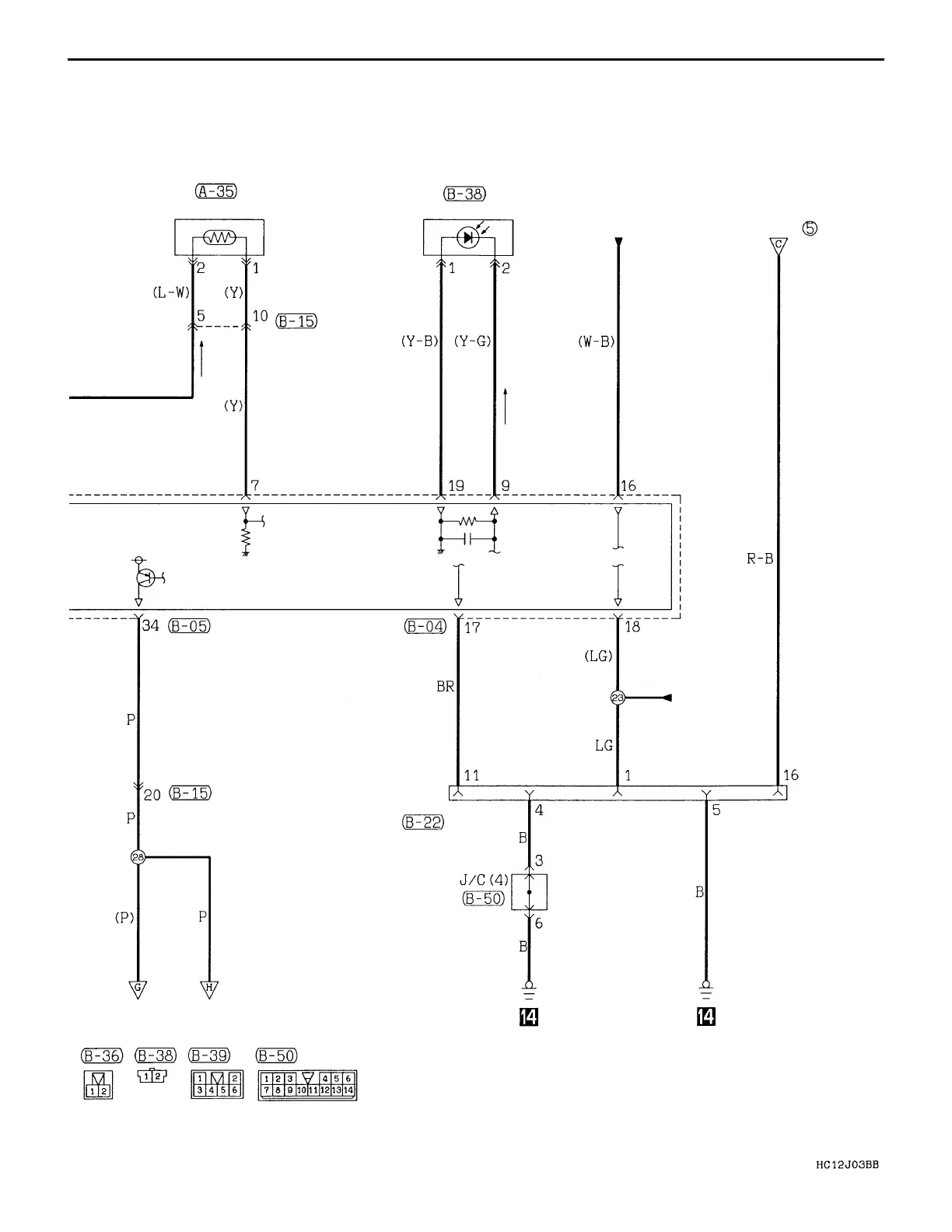

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
OUTSIDE AIR TEMPERATURE SENSOR
SUNLIGHT SENSOR
DEFOGGER
• ANTI-LOCK
BRAKE
SYSTEM
• ENGINE CON-
TROL SYSTEM
• CENTRAL
DOOR LOCK-
ING SYSTEM
<VEHICLES
WITH KEYLESS
ENTRY SYS-
TEM>
DIAGNOSIS
CONNECTOR
MULTI-PURPOSE
FUSE
B-67
