Mitsubishi LANCER EVOLUTION-V 1998 - Page 72

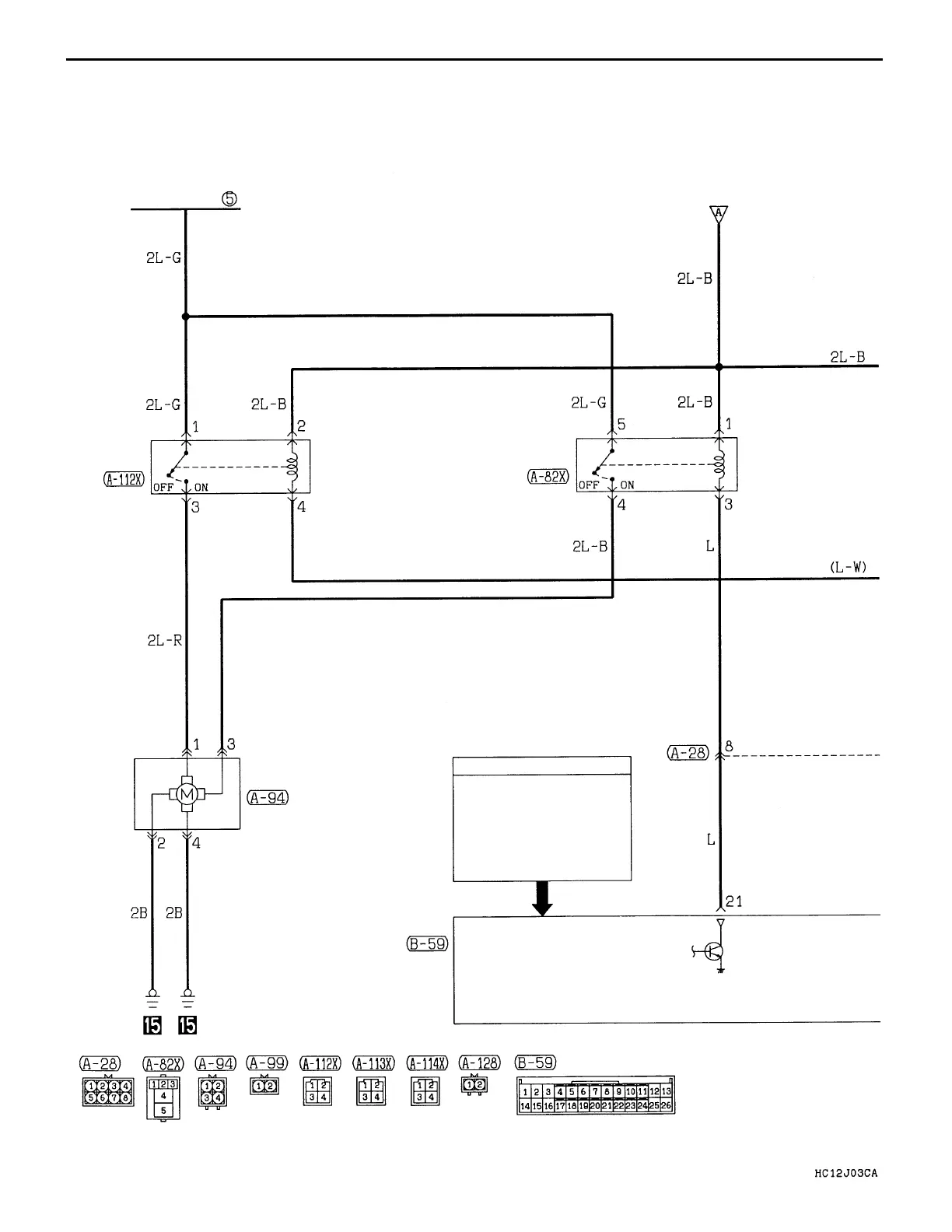

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
FUSIBLE LINK
IGNITION
SWITCH (IG2)
RADIATOR
FAN MOTOR
RELAY (HI)
RADIATOR
FAN MOTOR
RELAY (LO)
RADIATOR
FAN MOTOR
INPUT SIGNAL
• A/C SWITCH
• IDLE SWITCH
• CRANK ANGLE SENSOR
• VEHICLE SPEED SENSOR
• ENGINE COOLANT
TEMPERATURE SENSOR
• THROTTLE POSITION
SENSOR
ENGINE-ECU
B-68
FULLY AUTOMATIC AIR CONDITIONER (CONTINUED)
