Chapter 13 ANALOG OUTPUT

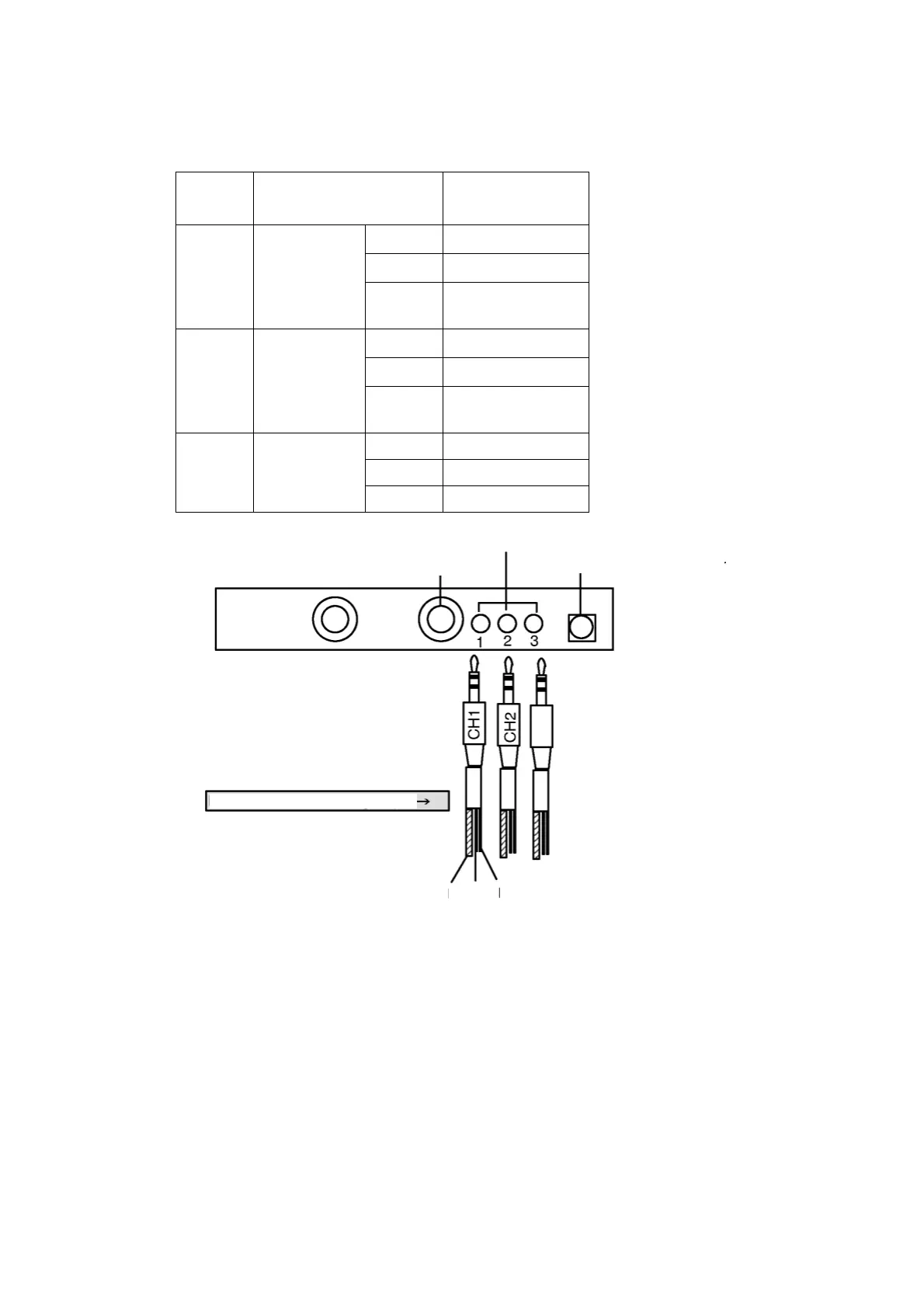

13.1 Output Terminal Connection
F-52, 53, 54, 55 169
● F-53 to F-55
Terminal
No.
Connection cable Output
1 For CH1 Shield
CH1Ground
Red CH1 Temperature
White
CH1 measure-
ment data
2 For CH2 Shield
CH2Ground
Red CH2 Temperature
White
CH2 measure-
ment data
3 For alarm Shield Alarm ground
Red
CH1 alarm
White
CH2 alarm
BNC connector
Shield
White
Red
Alarm
Exclusive cable for analog output
Serial communication connector
Analog output terminal
