1.6 Connecting The Electrode and the Power Source
1.6.1 Connecting the Electrode

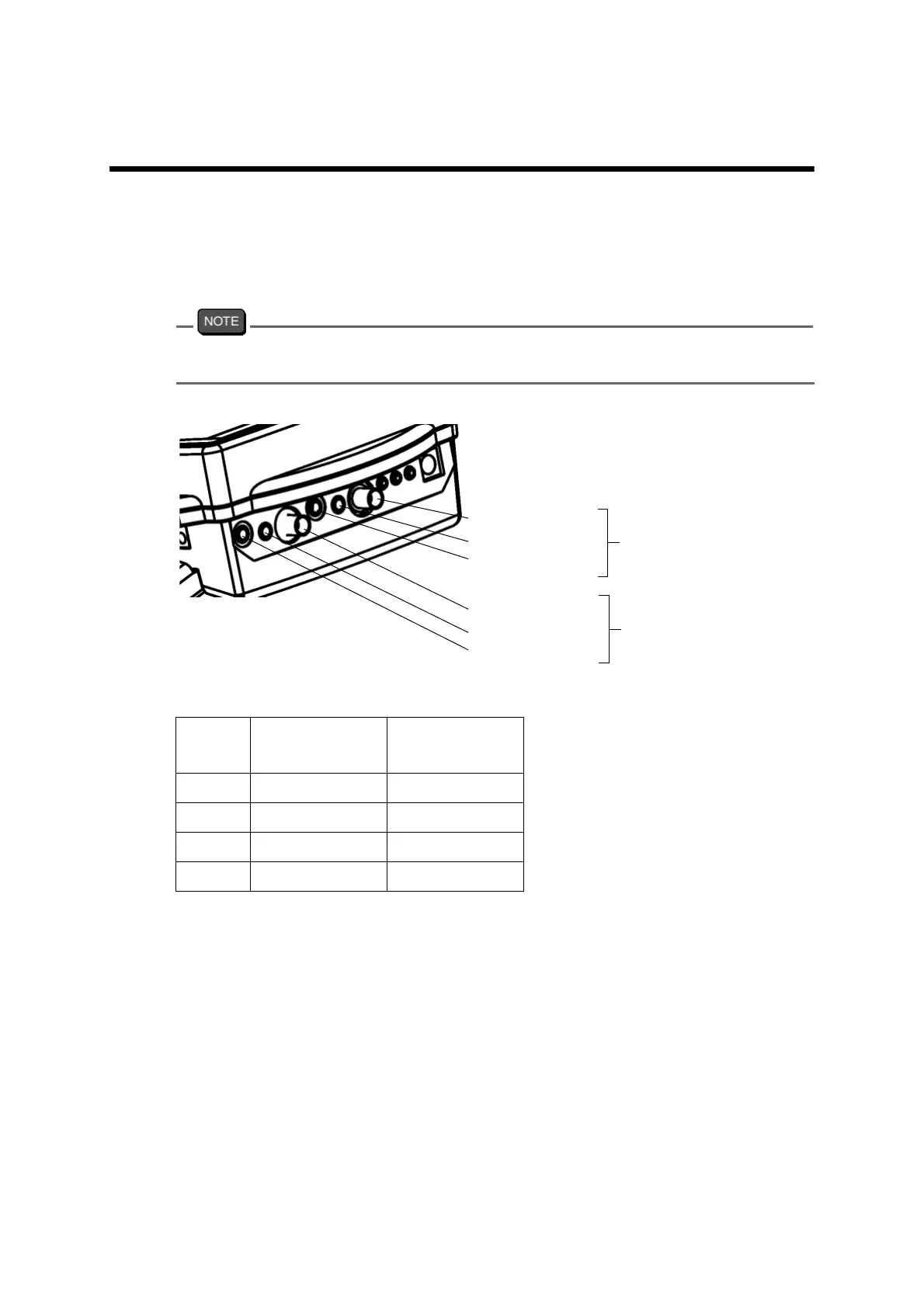

Connect the F-series pH meter and the electrode in the following procedure.
When setting the electrode to the meter, be sure not to get any connectors wet. Do not touch
the connectors with dirty hands.
The connectors to the meter depend on the electrode types as follows:
Measurement electrode G
Referential electrode R
In using the electrodes of pH, ORP, and/or of Ion for those other than the referential
electrode combination type, connect the referential electrodes. Do not use this type
of electrode when the electrodes of pH, ORP, and/or of Ion are not the referential
electrode combination type.
Temperature connector (T)
Temperature connector
CH2
Meas. electrode G
CH1
Temp. electrode T
Ref. electrode R
Meas. electrode G
Temp. electrode T
Ref. electrode R
Measurement
electrode CH1
Measurement
electrode CH2
F-52 pH/ORP
−
F-53 pH/ORP/Ion pH/ORP/Ion
F-54 pH/ORP Conductivity
F-55 pH/ORP/Ion Conductivity
