Chapter 13 ANALOG OUTPUT

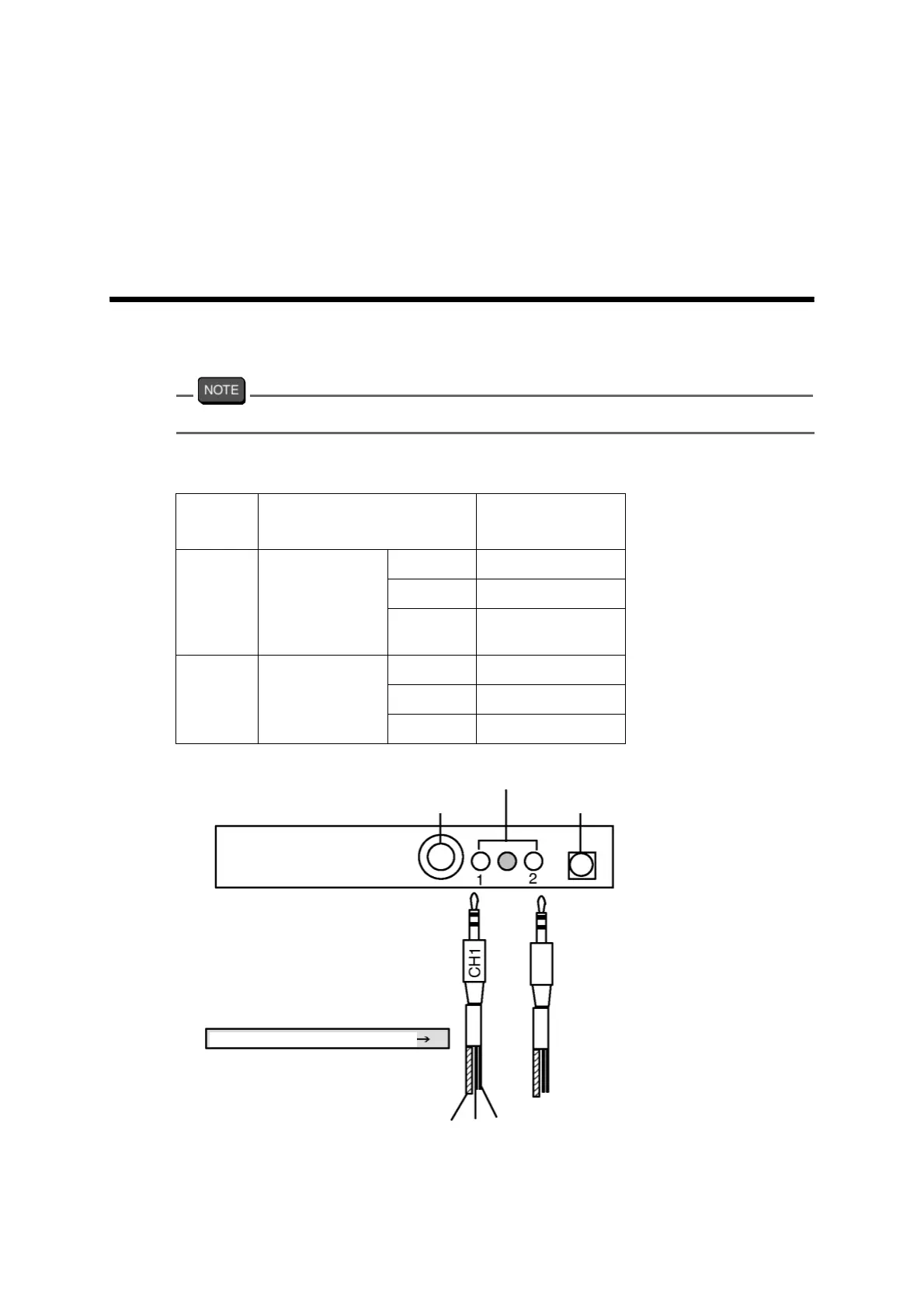

13.1 Output Terminal Connection
168 HORIBA
Chapter 13 ANALOG OUTPUT
13.1 Output Terminal Connection
From the output terminal at the rear of meter, the voltage output for the measurement values
and temperature data, and the open drain output for the alarm set can be obtained.
The analog (alarm) output cable is optional.
● F-52
Terminal
No.
Connection cable Output
1 ForCH1 Shield CH1Ground
Red CH1Temperature
White CH1 Measurement
data
2 ForAlarm Shield Alarmground
Red CH1Alarm
White −
BNC connector
Shield
White Red
Alarm
Exclusive cable for analog output
Serial communication connector
Analog output terminal
