Chapter 1 Overview
1.5 Assembling Electrode Stand
F-52, 53, 54, 55 11

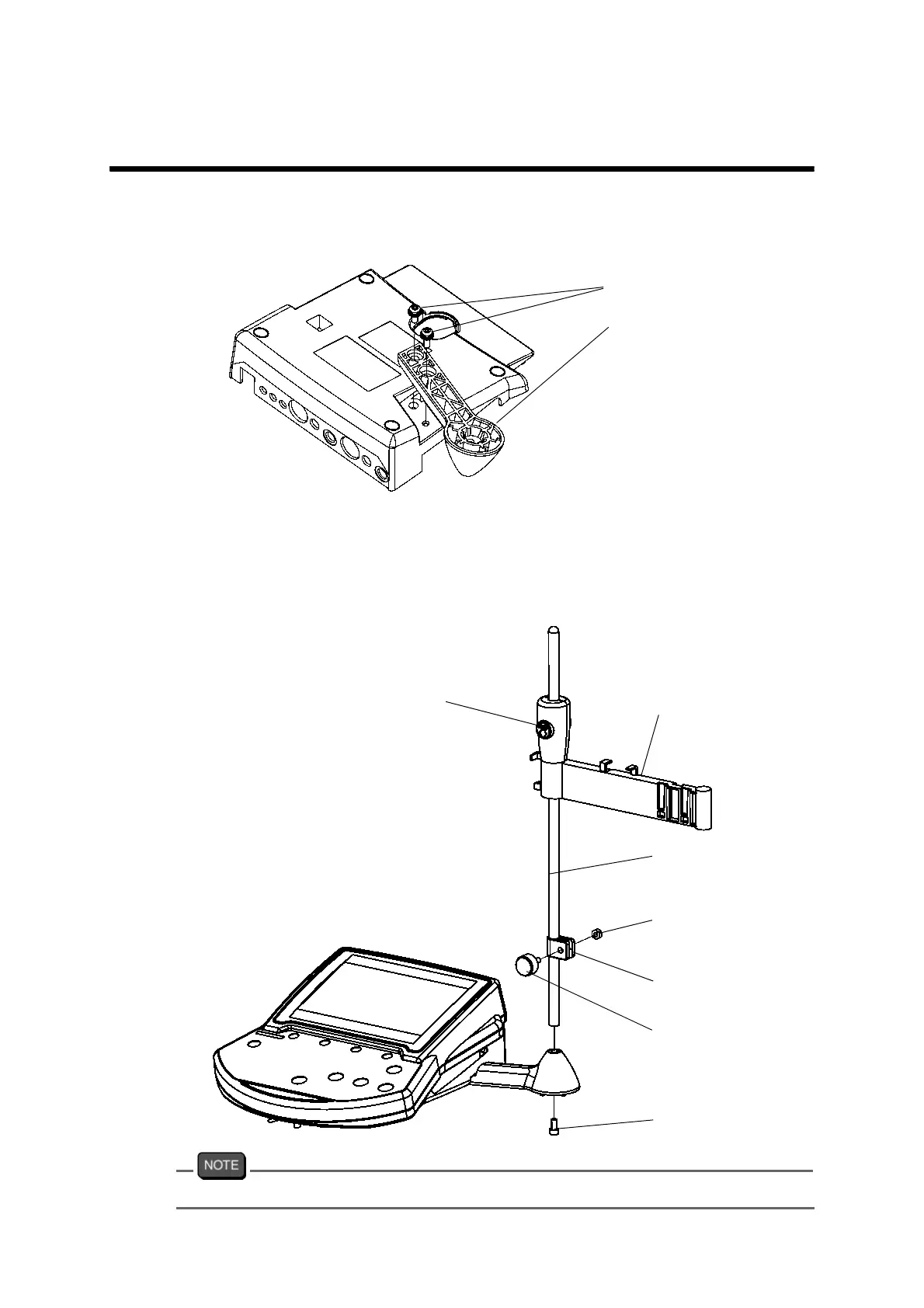

1.5 Assembling Electrode Stand
Assemble the electrode stand in the following procedure.
1. Attach the base to the bottom of the meter by 2 screws.
2. Attach the stand to the base by the fixing screw.
(At the shipment, the stand is already attached.)
3. Attach the stopper and the electrode clamp to the stand by this order.
(At the shipment, the stopper and the electrode clamp are already attached.)
* The stopper is used to fix the electrode clamp to an optimum position at the measurement.
Screws
Base
Stand
Nut
Electrode clamp
Knurled screw
Fixing screw
Stopper*
Push this button to adjust
the height.
