NAVI F-52 - Printout in CAL Mode

Chapter 14 PRINTER
14.4 Sample Printout
F-52, 53, 54, 55 181
14.4.4 Printout in CAL mode

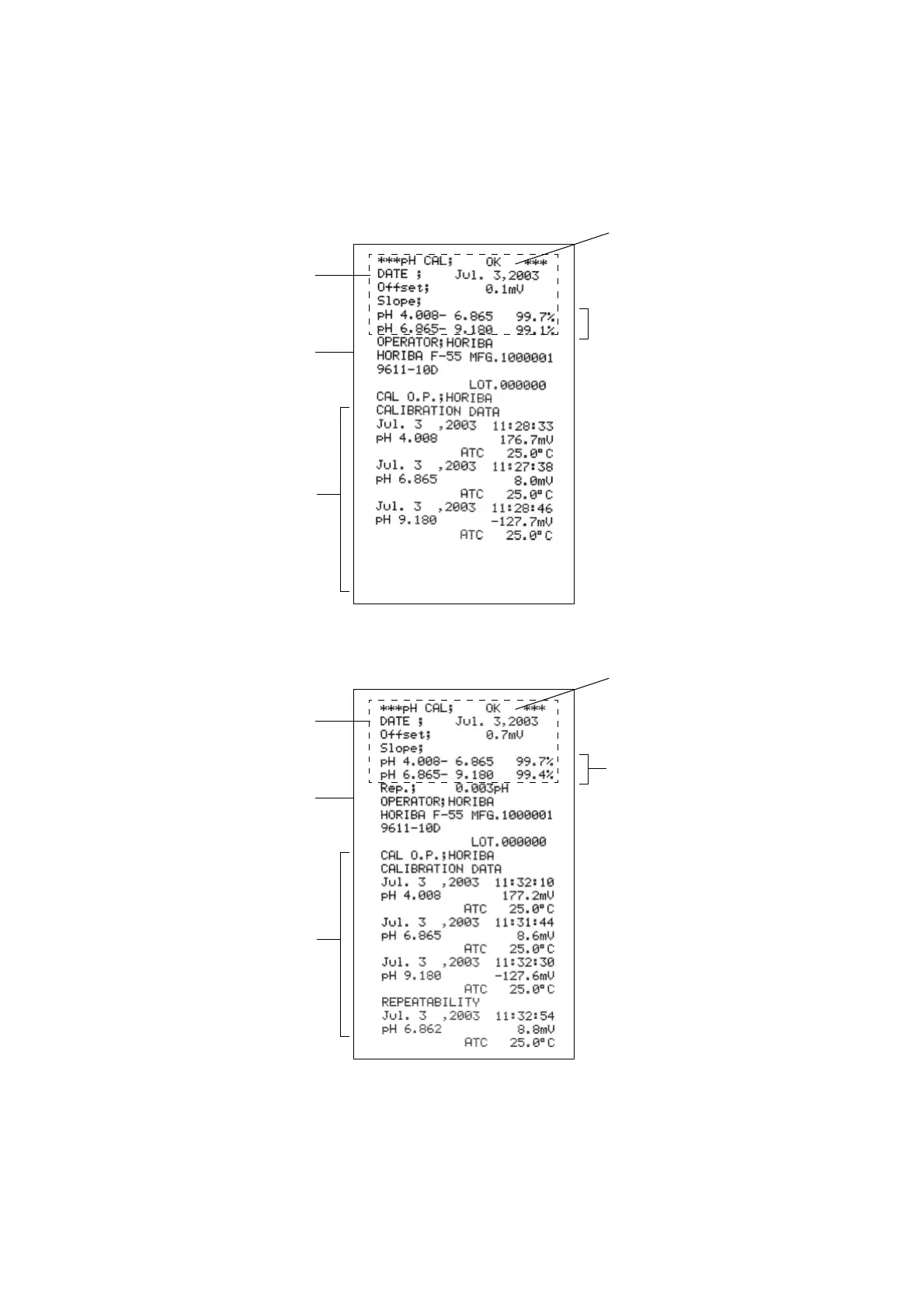

● Printout in pH CAL mode (without repeatability check data)
● Printout in pH CAL mode (with repeatability check data)
Electrode status:
“OK”
“CHECK”
“ERROR”
EXACT printout
BRIEF printout
Sensitivity display
Standard solution value is dis-
played
No calibration/1-point calibra-
tion: None
2-point calibration: 1st item
3-point calibration: 2nd item
4-point calibration: 3rd item
5-point calibration: 4th item
Std.solution and potential:
● Up to 5-point CAL
Electrode status:
“OK”
“CHECK”
“ERROR”
EXACT printout
BRIEF printout
Sensitivity display
Standard solution value is dis-
played
No calibration/1-point calibra-
tion: None
2-point calibration: 1st item
3-point calibration: 2nd item
4-point calibration: 3rd item
5-point calibration: 4th item
Displayed from acid side
Std.solution and potential:
● Up to 5-point CAL
