NETGEAR S3300 User Manual

Configure System Information
119
S3300 Smart Managed Pro Switch
If the incoming rate of DHCP packets exceeds the value of this object for consecutively
burst interval seconds, the port will be shut down. If this value is N/A, then the burst
interval has no meaning, and rate limiting is disabled.
6. In the Bu
rst Interval (secs) field, specify the burst interval value for rate limiting purposes
on this interface.
If the rate limit is N/A, then the burst interval has no meanin
g and the field displays N/A.
7. Click the Ap
ply button.
Binding Configuration
Use this screen to view, add, and remove static bindings in the DHCP snooping bindings
database and to view or clear the dynamic bindings in the bindings table.
 To configure static DHCP bindings:
1. Select System> Services > DHCP Snoo
ping > Binding Configuration.

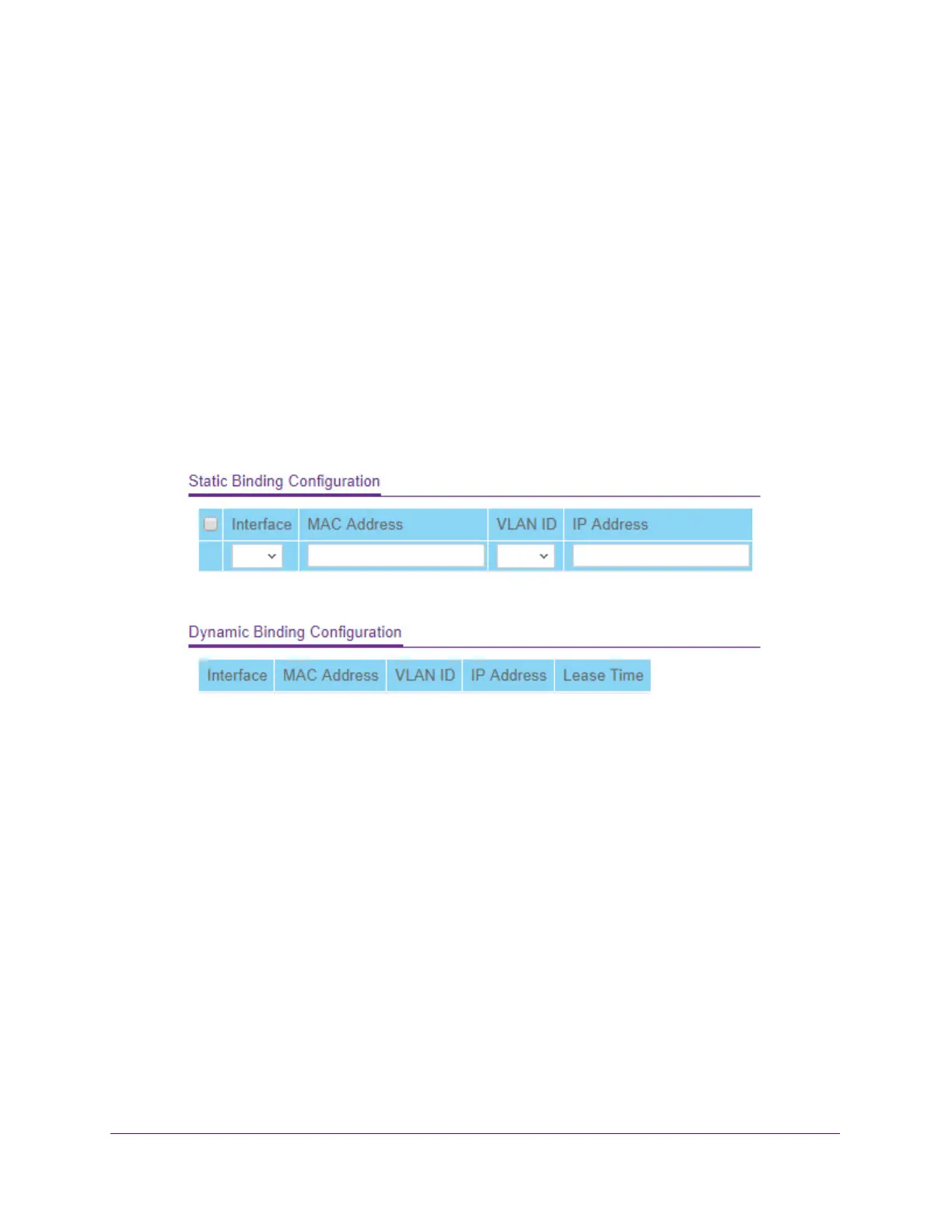

Figure 69. DHCP Snooping Binding Configuration
2. From the Interface list, select the interface on which the DHCP client is authorized.
3. I
n the MAC Address field, specify the MAC address for the binding to be added.
This is the key to the binding database.
4. Fro
m the VLAN ID list, select the ID of the VLAN the client is authorized to use.
5. I
n the IP Address field, specify the IP address of the client.
6. Click the Ad
d button.
The DHCP snooping binding entry is added to the database.

NETGEAR S3300 Specifications

General

Model	NETGEAR S3300
Category	Switch
VLAN Support	Yes
Quality of Service (QoS)	Yes
MAC Address Table Size	16K
Uplink Ports	4 x 10G SFP+
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 2+/Layer 3 Lite
Management	Web-based GUI, SNMP
Dimensions	440 x 257 x 43 mm (17.32 x 10.12 x 1.69 in)
Jumbo Frame Support	Yes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Power Supply	Internal power supply
Power Consumption	Varies by model
Ports	24 or 48 x 10/100/1000BASE-T
Weight	3.60 kg (7.94 lb)
