249
Nomenclature Section 2-3

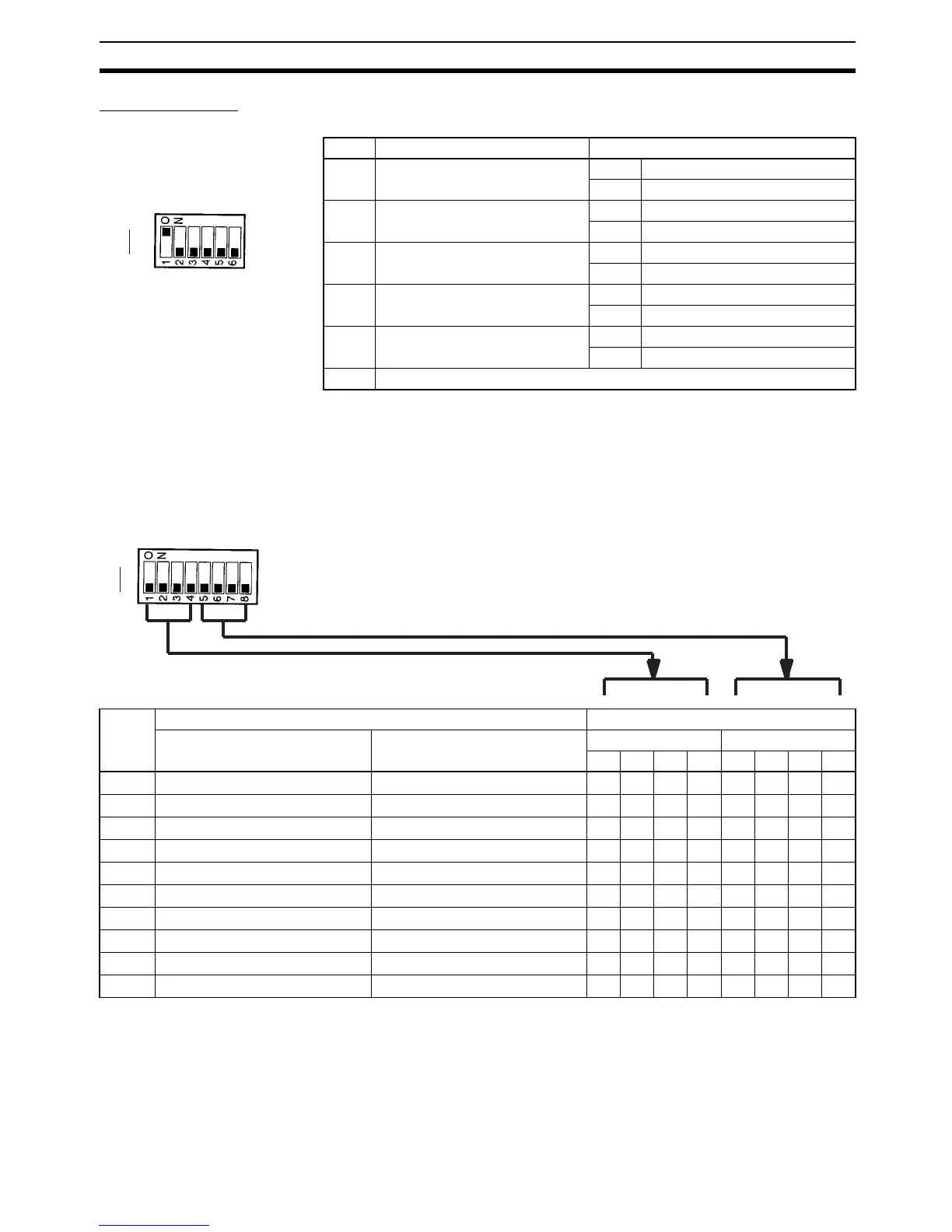

Switch Settings
Set all switches before mounting the Unit. Factory settings are shown in bold
text in the following table.
Note 1. Do not use this setting for platinum resistance thermometers; 0.01
°F rang-
es are not supported.
2. The following ranges must be used when 4-digit BCD is specified:
0.1
°C/°F ranges: –99.9 (F999) to 999.9 (9999)
0.01
°C/°F ranges: –9.99 (F999) to 99.99 (9999)
Note 1. ●: ON, ❍: OFF
2. All pins are turned OFF at the factory.
3. Do not use any settings that are not specified above.
Pin Item Settings
1 Control method ON Advanced PID
OFF ON/OFF
2 Control operation for loops 1 and
3
ON Normal (cooling control)
OFF Reverse (heating control)
3 Control operation for loops 2 and
4
ON Normal (cooling control)
OFF Reverse (heating control)
4 Temperature unit ON °F (See note 1.)
OFF °C
5 Data type ON 4-digit BCD
OFF 16-bit binary (4-digit Hex)
6 Leave this switch set to OFF.
Function DIP Switch (SW1)
ON
OFF
Code
No.
Input type Setting
Units for thermocouples
(CQM1-TC20@)
Units for platinum resistance
thermometers (CQM1-TC30@)
Loops 1 and 3 Loops 2 and 4
12345678
0 K, –200 to 1,300 °C Pt100, –200.0 to 650.0 °C
❍❍❍❍❍❍❍❍
1 K, 0.0 to 500.0 °C JPt100, –200.0 to 650.0 °C
●❍❍❍●❍❍❍
2 J, –100 to 850 °C Pt100, –20.00 to 250.00 °C
❍●❍❍❍●❍❍
3 J, 0.0 to 400.0 °C JPt100, –20.00 to 250.00 °C
●●❍❍●●❍❍
4 T, –200.0 to 400.0 °C Do not set.
❍❍●❍❍❍●❍
5 L, –100 to 850 °C Do not set.
●❍●❍●❍●❍
6 L, 0.0 to 400.0 °C Do not set.
❍●●❍❍●●❍
7 R, 0 to 1,700 °C Do not set.
●●●❍●●●❍
8 S, 0 to 1,700 °C Do not set.
❍❍❍●❍❍❍●
9 B, 100 to 1,800 °C Do not set.
●❍❍●●❍❍●
Input Type DIP Switch (SW2)
Pins 5 to 8: Thermocouple type and range setting for loops 2 and 4
Pins 1 to 4: Thermocouple type and range setting for loops 1 and 3
ON
OFF
